Outlets & Wallplates

Description The Decora Smart Plug-in receptacle is the perfect outlet for any home that needs remote on/off switching of appliances. This Decora Smart Plug-in receptacle can be used to control on/off features of fluorescent lamps, portable fans, holiday lights, kitchen appliances and more. This Smart plug-in receptacle is Z-Wave enabled, allowing you to include/exclude the device in a Z-wave network and turn off connected devices. Benefits 15A Scene Capable Plug-In Appliance Module 120 VAC NEMA 5-15R grounding receptacle LED Locator Use with plug in lamps, small appliances and holiday lighting Supported by most home automation and security systems with Z-Wave energy management technology Motor loads up to 1/2 HP

Description Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications. Features 100% Paintable surface Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications CEC Article 26-702 Compliant UL Certified for Type 3R outdoor enclosures Meets requirements for cold impact testing: -60° F (-51° C) Heavy-duty UV stabilized polycarbonate cover, mounting base, and inserts 1⁄8" (3 mm) thick, neoprene gasket with slits for mounting screws Lockable hasp: All models accept up to 0.19" dia shank Impact rated: 12 lbf. impact test to ensure cover remains intact Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test Technical Information Number of Included Inserts: 2 Hinge Direction: Vertical/Horizontal Is Extra-Duty Rated: Yes Product Dimensions (H x W x D) in: 5.5 x 3.75 x 1.5 in Expandable Depth Mm: 54 Expandable Depth In: 2 1/8 Accepted Cord Size: Max 1x16 AWG Box Type: Single Color Clear: Gray Weatherproof Cover Material: UV Stabilized Plastic Country of Origin (Intermatic): MEXICO Warranty Period: 1-Year limited Document Low Profil Weatherproof Cover Brochure Weatherproof Cover Brochure Technical Sheet

Description The Smartlock Pro Self-Test GFCI Combination Type A/C USB In-Wall Charger offers the trusted safety of Leviton GFCI protection with the advantage of powerful USB charging for Code-compliant use in kitchens, bathrooms, or anywhere GFCI protection is required. Engineered to meet the latest UL standard for auto-monitoring (self-test), Leviton GFCIs periodically conducts an automatic internal test to confirm that protected power is available. If the GFCI detects a problem, 1 or more of the following will occur: power will be denied (trip with the inability to reset), trip with the ability to reset, subject to the next auto-monitoring test cycle or repeatedly trip, or visual and/or audible indication. For additional safety, the device outlets feature tamper-resistant shutters that meet NE 406.12 requirements by blocking access to the contacts unless a 2 or 3 prong plug is inserted. Leviton USB In-Wall Chargers deliver maximum power for faster charging - up to 2X more power. Our smart chip technology recognizes and optimizes the charging requirements of the connected device, ensuring it's getting the right amount of power for fast and efficient charging. Ideal for residential applications that require GFCI protection, such as kitchens, bathrooms and home spas, leaving ample room to power up or charge USB devices. ***DEEP ELECTRICAL BOX REQUIRED*** Features SAFE – Delivers continuous ground fault protection, automatically self-tests to ensure it can respond to a ground fault FAST CHARGING – Smart chip technology provides over 2X the charging power of other GFCI USB outlets for a faster charge CODE REQUIRED – Fulfill NEC® requirements anywhere GFCI protection is needed SIMPLE – Status indicator light provides simple, intuitive feedback INSTALL – Requires extra deep wallbox for installation Technical Information Amperage: 15 A At Rated Voltage: 1 HP Brand: SmartlockPro Color: Black Feature: Self-Test Flammability: UL94, 5VA Grade: Residential/Commercial Specification Grade Grounding: Self-Grounding NEMA: 5-15R Pole: 2 Product Type: GFCI/Outlet/USB Combo Tamper Resistant: Yes Termination: Wire leads (12AWG) Trip Level: Class A, 5mA plus or minus 1mA Type: GFCI/USB A/C Combination Voltage: 125 VAC Wallplate: Not included Warranty: 2-Year Limited Wire: 5 At Rated Voltage: 1 HP Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current Grounding: Self-Grounding Operating Temperature: -10°C to 40°C Ratings: 15A - 125V, 4.8A @ 5V Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current Voltage: 125 VAC Flammability: UL94, 5VA Grounding Wire: Green ground wire Operating Temperature: -10°C to 40°C Body Material: Thermoplastic Color: White Cover Material: Thermoplastic Face Material: Thermoplastic Grade: Residential/Commercial Specification Grade Line Contacts: Brass Double Wipe .031 Thick Notes: Wallplate not included Product ID: Ratings are permanently marked on device Strap Material: Galvanized Steel Terminal ID: Green lead - GND. Line and load both have: Black lead - Hot, White lead - Neutral Yoke: Zinc-Plated Steel Pole: 2 Tamper Resistant: Yes Trip Level: Class A, 5mA plus or minus 1mA Type: GFCI/USB A/C Combination Voltage: 125 VAC Wire: 5 ANSI: Yes CSA C22.2 No. 42: Yes CSA-C22.2 No. 144.1-06: Yes FCC Part 15: Class B Fed Spec WC-596: No Listed: cCSAus NOM: Yes UL 1310: Yes UL 498: Yes Document Safety Product Brochure USB Product Brochure Installation Manual

Description The Leviton W5325-T0W is a weather and tamper resistant duplex receptacle from Leviton's product line of Residential Grade receptacles. This particular model comes in white. You can use this receptacle in industrial, commercial, residential and hospital grades. For over 20 years, tamper-resistant receptacles have been mandated in pediatric care areas. Thanks to tamper resistant receptacles, there is no need to worry about electrical injuries. Features WEATHER-RESISTANT – UV stabilized thermoplastic construction and extra corrosion protection to withstand the rigors of exposure to the elements SAFE – Tamper-Resistant shutters protects from foreign objects being inserted into receptacle to ensure personal safety EASY – Quickwire push-in and side wiring for easy installation OUTDOOR USE – Must be installed in proper weatherproof enclosure with approved caulk and gaskets Technical Information Amperage: 15 A Color: White Device Type: Decora Receptacle Feature: Weather and Tamper-Resistant Type: Decora Duplex Receptacle Weather Resistant: Yes Wire: 3 Amperage: 15 A Grounding: Grounding Pole: 2 Wire: 3 Termination: Quickwire Push-In & Side Torque Range: 14 - 18 in.-lbs CSA: C22.2 No. 42: File 152105; Class 6233-01 NEMA: 5-15R NOM: NOM Certified UL 498: File E13399

Description The simple, intuitive design and effortless operation set a new standard for lighting control. There are no knobs, sliders or buttons, simply touch the LED lightbar anywhere to set the lights to that desired level. Touch the toggle button to turn the lights off, or to recall the last preset level. Benefits Easy-to-use touch control is responsive to the lightest touch and slightest motion Intuitive one-touch operation sets the lights exactly where you need them Modern architectural design adds distinct style to any space Illuminated LED lightbar with softly lit white LEDs indicates the light level Available in a wide variety of colors and finishes, including metal and glass, to complement any décor Advanced microprocessor technology means compatibility with the broadest range of LEDs available on the market Phase selectable technology provides greater flexibility for control of a variety of LED loads (ELV, LED drivers, and screw-in) LED+ Technology minimizes problems with screw-in LEDs like flicker, shimmer, and pop-on seen with other dimmers Technical Information Power Capacity: 250 W Dimmable LED 600 W Incandescent/Halogen 400 VA (300 W) Magnetic Low-Voltage with Halogen based lamps 3.3 A (400 VA) Dimmable Fluorescent 2 3.3 A (400 W) Hi-lume 1% 2-wire LED driver (10 driver maximum) Voltage: 120 Vac 60 Hz Typical Power Consumption: 0.1W Ambient temperature operating range: 32°F to 104°F (0°C to 40°C) Relative Humidity: 0% to 90% non-condensing Power failure memory: Yes Warranty: 1 year limited warranty Wallplate: White included Documents User's Manual

Description This Leviton Screwless Wallplate (Light Almond) is durable and easy to install. Their modern look will make your rooms very chic. Installing them is so simple, it is the perfect item to quickly upscale your home. Benefits Screwless, snap-on design for contemporary architectural styling Complete kit includes screwless snap-on wallplate and subplate Constructed of durable polycarbonate to withstand abuse Subplate provides an easy, convenient wallplate installation with proprietary flat head combination head screws held captive Accent any wall covering with wide selection of colors Designed with top and bottom ratchets on single/multi-gang configurations and side ratchets on multi-gang configurations for a secure fit 1-6 Gang screwless wallplates each paired with a dedicated subplate for fast and easy installation Backed by Leviton’s Limited Ten-Year Warranty Technical Information Other Colors Available: White, Grey, Black, Brown, Ivory, Light Almond Gang: 2 Material: Polycarbonate Mount: Snap-On Size: Standard Standards and Certifications: ETL Type: Screwless Warranty: 10-Year Limited Document Product Bulletin

Description This Leviton's combo USB Charger/Receptacle (Brown) is super convenient! No more searching for charging adapters. Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs. The two built-in high powered charging ports deliver a combined total of 30W charge on a single port. Benefits The most advanced USB in-wall charger on the market with up to 2X the charging power with PD-enabled devices (No data transfer capability) Up to 30W charge when PD-enabled device connected to single port. Up to 15W charge per port (30W total) when both USB ports are connected to devices. Examples of maximum charging outputs are: Single port connected to PD-enabled device: 15VDC@2A (30W) or 9VDC@3A (27W) Single port connected to non-PD device: 5VDC@3A (15W) Both ports connected to devices (PD or non-PD): 5VDC@3A each (up to 30W total) Charges most Type-C devices as well as Type A devices (adapter required) Shallowest profile on the market for ease of installation Smart chip recognizes and optimizes the charging requirements of individual devices Built-in overcurrent protection helps protect the electronics from receiving too much power, which can damage the device Internal thermo regulator prevents the electronics from overheating USB Ports tested to meet the industry requirement to withstand over 10,000 insertions Compatible with USB 3.1, 3.0, 2.0, 1.1 devices Type-C USB Ports enable cables to be inserted in either direction Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device. Compatible with Decora® wallplates and Decora Plus™ screwless wallplates Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately No data transfer capability Technical Data Amperage: 15A Other Colors Available: White, Black, Grey, Brown, Ivory, Light Almond Grade: Residential/Commercial Specification Grade NEMA: 5-15R Product Type: Outlet/USB Combo Type: Type C/C with PD Duplex Receptacle Voltage: 125VAC Wallplate: NOT INCLUDED Documents Dimensional Drawing Instruction Sheet Product Brochure Product Bulletin FAQs About Power Delivery FAQs About USB Charger Devices

Description This Leviton's combo USB Charger/Receptacle (Brown) is super convenient! No more searching for charging adapters. Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs. The two built-in high powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power. Benefits Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more Smart chip technology recognizes and optimizes the charging requirements of individual devices including Apple, Samsung, Nexus, Pixel and more One Type A Port and one Type-C Port; combined total of 5.1A of charging power: - Type-C Port can charge maximum 3 Amps @ 5V - Type A Port can charge maximum 2.4 Amps @ 5V Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects USB Ports tested to withstand over 10,000 insertions Charges most Type A and Type-C USB powered devices Type-C Port permits the cables to be inserted easily in either direction Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device Compatible with USB 3.1, 3.0, 2.0, 1.1 devices No data transfer capability Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately Technical Information Amperage: 15 A Other Colors available: White, Black, Grey, Brown, Ivory, Light Almond Grade: Residential/Commercial Specification Grade NEMA: 5-15R Product Type: Outlet/USB Combo Type: Type A/C Duplex Receptacle Voltage: 125VAC Wallplate: NOT INCLUDED Documents Dimensional Data Instruction Sheet Product Brochure Product Bulletin The Smart Way To Choose In-Wall USB Chargers FAQs

Description This Leviton's combo USB Charger/Receptacle (Brown) is super convenient! No more searching for charging adapters. Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs. The two built-in high powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power! Benefits Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more Smart chip technology recognizes and optimizes the charging requirements of individual devices including Apple, Samsung, Nexus, Pixel and more Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects USB Ports tested to withstand over 10,000 insertions Charges most Type A and Type-C USB powered devices Type-C Port permits the cables to be inserted easily in either direction Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device Compatible with Decora® wallplates and Decora Plus™ screwless wallplates Compatible with USB 3.1, 3.0, 2.0, 1.1 devices No data transfer capability Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately Technical information Amperage: 20A Other Colors Available: White, Black, Gray, Brown, Ivory, Light Almond Grade: Residential/Commercial Specification Grade NEMA: 5-20R Product Type: Outlet/USB Combo Type: Type A/C Duplex Receptacle Voltage: 125vAC Wallplate: NOT INCLUDED Documents Dimensional Data Instruction Sheet Product Brochure Product Bulletin The Smart Way To Choose In-Wall USB Chargers FAQs

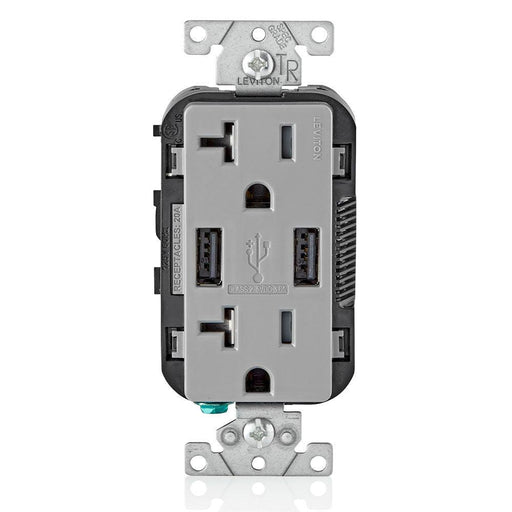

Description This Leviton's combo USB Charger/Receptacle (Grey) is super convenient! No more searching for charging adapters. Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs. The two built-in high powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power! Benefits Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more Smart chip technology recognizes and optimizes the charging requirements of individual devices including Apple, Samsung, Nexus, Pixel and more Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects USB Ports tested to withstand over 10,000 insertions Charges most Type A and Type-C USB powered devices Type-C Port permits the cables to be inserted easily in either direction Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device Compatible with Decora® wallplates and Decora Plus™ screwless wallplates Compatible with USB 3.1, 3.0, 2.0, 1.1 devices No data transfer capability Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately Technical information Amperage: 20A Other Colors Available: White, Black, Gray, Brown, Ivory, Light Almond Grade: Residential/Commercial Specification Grade NEMA: 5-20R Product Type: Outlet/USB Combo Type: Type A/C Duplex Receptacle Voltage: 125vAC Wallplate: NOT INCLUDED Documents Dimensional Data Instruction Sheet Product Brochure Product Bulletin The Smart Way To Choose In-Wall USB Chargers FAQs

Description Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications. Features Complies with 2020 NEC Article 314.15 for damp and wet locations UL Certified for Type 3R outdoor enclosures Meets requirements for cold impact testing: -60° F (-51° C) Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts 1⁄8" (3 mm) thick neoprene gasket with slits for mounting screws Six inserts provided with all models that allow each model to meet multiple installations (up to 70 configurations) Max cord size: (2) #14 AWG or (1) #12 AWG, WP1250 (2) #14 AWG or (1) #10 AWG Warranty: 1-year limited Technical Information Number of Included: Inserts 6 Insert Types Included: WP217 Hinge Direction: Vertical Is Extra-Duty Rated: No Product Dimensions (H x W x D) in: 5 1/2 x 5 x 2 1/4 in Accepted Cord Size: Max 2x14 AWG; 1x12 AWG Box Type: Double Color: Clear Weatherproof Cover Material: UV Stabilized Plastic Country of Origin (Intermatic): MEXICO Warranty Period: 1-Year limited Document Brochure Technical Information Instruction

Description Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications. Features Complies with 2020 NEC Article 314.15 for damp and wet locations UL Certified for Type 3R outdoor enclosures Meets requirements for cold impact testing: -60° F (-51° C) Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts 1⁄8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws Three inserts provided with all models that allow each model to meet multiple installations (up to 8 configurations) Max cord size: (2) #14 AWG or (1) #12 AWG Warranty: 1-year limited Technical Information Number of Included Inserts: 3 Insert Types Included: WP17 Hinge Direction: Vertical Is Extra-Duty Rated: No Product Dimensions (H x W x D) in: 5 1/2 x 3 4/5 x 3 1/8 in Accepted Cord Size Max: 2x14 AWG; 1x12 AWG Box Type: Single Color: Clear Weatherproof Cover Material: UV Stabilized Plastic Unit Carton Dimensions (H x W x L) in: 8.13 x 5.5 x 4.13 in Country of Origin (Intermatic): MEXICO Warranty Period: 1-Year limited Document Brochure Technical Sheet Catalogue

Description Access Faster Charging with Power Delivery! Leviton’s line of Power Delivery (PD) compatible USB chargers are engineered and tested for compatibility with more of the newest devices with built-in PD technology: from phones to tablets, laptops and more! Type-C ports and Power Delivery are featured on the latest devices manufactured by Apple® , Samsung® , Google® , Microsoft® and more, making the technology the new standard. Installation Leviton’s Power Delivery compatible USB In-Wall Chargers can replace a standard receptacle for a convenient upgrade and are compatible with non-PD devices as well as USB Type A devices (adapter required). Features POWERFUL – Charge for minutes, enjoy for hours. The most powerful USB charger on the market with 60W of power on a single port INNOVATIVE – USB Type-C or USB-C provides faster charging and is the new standard port on many phones, tablets and laptops ENHANCED SAFETY – Overcurrent protection helps protect electronic devices from over charging/heating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets FAST CHARGING – Smart chip ensures each device gets the power level it needs to charge fast and efficiently Technical Information Amperage: 15 A Brand: Decora Color: Black Grade: Residential/Commercial Specification Grade Grounding: Grounding NEMA: 5-15R Strap Material: Steel Tamper Resistant: Yes Termination: Wire Leads Type: 60W Type C/C with PD Duplex Receptacle Voltage: 125 VAC Wallplate: Included Warranty: 2-Year Limited Wire: 3 Flammability: Rated V-0 per UL 94 Operating Temperature: -10°C to 40°C Environmental Specifications Body Material: Thermoplastic Face Material: Thermoplastic Notes: w/ Wallplate Operating Temperature: -10°C to 40°C Yoke: Zinc-Plated Steel Torque Range: 14 – 18 in.-lbs Type: 60W Type C/C with PD Duplex Receptacle FCC Part 15: Class B Listed: cCSAis NOM: 057 UL 1310: Yes UL 498: Yes Warranty: 2-Year Limited Document USB Product Brochure

Description The Smartlock Pro Self-Test GFCI Combination Type A USB In-Wall Charger offers the trusted safety of Leviton GFCI protection with the advantage of powerful USB charging for Code-compliant use in kitchens, bathrooms, or anywhere GFCI protection is required. Engineered to meet the latest UL standard for auto-monitoring (self-test), Leviton GFCIs periodically conducts an automatic internal test to confirm that protected power is available. If the GFCI detects a problem, 1 or more of the following will occur: power will be denied (trip with the inability to reset), trip with the ability to reset, subject to the next auto-monitoring test cycle or repeatedly trip, or visual and/or audible indication. For additional safety, the device outlets feature tamper-resistant shutters that meet NE 406.12 requirements by blocking access to the contacts unless a 2 or 3 prong plug is inserted. Leviton USB In-Wall Chargers deliver maximum power for faster charging - up to 2X more power. Our smart chip technology recognizes and optimizes the charging requirements of the connected device, ensuring it's getting the right amount of power for fast and efficient charging. Ideal for residential applications that require GFCI protection, such as kitchens, bathrooms and home spas, leaving ample room to power up or charge USB devices. Features SAFE - Delivers continuous ground fault protection, automatically self-tests to ensure it can respond to a ground fault FAST CHARGING - Smart chip technology provides over 2X the charging power of other GFCI USB outlets for a faster charge CODE REQUIRED - Fulfill NEC® requirements anywhere GFCI protection is needed SIMPLE - Status indicator light provides simple, intuitive feedback INSTALL - Requires extra deep wallbox for installation Technical Information Amperage: 20 A At Rated Voltage: 1 HP Brand: SmartlockPro Color: White Feature: Self-Test Flammability: UL94, 5VA Grade: Residential/Commercial Specification Grade Grounding: Self-Grounding Pole: 2 Product Type: GFCI/Outlet/USB Combo Tamper Resistant: Yes Termination: Wire leads (12AWG) Trip Level: Class A, 5mA plus or minus 1mA Type: GFCI/USB Combination Voltage: 125 VAC Wallplate: Not Included Warranty: 2-Year Limited Wire: 5 At Rated Voltage: 1 HP Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current Grounding: Self-Grounding Ratings: 20A - 125V, 4.8A @ 5V Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current Voltage: 125 VAC Flammability: UL94, 5VA Operating Temperature: -10°C to 40°C Material Specifications Body Material: Thermoplastic Color: White Cover Material: Thermoplastic Face Material: Thermoplastic Grade: Residential/Commercial Specification Grade Line Contacts: Brass Double Wipe .031 Thick Notes: Wallplate Not Included Product ID: Stamped on Strap Strap Material: Galvanized Steel Terminal ID: Green lead - GND. Line and load both have: Black lead - Hot, White lead - Neutral Pole: 2 Tamper Resistant: Yes Torque Range: 14-18 lbs. Type: GFCI/USB Combination Voltage: 125 VAC Wire: 5 ANSI: Yes CSA C22.2 No. 42: Yes CSA-C22.2 No. 144.1-06: Yes FCC Part 15: Class B Fed Spec WC-596: No Listed: cCSAus NOM: Yes UL 1310: Yes UL 498: Yes Warranty: 2-Year Limited Document Safety Product Brochure USB Product Brochure Installation Manual

Description The Smartlock Pro Self-Test GFCI Combination Type A USB In-Wall Charger offers the trusted safety of Leviton GFCI protection with the advantage of powerful USB charging for Code-compliant use in kitchens, bathrooms, or anywhere GFCI protection is required. Engineered to meet the latest UL standard for auto-monitoring (self-test), Leviton GFCIs periodically conducts an automatic internal test to confirm that protected power is available. If the GFCI detects a problem, 1 or more of the following will occur: power will be denied (trip with the inability to reset), trip with the ability to reset, subject to the next auto-monitoring test cycle or repeatedly trip, or visual and/or audible indication. For additional safety, the device outlets feature tamper-resistant shutters that meet NE 406.12 requirements by blocking access to the contacts unless a 2 or 3 prong plug is inserted. Leviton USB In-Wall Chargers deliver maximum power for faster charging - up to 2X more power. Our smart chip technology recognizes and optimizes the charging requirements of the connected device, ensuring it's getting the right amount of power for fast and efficient charging. Ideal for residential applications that require GFCI protection, such as kitchens, bathrooms and home spas, leaving ample room to power up or charge USB devices. Features SAFE – Delivers continuous ground fault protection, automatically self-tests to ensure it can respond to a ground fault FAST CHARGING – Smart chip technology provides over 2X the charging power of other GFCI USB outlets for a faster charge CODE REQUIRED – Fulfill NEC requirements anywhere GFCI protection is needed SIMPLE – Status indicator light provides simple, intuitive feedback INSTALL – Requires extra deep wall box for installation Technical Information Amperage: 15 A At Rated Voltage: 1 HP Brand: SmartlockPro Color: White Feature: Self-Test Flammability: UL94, 5VA Grade: Residential/Commercial Specification Grade Grounding: Self-Grounding Pole: 2 Product Type: GFCI/Outlet/USB Combo Tamper Resistant: Yes Termination: Wire leads (12AWG) Trip Level: Class A, 5mA plus or minus 1mA Type: GFCI/USB Combination Voltage: 125 VAC Wallplate: Not Included Warranty: 2-Year Limited Wire: 5 At Rated Voltage: 1 HP Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current Grounding: Self-Grounding Ratings: 15A - 125V, 4.8A @ 5V Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current Voltage: 125 VAC Flammability: UL94, 5VA Operating Temperature: -10°C to 40°C Body Material: Thermoplastic Color: White Cover Material: Thermoplastic Face Material: Thermoplastic Grade: Residential/Commercial Specification Grade Line Contacts: Brass Double Wipe .031 Thick Product ID: Stamped on Strap Strap Material: Galvanized Steel Terminal ID: Green lead - GND. Line and load both have: Black lead - Hot, White lead - Neutral Pole: 2 Tamper Resistant: Yes Torque Range: 14-18 lbs. Type: GFCI/USB Combination Voltage: 125 VAC Wire: 5 ANSI: Yes CSA C22.2 No. 42: Yes CSA-C22.2 No. 144.1-06: Yes FCC Part 15: Class B Fed Spec WC-596: No Listed: cCSAus NOM: Yes UL 1310: Yes UL 498: Yes Warranty: 2-Year Limited Document Safety Product Brochure USB Product Brochure Installation Manual

Description The new Leviton Extra Duty While-In-Use Covers are ruggedly constructed to protect from moisture, debris and insects, while providing easy access to receptacles. These non-metallic covers are available in both vertical and horizontal configurations for a secure fit and neat appearance when mounted. The UV resistant polycarbonate cover and base protect wiring devices from the elements without breaking, cracking or discoloration. The 5982-UCL is clear with a gray base. They are ideal for use with lawn equipment, pools, hot tubs, holiday and landscape lighting, outdoor entertainment systems, BBQ, fountains, vending machines and other outdoor electrical applications. Features Convenient - ruggedly constructed to protect from moisture, debris, and insects, while providing easy access to receptacles. Durable - UV resistant polycarbonate cover and base protect wiring devices from the elements without breaking, cracking or Compatible - designed for use with Leviton GFCI/Decora outlets Ideal - for all outdoor electrical applications Technical Information Color: Clear Device Type: Extra Duty While-In-Use Feature: Extra Duty, NEC Compliant Gang: 2 Material: Polycarbonate Mount: Device Orientation: Vertical Size: Standard Standards and Certifications: cULus Type: While-In-Use Warranty: 2-Year Limited Document Product Brochure Installation Manual

Description This Leviton Screwless Wallplate (Light Almond) is durable and easy to install. Their modern look will make your rooms very chic. Installing them is so simple, it is the perfect item to quickly upscale your home. Benefits Screwless, snap-on design for contemporary architectural styling Complete kit includes screwless snap-on wallplate and subplate Constructed of durable polycarbonate to withstand abuse Subplate provides an easy, convenient wallplate installation with proprietary flat head combination head screws held captive Accent any wall covering with wide selection of colors Designed with top and bottom ratchets on single/multi-gang configurations and side ratchets on multi-gang configurations for a secure fit 1-6 Gang screwless wallplates each paired with a dedicated subplate for fast and easy installation Backed by Leviton’s Limited Ten-Year Warranty Technical Information Other Colors Available: White, Grey, Black, Brown, Ivory, Light Almond Gang: 4 Material: Polycarbonate Mount: Snap-On Size: Standard Standards and Certifications: ETL Type: Screwless Warranty: 10-Year Limited Document Product Bulletin

Description This Leviton's combo USB Charger/Receptacle (Light Almond) is super convenient! No more searching for charging adapters. Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs. The two built-in high powered charging ports with 3.6A of charging power. Benefits Perfect for use in residential applications such as kitchens, bedrooms and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles and college dorm rooms Smart chip recognizes and optimizes the charging requirements of individual devices Tested to withstand over 10,000 insertions. Compatible with USB 3.1, 3.0, 2.0, 1.1 devices Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices Easy to install. Can replace existing outlets No data transfer capability Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately Technical Information Amperage: 15A Grade: Residential/Commercial Specification Grade HorsePower Rating: 15A -1/2HP NEMA: 5-15R Product Type: Outlet/USB Combo Type: Type A/A Duplex Receptacle Voltage: 125VAC Wallplate: NOT INCLUDED Documents Dimensional Data Instruction Sheet Product Brochure Product Bulletin The Smart Way To Choose In-Wall USB Chargers FAQs

Description This Leviton's combo USB Charger/Receptacle (Ivory) is super convenient! No more searching for charging adapters. Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs. The two built-in high powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power. Benefits Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more Smart chip technology recognizes and optimizes the charging requirements of individual devices including Apple, Samsung, Nexus, Pixel and more One Type A Port and one Type-C Port; combined total of 5.1A of charging power: - Type-C Port can charge maximum 3 Amps @ 5V - Type A Port can charge maximum 2.4 Amps @ 5V Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects USB Ports tested to withstand over 10,000 insertions Charges most Type A and Type-C USB powered devices Type-C Port permits the cables to be inserted easily in either direction Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device Compatible with USB 3.1, 3.0, 2.0, 1.1 devices No data transfer capability Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately Technical Information Amperage: 15 A Other Colors available: White, Black, Grey, Brown, Ivory, Light Almond Grade: Residential/Commercial Specification Grade NEMA: 5-15R Product Type: Outlet/USB Combo Type: Type A/C Duplex Receptacle Voltage: 125VAC Wallplate: NOT INCLUDED Documents Dimensional Data Instruction Sheet Product Brochure Product Bulletin The Smart Way To Choose In-Wall USB Chargers FAQs

Description Leviton's LED Sensor Guide Light Series unites their quality Decora wiring devices with energy-saving LED Guide Lights for a smart combination. The Sensor LEDs turn ON and OFF automatically in Switch/Guide Light or Tamper-Resistant Receptacle/Guide Light combinations, as well as a full LED Guide Light version that's perfect for hallways and stairways. ***Wallplate not included Features Meter Distance to Light (In): 6 Current (mA): 3.7 Light Output (LUX): 4 Technical Information Amperage: 15 A Color: White Color Temperature: ~6000K NEMA: 5-15R Product Type: Outlet/Guide Light Combo Torque Range: 14 – 18 in.-lbs Type: Receptacle with LED Guide Light Document Brochure Installation Manual

Description Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications. Features Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications CEC Article 26-702 Compliant UL Certified for Type 3R outdoor enclosures Meets requirements for cold impact testing: -60° F (-51° C) Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts 1⁄8" (3 mm) thick, neoprene gasket with slits for mounting screws Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank Impact rated: 12 lbf. impact test to ensure cover remains intact Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test Warranty: 1-year limited Technical Information Number of Included Inserts: 3 Insert Types Included: WP17 Hinge Direction: Vertical/Horizontal Is Extra-Duty Rated: Yes Product Dimensions (H x W x D) in: 6 1/3 x 4 2/3 x 3 5/8 in Accepted Cord Size: Max 2x14 AWG; 1x12 AWG Box Type: Single Color Clear: Gray Weatherproof Cover Material: UV Stabilized Plastic Country of Origin (Intermatic): MEXICO Warranty Period: 1-Year limited Document Sell sheet Technical Sheet Weatherproof Cover Brochure Extra Duty Weatherproof Cover Brochure

Description Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications. Features Complies with 2020 NEC Article 314.15 for damp and wet locations UL Certified for Type 3R outdoor enclosures Meets requirements for cold impact testing: -60° F (-51° C) Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts 1⁄8" (3 mm) thick neoprene gasket with slits for mounting screws Six inserts provided with all models that allow each model to meet multiple installations (up to 70 configurations) Max cord size: (2) #14 AWG or (1) #12 AWG, WP1250 (2) #14 AWG or (1) #10 AWG Warranty: 1-year limited Technical Information Number of Included Inserts: 6 Insert Types Included: WP217 Hinge Direction: Vertical Is Extra-Duty Rated: No Product Dimensions (H x W x D) in: 5 1/2 x 5 x 3 1/8 in Accepted Cord Size: Max 2x14 AWG; 1x12 AWG Box Type: Double Color: Clear Weatherproof Cover Material: UV Stabilized Plastic Country of Origin (Intermatic): MEXICO Warranty Period: 1-Year limited Document Brochure Instruction Technical Sheet

Description Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications. Features Complies with 2020 NEC Article 314.15 for damp and wet locations UL Certified for Type 3R outdoor enclosures Meets requirements for cold impact testing: -60° F (-51° C) Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts 1⁄8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank, except WP3100C & WP3103C accept up to 1⁄8" (3 mm) dia shank Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations) Max cord size: (2) #14 AWG or (1) #12 AWG Mounts vertically or horizontally Warranty: 1-year limited Technical Information Number of Included Inserts: 3 Insert Types Included: WP17 Hinge Direction: Vertical/Horizontal Is Extra-Duty Rated: No Product Dimensions (H x W x D) in: 5 3/4 x 4 x 3 5/8 in Accepted Cord Size: Max 2x14 AWG; 1x12 AWG Box Type: Single Color: Clear Weatherproof Cover Material:UV Stabilized Plastic Country of Origin (Intermatic): MEXICO Warranty Period: 1-Year limited Document Brochure Technical Information Instruction

Description Die-Cast In-Use Aluminum Weatherproof Covers are extra-duty rated and easy to install. Heavy-duty die-cast aluminum construction ensures long-lasting durability. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications. Features Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications CEC Article 26-702 Compliant UL Certified for Type 3R outdoor enclosures Meets requirements for cold impact testing: -60° F (-51° C) Heavy-duty die-cast aluminum cover and mounting base with UV stabilized polycarbonate inserts 1⁄8" (3 mm) thick, neoprene gasket with slits for mounting screws Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank Impact rated: 12 lbf. impact test to ensure cover remains intact Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test Warranty: 1-year limited Technical Information Number of Included Inserts: 6 Insert Types Included: WP217 Hinge Direction: Vertical Is Extra-Duty Rated: Yes Product Dimensions (H x W x D) in: 6 3/8 x 5 5/8 x 3 1/8 in Accepted Cord Size: Max 2x12 AWG Box Type: Double Color: Gray Weatherproof Cover Material: Die-Cast Aluminum Standards and Certifications: UL Certification cULus CSA Certification cCSAus Country of Origin (Intermatic): CHINA Warranty Period: 1-Year limited Document Extra-Duty Die Cast Cover Brochure Technical Information Instruction Weatherproof Cover Brochure

Description The Leviton W5320-T0W is a weather and tamper resistant duplex receptacle from Leviton's product line of Residential Grade receptacles. This particular model comes in white. You can use this receptacle in industrial, commercial, residential and hospital grades. For over 20 years, tamper-resistant receptacles have been mandated in pediatric care areas. Thanks to tamper resistant receptacles, there is no need to worry about electrical injuries. Features WEATHER-RESISTANT – UV stabilized thermoplastic construction and extra corrosion protection to withstand the rigors of exposure to the elements SAFE – Tamper-Resistant shutters protects from foreign objects being inserted into receptacle to ensure personal safety EASY – Quickwire push-in and side wiring for easy installation OUTDOOR USE – Must be installed in proper weatherproof enclosure with approved caulk and gaskets Technical Information Amperage: 15 A Blade Type: Straight Blade Color: White Device Type: Duplex Receptacle Feature: Weather and Tamper-Resistant Grounding: Grounding NEMA: 5-15R Pole: 2 Termination: Quickwire Push-In & Side Torque Range: 14 – 18 in.-lbs Type: Standard Duplex Receptacle Voltage: 125 VAC Warranty: 2-Year Limited Weather Resistant: Yes Wire: 3 CSA C22.2 No. 42: File 152105; Class 6233-01 NOM: NOM Certified UL 498: File E13399

Description As a pioneer in the electrical device industry, Leviton is once again the first to introduce Tamper-Resistant versions of their Surge Protective Receptacles. These devices are fully compliant with the NEC 2008 and UL 1449 3rd edition, so you can rest assured that your equipment is protected, as well as your staff and visitors. The low cost of these receptacles, combined with their ease of installation, means they can be placed anywhere you have a standard electrical outlet. So with a small investment, you have the assurance that your equipment is well protected, whether it’s a heart monitor in the emergency room or a computer in your office. Benefits 15A, 125 Volt Tamper-Resistant Shutter Mechanism prevents indicental contact with energized contacts Indicator light provides visual indication that equipment is being protected Duplex version EMI/RFI Noise Filtering Available audible alarm for hidden locations (can be silenced) Back and side-wired design with durable metal mounting strap Point-of-use protection for up to 18,000 amps of surge current total Technical Information Electrical Specifications Amperage: 15 A Current Limiting: Full Rated Current Dielectric Voltage: Withstands 2000V per UL498 Grounding: Self-Grounding Pole: 2 Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current Voltage: 125 VAC Wire: 3 Environmental Specifications Flammability: Rated V-2 per UL 94 Operating Temperature: -40°C to 60°C Material Specifications Body Material: Nylon Clamp Nuts: Zinc-Plated Steel Face Material: Nylon Ground Clips: Brass-Plated Steel Grounding Screw: Brass-Plated Steel Line Contacts: Brass Triple-Wipe Shutter Mechanism: Delrin® Acetal Terminal Screws: Brass-Plated Steel Yoke: Zinc-Plated Steel Mechanical Specifications Product ID: Ratings are permanently marked on device Terminal Accom.: 14-10 AWG Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral Termination: Back or Side Wire Torque Range: 14-16 inch pounds Performance Data Diagnostics: Indicator Light & Audible Alarm Joules Rating: 720 MCOV: 150V rms Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA) Noise Rejection: -30dB at 500kHz-30MHz Nominal Discharge Current Rating: 3kA Short Circuit Current Rating: 5kA VPR: L-N: 600V, L-G: 700V, N-G: 600V Product Features Body Material: Nylon Brand: Decora Plus Color: White Device Type: Duplex Receptacle Outlet Function: Surge Protective Grade: Heavy-Duty Hospital Grade NEMA: 5-15R Standards and Certifications ANSI: C-73 Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3 NEMA: WD-6 NOM: 057 UL498HG: File E13399 Warranty Warranty: 5-Year Limited Document Brochure Specification Sheet Manual

Description Controlling lights, shades and temperature from a mobile device has never been easier or more reliable. Schedule lights to adjust automatically or create your favorite scenes that adjust multiple lights and shades with the press of a button. Enable geofencing to automatically turn lights on/off when you leave or approach home. Installation is easy, the dimmers simply plug into standard outlets and allow you to control up to 2 lamps per dimmer. You can create a 3-way by mounting the included Pico to almost any wall surface without cutting holes or pulling wire, with a Pico wallmount bracket (PICO-WBX-ADAPT sold separately). Works with up to 100W of dimmable LED/CFL light bulbs or 300W incand/halogen bulbs; not rated for low voltage applications. KIT INCLUDES: (1) Caseta Wireless Smart Bridge, (2) Caseta Wireless Plug-In Lamp Dimmers, (2) Pico remote controls, and (2) pedestals. Features PEACE OF MIND Set lights to automatically adjust with changing seasons so your family always comes back to a well-lit home; you can also enable the smart away feature to randomly turn your lights on and off to look like you're home even if you're away MOST CONNECTED Caseta connects with more leading smart home devices including Amazon Alexa, Apple HomeKit, the Google Assistant, Ring, Serena shades and Sonos than any other smart lighting control brand CONTROL YOUR WAY Caseta puts the smarts in the switch so you can control your lights a variety of ways - via the free Lutron app, your voice, or from the switch, you can create personalized schedules to turn on, off or dim lights at set times to best fit your everyday routines or activate favorite lighting scenes with the touch of a button RELIABLY SMART The smart bridge doesn't use Wi-Fi, so you get super-fast, ultra-reliable smart lighting that works right, without slowing your Wi-Fi down with more devices SET IT AND FORGET IT Always keep your smart light functionality; even when the Wi-Fi goes down, there's no need to reset your schedules and scenes or reconnect everything when it comes back online GET MORE, SPEND LESS One Caseta smart switch can control many bulbs at once; make many bulbs smart, even your existing bulbs; get smart control of multiple styles of dimmable LED, incandescent and halogen bulbs Document Caseta Brochure

Description The Swidget product line has been developed to support the easy integration of Home Automation and Smart Home markets with unique and flexible solutions. Adding a Swidget Insert turns the wired device into a powerful and flexible Smart Home device. The interchangeability of the Swidget Inserts ensure that the system can work with any existing or future Smart Home wireless system. The 20A Outlet has the ability to allow interchangeable Swidget Inserts to be installed, removed or replaced - making Swidget the optimal choice for building renovations and new construction. The Swidget 20A Outlet uses a simple interface, making installation easy. Features Universal compatibility to work with all wireless platforms Independent direct power monitoring for each of the two receptacles Wide range of customization and feature options with plug and play Swidget Inserts User-safe with Tamper Resistant outlets and a certified Class 2 power output Technical Information Input power rating: 125VAC, 20A Outlet receptacle configuration: NEMA 5-20R Resistive load rating: 2,400W Motor load rating: 1.0HP Inductive load rating: -- Relay mechanical endurance rating: 2,000,000 cycles (or 548 years @ 10 cycles per day) Wiring type Pre-stripped wire leads (Line/Neutral): #12 AWG (Stranded), Ground screw Testing and code compliance: UL498 / UL1310, CSA C22.2 #42, #223 (Canada and US) Flammability: UL94 5VA Environmental: Indoor installation only Operating temperature: -10 °C to 40 °C (14 ­°F to 104 °F) Insert voltage output: Nominal 5VDC (+/- 5%) Insert DC protection: Class 2 - Current limiting and thermal shutdown protection Insert current output: Constant current maximum 2.0A Document Brochure Data Sheet

Description This Leviton Screwless Wallplate (Ivory) is durable and easy to install. Their modern look will make your rooms very chic. Installing them is so simple, it is the perfect item to quickly upscale your home. Benefits Screwless, snap-on design for contemporary architectural styling Complete kit includes screwless snap-on wallplate and subplate Constructed of durable polycarbonate to withstand abuse Subplate provides an easy, convenient wallplate installation with proprietary flat head combination head screws held captive Accent any wall covering with wide selection of colors Designed with top and bottom ratchets on single/multi-gang configurations and side ratchets on multi-gang configurations for a secure fit 1-6 Gang screwless wallplates each paired with a dedicated subplate for fast and easy installation Backed by Leviton’s Limited Ten-Year Warranty Technical Information Other Colors Available: White, Grey, Black, Brown, Ivory, Light Almond Gang: 4 Material: Polycarbonate Mount: Snap-On Size: Standard Standards and Certifications: ETL Type: Screwless Warranty: 10-Year Limited Document Product Bulletin

Description This Leviton Screwless Wallplate (Brown) is durable and easy to install. Their modern look will make your rooms very chic. Installing them is so simple, it is the perfect item to quickly upscale your home. Benefits Screwless, snap-on design for contemporary architectural styling Complete kit includes screwless snap-on wallplate and subplate Constructed of durable polycarbonate to withstand abuse Subplate provides an easy, convenient wallplate installation with proprietary flat head combination head screws held captive Accent any wall covering with wide selection of colors Designed with top and bottom ratchets on single/multi-gang configurations and side ratchets on multi-gang configurations for a secure fit 1-6 Gang screwless wallplates each paired with a dedicated subplate for fast and easy installation Backed by Leviton’s Limited Ten-Year Warranty Technical Information Other Colors Available: White, Grey, Black, Brown, Ivory, Light Almond Gang: 4 Material: Polycarbonate Mount: Snap-On Size: Standard Standards and Certifications: ETL Type: Screwless Warranty: 10-Year Limited Document Product Bulletin
