Outdoor Lighting

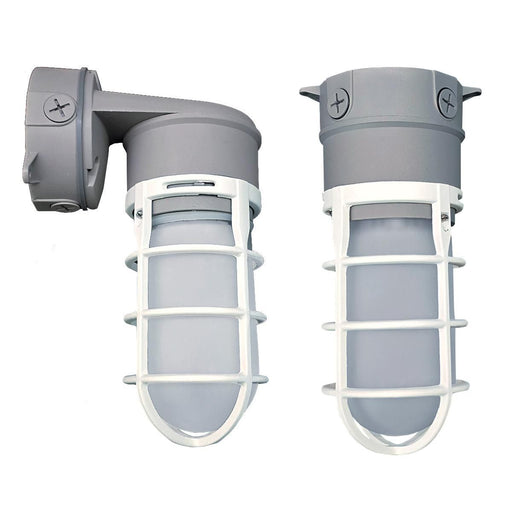

Description Illuminate any space with this versatile aluminum box and glass guard wall fixture. Ideal for outdoor, industrial and commercial applications, this fixture is weatherproof and made of die-cast aluminum, to ensure longevity. Benefits Threaded, precision die-cast aluminum fitter with a silicone gasket between wiring box and the fitter Precision die-cast aluminum box with four 1/2" NPT plugs installed and one open 1/2" threaded conduit opening on the top Porcelain medium base socket with nickel-plated screw shell Clear glass with threaded neck Threaded die-cast aluminum guard with a set screw for locking the guard in place Lamp not included Technical Information Model: DVBKS100CG Finish: Aluminum Maximum Wattage: 100 watts incandescent Certifications: UL, for wet locations Documents Specification sheet

Description The ORA1-LED is a fully adjustable multi-purpose exterior fixture that replaces traditional wall packs or floods. Benefits Ideal for townhouses, condos, perimeter lighting, and shopping malls Fixture head can be aimed down for dark sky compliance, or aimed out as needed Sleek, elegant design Three options available Yoke, Knuckle & Wall Mount Technical information Mounting option: Wall Mounted Watts: 16W Lumens: 1510 Efficacy: 97 lumens Voltage: 120-277V Colour Temperature: 4000K Material: Aluminum Finish: Bronze Certifications: UL, IP65, DLC Documents Specification sheet

Description The ORA3-LED is a fully adjustable multi-purpose exterior fixture that replaces traditional wall packs or floods. Benefits Ideal for townhouses, condos, perimeter lighting, and shopping malls Fixture head can be aimed down for dark sky compliance, or aimed out as needed Sleek, elegant design Three options available Yoke, Knuckle & Wall Mount Technical information Mounting option: Wall Mount Watts: 50W Lumens: 5470 Efficacy: 111 lumens/w Voltage: 120-277V Colour Temperature: 4000K Material: Aluminum Finish: Bronze Certifications: UL, IP65, DLC Documents Specification Sheet

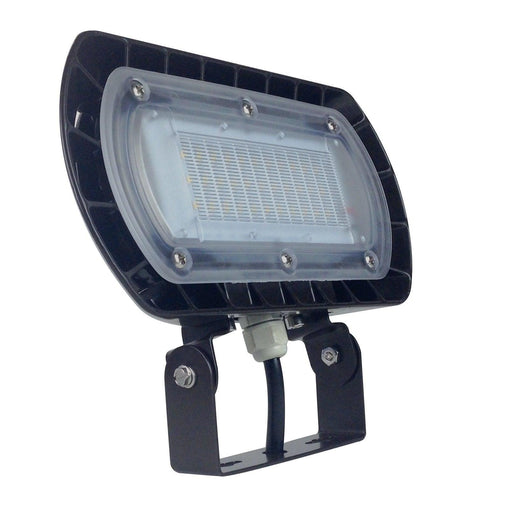

Description The ORA2-LED is a fully adjustable multi-purpose exterior fixture that replaces traditional wall packs or floods. Benefits Ideal for townhouses, condos, perimeter lighting, and shopping malls Fixture head can be aimed down for dark sky compliance, or aimed out as needed Sleek, elegant design Three options available Yoke, Knuckle & Wall Mount Technical information Mounting option: Knuckle Watts: 30W Lumens: 3359 Efficacy: 112 lumens Voltage: 120-277V Colour Temperature: 4000K Material: Aluminum Finish: Bronze Certifications: UL, IP65, DLC Documents Specification sheet Installation Manual

Description These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting. Features Mechanical bimetal switch with Cadmium Sulfide photocell Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures Delay feature prevents unwanted OFF switching 3/8"-18 NPSM, 3/4" long stem with locking nut and washer gasket Technical Information Sensor Time Delay: 30 sec to 90 sec Photocell Type: Cadmium Sulfide Photo Control Switch Type: Mechanical Bimetal Fail Mode: ON Activation On: 1 to 5 fc Activation Off: 3 to 15 fc Photocontrol Type: Thermal Application Compatibilities: HID; Fluorescent; Incandescent Photocontrol Style: Button Photocontrol Sensor Location: Front Product Height (in): 1 13/16 Product Height (mm): 46 Product Width (in): 15/16 Product Width (mm): 23.8 Product Depth (in): 13/16 Product Depth (mm): 20.6 Wire Lead Length (in): 9 Wire Lead Length (mm): 228.6 Wire Size Max: #18 AWG Cover Color: Gray Housing Material: Polycarbonate Load Ratings Magnetic Ballast Range(s): 8.3 A, 1000 VA Tungsten Range(s): 15 A, 1800 W Wiring Option: Wire leads Input Voltage Range(s): 120 VAC, 50/60 Hz Expected Lifetime (Years): 5 Expected Lifetime (Operations): 3650 Temperature (operation): -40°C..70°C Usage Environments: Outdoor Country of Origin (Intermatic): MEXICO Warranty Period: 2-Year limited Document Technical Data Instruction

Description The ORA4-LED is a fully adjustable multi-purpose exterior fixture that replaces traditional wall packs or floods. Benefits Ideal for townhouses, condos, perimeter lighting, and shopping malls Fixture head can be aimed down for dark sky compliance, or aimed out as needed Sleek, elegant design Three options available Yoke, Knuckle & Wall Mount Technical information Mounting option: Wall Mount Watts: 78W Lumens: 8827 Efficacy: 113 lumens/w Voltage: 120-277V Colour Temperature: 4000K Material: Aluminum Finish: Bronze Certifications: UL, IP65, DLC Documents Specification Sheet

Description The ORA3-LED is a fully adjustable multi-purpose exterior fixture that replaces traditional wall packs or floods. Benefits Ideal for townhouses, condos, perimeter lighting, and shopping malls Fixture head can be aimed down for dark sky compliance, or aimed out as needed Sleek, elegant design Three options available Yoke, Knuckle & Wall Mount Technical information Mounting option: Knuckle Mount Watts: 50W Lumens: 5470 Efficacy: 111 lumens/w Voltage: 120-277V Colour Temperature: 4000K Material: Aluminum Finish: Bronze Certifications: UL, IP65, DLC Documents Specification Sheet

Description These photocontrols install on standard outdoor light fixtures and electrical boxes with 1⁄2"-14 NPSM thread or 7⁄8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting. Features Mechanical bimetal switch with Cadmium Sulfide photocell Delay feature prevents unwanted OFF switching Gray plastic housing 1⁄2"-14 NPSM threaded stem Washer gasket and locking nut included #18 AWG, 9" wire leads Technical Information Sensor Time Delay: 30 sec to 90 sec Photocell Type: Cadmium Sulfide Photo Control Switch Type: Mechanical Bimetal Fail Mode: ON Activation On: 1 to 5 fc Activation Off: 3 to 15 fc Photocontrol Type: Thermal Application Compatibilities: HID; Fluorescent; Incandescent Photocontrol Style: Stem Mount Photocontrol Sensor Location: Side Product Height (in): 3 Product Height (mm): 76.2 Product Width (in): 1 9/16 Product Width (mm): 39.7 Product Depth (in): 1 9/16 Product Depth (mm): 39.7 Wire Lead Length (in): 9 Wire Lead Length (mm): 228.6 Wire Size Max: #18 AWG Cover Color: Gray Housing Material: Polycarbonate Load Ratings Magnetic Ballast Range(s): 8.3 A, 1000 VA Tungsten Range(s): 15 A, 1800 W Wiring Option: Wire leads Input Voltage Range(s): 120 VAC, 50/60 Hz Expected Lifetime (Years): 5 Expected Lifetime (Operations): 3650 Temperature (operation): -40°C..70°C Usage Environments: Outdoor Country of Origin (Intermatic): MEXICO Warranty Period: 2-Year limited Document Technical Information Instruction

Description The ORA4-LED is a fully adjustable multi-purpose exterior fixture that replaces traditional wall packs or floods. Benefits Ideal for townhouses, condos, perimeter lighting, and shopping malls Fixture head can be aimed down for dark sky compliance, or aimed out as needed Sleek, elegant design Three options available Yoke, Knuckle & Wall Mount Technical information Mounting option: Yoke Mount Watts: 78W Lumens: 8827 Efficacy: 113 lumens/w Voltage: 120-277V Colour Temperature: 4000K Material: Aluminum Finish: Bronze Certifications: UL, IP65, DLC Documents Specification Sheet

Description The DVAKSK-LED14 is a versatile fixture that can be used in industrial and architectural applications. Ideal for entrances, stairwells, tunnels, service area, restaurants, elevator shafts and more. Benefits Sleek, modern look with rugged construction Ceiling mount LED fixture 10-minute retrofit. Retrofits to existing 4” round/octagon boxes Polycarbonate lens can be easily replaced with glass globe and guard for a different look Precision die-cast aluminum housing Grey polyester powder coat paint finish for protection against oxidization Technical Information Model: DVAKSK-LED14 Watts: 14W Lumens: 1585 Efficacy: 111 lumens/watt Voltage: 120-277V Colour Temperature: 5000K Housing Material: Aluminum Finish: Grey Certifications: ETL, DLC, Wet Locations Documents Specification sheet

Description NIGHTFOX electronic photocontrols permanently install on outdoor electrical boxes, in-wall boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. Mounts internally to an enclosure with a minimum installation hole size of 5/8” diameter. Comes with 9" wire leads. Features Non-drift silicon light sensor with IR filter DC relay with zero-crossing circuitry for extended life Conformal coated PCB 15-year design life Exceeds 10,000 ON/OFF switching cycles Fail ON mode Ideal for single or multi-fixture HID and LED installations (up to 1,650 W @ 277 VAC) 255 J MOV surge protection element Mounts internally to enclosure. Features 3/8" - 18 NPSM thread for a minimum installation hole size of 5/8 inch diameter Technical Information Sensor Time Delay: Instant ON; 2 sec to 5 sec OFF Photocell Type: Silicon Diode Photo Control Switch Type: Relay Fail Mode: ON Activation On: 1.5 fc Activation Off: 4.5 fc Photocontrol Type: Electronic Application Compatibilities: LED; Incandescent; HID Photocontrol Style: Button Photocontrol Sensor Location: Front Product Height (in): 2 1/4 Product Height (mm): 57.2 Product Width (in): 1 5/16 Product Width (mm): 33.3 Product Depth (in): 1 1/4 Product Depth (mm): 31.8 Wire Lead Length (in): 9 Wire Lead Length (mm): 228.6 Wire Size Max: #18 AWG Cover Color: Gray Housing Material: Polycarbonate Load Ratings Tungsten Range(s): 1000 W Ballast Fluorescent Ranges: 1800 VA Electronic Ballast Load Ratings Ranges: 6 A, 120-277 VAC, 50/60 Hz Wiring Option: Wire leads Input Voltage Range(s): 120-277 VAC, 50/60 Hz Surge Protection Technology: 255 J MOV, 5,000 A Surge Country of Origin (Intermatic): MEXICO Warranty Period: 8-Year limited Document Brochure Instruction Technical Information

Description With its unique design, this LED wall sconce adds flair to every application. It can be used in both indoor and outdoor applications. Features Over 50,000 hours of service life Cast aluminum construction Up and down lighting Warm white light output Low power consumption Superior color consistency Integrated dimmable driver ADA compliant Suitable for wet locations Ideal operating temperature: -20° to 40° C 5-year warranty Technical Information Watts: 12W Delivered Lumen: 435lm LED Lumens: 545lm CRI: 90+ Color Temperature: 3000K Voltage: 120V Dimming: TRIAC Recommended Dimmers: Dals SM-DIMSW, Leviton 6615P, Leviton IPE04-1LZ, Leviton VPE06-1LZ, Lutron DVELV-300P, LUTRON SELV-300P Dimensions: 5.25'' x 5.125'' x 1.375'' Lifetime: 50000H Document Brochure Instruction

Description The key design element of Dals' new LED cylinder is the removable lens. This feature allows for three distinctive styles during installation. Note: Not compatible with shallow electrical box, deep octagonal box recommended for new installation. Features Square housing made of extruded aluminum Fixture canopy made of die-cast aluminum LED module mounted on an aluminum heat sink to maximize heat dissipation and extend product life The square wall mount comes with 3 optical options: – Bright aluminum reflector that provides a 45° beam spread – Frosted glass lens to allow a wider beam spread – Die-cast aluminum cap to allow a down light only version Compatible with TRIAC, ELV and 0-10 V dimmers The LED board is sealed with a clear tempered glass lens to ensure weatherproof operation Baked powder paint coat for a highly durable finish Suitable for wet locations JA8 certified Ideal operating temperature: -20° to 40° C 5-year warranty Technical Information Finish: Black Wiring: Hardwire Smart: No Dimming: 0-10V, ELV, TRIAC Recommended Dimmers: Dals SM-DIMSW, Leviton IPE04-1LZ, Leviton VPE06-1LZ, Lutron DVELV-300P, Lutron DVSTV(0-10V), LUTRON SELV-300P Watts: 29W Delivered Lumen: 2100lm LED Lumens: 2260lm CRI: 90+ Color Temperature: 3000K Voltage: 120V Rating: Wet Location: Indoor/Outdoor IP Rating: IP65 Dimensions: 11.75'' x 4.2'' x 3.95'' Lifetime: 50000H Warranty: 5 Year Limited Document Brochure Instruction

Description Imagine being able to manually control the amount of light spread coming from both the top and bottom of your lighting fixture. This is now possible with Dals' new LED wall sconces. Features Over 50,000 hours of service life Cast aluminum construction Warm white light output Up and down lighting Easily adjustable lighting angle from 0° to 92° Low power consumption Superior color consistency Directional lighting Integrated dimmable driver Suitable for wet locations Ideal operating temperature: -20° to 40° C 5-year warranty Technical Information Dimming: TRIAC Recommended Dimmers: Dals SM-DIMSW, Leviton VPE06-1LZ, Lutron 6613P, Lutron DV-600PH, Lutron DVELV-300P, LUTRON SELV-300P Watts: 7W Delivered Lumen: 540lm LED Lumens: 600lm CRI: 90+ Color Temperature: 3000K Voltage: 120V IP Rating: IP54 Dimensions: 4.625'' x 4.625'' x 4.2'' Lifetime: 50000H Document Instruction Brochure

Description These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol. Features Mechanical bimetal switch with Cadmium Sulfide photocell Integral high impact thermoplastic housing Locking type plug for quick installation and changeover Delay feature prevents unwanted OFF switching Complies with ANSI C136.10 standard Tested to 3,650 ON/OFF cycles Technical Information Sensor Time Delay: 30 sec to 90 sec Photocell Type: Cadmium Sulfide Photo Control Switch Type: Mechanical Bimetal Fail Mode: ON Activation On: 5 fc Activation Off: 15 fc Photocontrol Type: Thermal Application Compatibilities: HID; Incandescent Photocontrol Style: Locking type Photocontrol Sensor: Location Side Product Height (in): 2 3/4 Product Height (mm): 69.9 Product Diameter (in): 3 Product Diameter (mm): 76.2 Cover Color: White with Green Band Housing Material: Polypropylene Load Ratings Magnetic Ballast Range(s): 8.3 A, 2880 VA Tungsten Range(s): 15 A, 5205 W Input Voltage Range(s): 347 VAC, 50/60 Hz Expected Lifetime (Years): 5 Expected Lifetime (Operations): 3650 Temperature (operation): -40°C..70°C Usage Environments: Outdoor Country of Origin (Intermatic): MEXICO Warranty Period: 2-Year limited Document Technical Sheet Instruction

Description The K122 NEMA receptacles provide the connector interface for locking type photocontrols. They can be installed in the light fixture itself, or attached externally with the use of a mounting bracket (included). Features NEMA receptacle with 3-prong sockets Compliant to ANSI C136.10 specifications Technical Information Product Height (in): 2.13 Product Height (mm): 54.1 Product Diameter (in): 2.56 Product Diameter (mm): 65.02 Color: Black Base Material: Phenolic Bracket Material: Aluminum Back Cover Material: Phenolic Power Contacts Material: Brass/Phosphor Bronze Gasket (Integrated): Thermal Elastomer Wire Leads: #14 AWG, 105°C, AWM3321 Power Contacts Rating: 480 V max, 15 A max Temperature (operation): -40°C..80°C Country of Origin (Intermatic): CHINA Warranty Period: 1-Year limited Document Instruction Technical Data

Description NIGHTFOX electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. ½”-14 NPSM threaded stem fits standard outlet boxes and wall packs with a minimum installation hole size of 7/8” diameter. Come with 9" wire leads. Features Non-drift silicon light sensor with IR filter DC relay with zero-crossing circuitry for extended life Conformal coated PCB 15-year design life Exceeds 10,000 ON/OFF switching cycles Fail ON mode Ideal for single or multi-fixture HID and LED installations (up to 1,650 W @ 277 VAC) 255 J MOV surge protection element 1⁄2"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter #18 AWG wire leads Technical Information Sensor Time Delay: Instant ON; 2 sec to 5 sec OFF Photocell Type: Silicon Diode Photo Control Switch Type: Relay Fail Mode: ON Activation On: 1.5 fc Activation Off: 4.5 fc Photocontrol Type: Electronic Application Compatibilities: LED; Incandescent; HID Photocontrol Style: Stem and Swivel Mount Photocontrol Sensor Location: Side Product Height (in): 5 5/8 Product Height (mm): 142.9 Product Width (in): 1 5/16 Product Width (mm): 33.3 Product Depth (in): 1 1/4 Product Depth (mm): 31.8 Wire Lead Length (in): 6 Wire Lead Length (mm): 152 Wire Size Max: #18 AWG Cover Color: Gray Housing Material: Polycarbonate Load Ratings Tungsten Range(s): 1000 W Ballast Fluorescent Ranges: 1800 VA Electronic Ballast Load Ratings Ranges: 6 A, 120-277 VAC, 50/60 Hz Wiring Option: Wire leads Input Voltage Range(s): 120-277 VAC, 50/60 Hz Surge Protection Technology: 255 J MOV, 5,000 A Surge Temperature (operation:) -40°C..70°C Usage Environments: Outdoor Country of Origin (Intermatic) MEXICO Warranty Period 8-Year limited Document Brochure Instruction Technical Information

Description NIGHTFOX electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. ½”-14 NPSM threaded stem fits standard outlet boxes and wall packs with a minimum installation hole size of 7/8” diameter. Come with 9" wire leads. Features Non-drift silicon light sensor with IR filter DC relay with zero-crossing circuitry for extended life Conformal coated PCB 15-year design life Exceeds 10,000 ON/OFF switching cycles Fail ON mode Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC) 255 J MOV surge protection element 1⁄2"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter #18 AWG wire leads Technical Information Sensor Time Delay: Instant ON; 2 sec to 5 sec OFF Photocell Type: Silicon Diode Photo Control Switch Type: Relay Fail Mode: ON Activation On: 1.5 fc Activation Off: 4.5 fc Photocontrol Type: Electronic Application Compatibilities: LED; Incandescent; HID Photocontrol Style: Stem Mount Photocontrol Sensor Location: Side Product Height (in): 2 1/4 Product Height (mm): 57.2 Product Width (in): 1 5/16 Product Width (mm): 33.3 Product Depth (in): 1 1/4 Product Depth (mm): 31.8 Wire Lead Length (in): 9 Wire Lead Length (mm): 228.6 Wire Size Max: #18 AWG Cover Color: Gray Housing Material: Polycarbonate Load Ratings Tungsten Range(s):1000 W Ballast Fluorescent Ranges: 1800 VA Electronic Ballast Load Ratings Ranges: 6 A, 120-277 VAC, 50/60 Hz Wiring Option: Wire leads Input Voltage Range(s): 120-277 VAC, 50/60 Hz Surge Protection Technology: 255 J MOV, 5,000 A Surge Country of Origin (Intermatic): MEXICO Warranty Period: 8-Year limited Document Brochure Instruction Technical Information

Description The ORA4-LED is a fully adjustable multi-purpose exterior fixture that replaces traditional wall packs or floods. Benefits Ideal for townhouses, condos, perimeter lighting, and shopping malls Fixture head can be aimed down for dark sky compliance, or aimed out as needed Sleek, elegant design Three options available Yoke, Knuckle & Wall Mount Technical information Mounting option: Knuckle Mount Watts: 78W Lumens: 8827 Efficacy: 113 lumens/w Voltage: 120-277V Colour Temperature: 4000K Material: Aluminum Finish: Bronze Certifications: UL, IP65, DLC Documents Specification sheet Installation Manual

Description The key design element of Dals' new LED cylinder is the removable lens. This feature allows for three distinctive styles during installation. Note: Not compatible with shallow electrical box, deep octagonal box recommended for new installation. Features Square housing made of extruded aluminum Fixture canopy made of die-cast aluminum LED module mounted on an aluminum heat sink to maximize heat dissipation and extend product life The square wall mount comes with 3 optical options: – Bright aluminum reflector that provides a 45° beam spread – Frosted glass lens to allow a wider beam spread – Die-cast aluminum cap to allow a down light only version Compatible with TRIAC, ELV and 0-10 V dimmers The LED board is sealed with a clear tempered glass lens to ensure weatherproof operation Baked powder paint coat for a highly durable finish Suitable for wet locations JA8 certified Ideal operating temperature: -20° to 40° C 5-year warranty Technical Information Finish: White Wiring: Hardwire Smart: No Dimming: 0-10V, ELV, TRIAC Recommended Dimmers: Dals SM-DIMSW, Leviton IPE04-1LZ, Leviton VPE06-1LZ, Lutron DVELV-300P, Lutron DVSTV(0-10V), LUTRON SELV-300P Watts: 29W Delivered Lumen: 2100lm LED Lumens: 2260lm CRI: 90+ Color Temperature: 3000K Voltage: 120V Rating: Wet Location: Indoor/Outdoor IP Rating: IP65 Dimensions: 11.75'' x 4.2'' x 3.95'' Lifetime: 50000H Warranty: 5 Year Limited Document Brochure Instruction

Description The key design element of Dals' new LED cylinder is the removable lens. This feature allows for three distinctive styles during installation. Note: Not compatible with shallow electrical box, deep octagonal box recommended for new installation. Features Square housing made of extruded aluminum Fixture canopy made of die-cast aluminum LED module mounted on an aluminum heat sink to maximize heat dissipation and extend product life The square wall mount comes with 3 optical options: – Bright aluminum reflector that provides a 45° beam spread – Frosted glass lens to allow a wider beam spread – Die-cast aluminum cap to allow a down light only version Compatible with TRIAC, ELV and 0-10 V dimmers The LED board is sealed with a clear tempered glass lens to ensure weatherproof operation Baked powder paint coat for a highly durable finish Suitable for wet locations JA8 certified Ideal operating temperature: -20° to 40° C 5-year warranty Technical Information Finish: Silver Grey Wiring: Hardwire Smart: No Dimming: 0-10V, ELV, TRIAC Recommended Dimmers: Dals SM-DIMSW, Leviton IPE04-1LZ, Leviton VPE06-1LZ, Lutron DVELV-300P, Lutron DVSTV(0-10V), LUTRON SELV-300P Watts: 29W Delivered Lumen: 2100lm LED Lumens: 2260lm CRI: 90+ Color Temperature: 3000K Voltage: 120V Rating: Wet Location: Indoor/Outdoor IP Rating: IP65 Dimensions: 11.75'' x 4.2'' x 3.95'' Lifetime: 50000H Warranty: 5 Year Limited Document Brochure Instruction

Description The key design element of Dals' new LED cylinder is the removable lens. This feature allows for three distinctive styles during installation. Note: Not compatible with shallow electrical box, deep octagonal box recommended for new installation. Features Cylindrical housing made of extruded aluminum Fixture canopy made of die-cast aluminum LED module mounted on an aluminum heat sink to maximize heat dissipation and extend product life Cylinder comes with 3 optical options: – Bright aluminum reflector that provides a 45° beam spread – Frosted glass lens to allow a wider beam spread – Die-cast aluminum cap to allow a down light only version Compatible with TRIAC, ELV and 0-10 V dimmers The LED board is sealed with a clear tempered glass lens to ensure weatherproof operation Baked powder paint coat for a highly durable finish Suitable for wet locations JA8 certified Ideal operating temperature: -20° to 40° C 5-year warranty Technical Information Finish: White Wiring: Hardwire Smart: No Dimming: 0-10V, ELV, TRIAC Recommended Dimmers: Dals SM-DIMSW, Leviton IPE04-1LZ, Leviton VPE06-1LZ, Lutron DVELV-300P, Lutron DVSTV(0-10V), LUTRON SELV-300P Watts: 29W Delivered Lumen: 2100lm LED Lumens: 2260lm CRI: 90+ Color Temperature: 3000K Voltage: 120V Rating: Wet Location: Indoor/Outdoor IP Rating: IP65 Dimensions: 11.75'' x 4.5625'' x 3.95'' Lifetime: 50000H Warranty: 5 Year Limited Document Brochure Instruction

Description The DALS Lighting Black 4" Square Shaped Luminaire LED Bollard Path Light is an elegant and contemporary choice for outdoor lighting. Constructed of high-grade aluminum and a black finish, it delivers reliable brightness and reliable performance. This bollard light is perfect for illuminating pathways, driveways, flower beds, and other outdoor areas. Features Over 50,000 hours of service life Warm white light output Low power consumption Available in total height of 36″ Superior color consistency Integrated dimmable driver Anchor bolts included Suitable for wet locations Ideal operating temperature: -20° to 40° C 5-year warranty Technical Information Dimming:TRIAC Recommended Dimmers: Leviton 6615P, Leviton VPE06-1LZ, Lutron CTCL-153P, Lutron DVELV-300P, LUTRON SELV-300P Watts: 7.5W Delivered Lumen: 350lm LED Lumens: 700lm CRI: 90+ Color Temperature: 3000K Voltage: 120V IP Rating: IP54 Dimensions: 36" x 4" x 4" Lifetime: 50000H Document Brochure Instruction

Description Inspiration will come in abundance once you try our LED accent step lights. Use them outdoors on your deck or on the stairs inside of your home. You will be truly impressed by the effect! Features Die-cast aluminum housing Over 50,000 hours of service life Warm white light output Optimized light spread Low power consumption Excellent color rendering Superior light color consistency Aesthetic profile Dimmable Install in standard electrical junction box Suitable for wet locations Ideal operating temperature: -20° to 40° C 5-year warranty Technical Information Dimming: TRIAC Recommended Dimmers: Dals SM-DIMSW, Leviton 6615P, Leviton VPE06-1LZ, Lutron CTCL-153P, Lutron DVELV-300P, LUTRON SELV-300P Watts: 3W Delivered Lumen: 70lm LED Lumens: 285lm CRI: 80+ Color Temperature: 3000K Voltage: 120V Dimensions: 4.75'' x 3'' x 0.25'' Lifetime: 50000H Document Instruction Brochure

Description The key design element of Dals' new LED cylinder is the removable lens. This feature allows for three distinctive styles during installation. Note: Not compatible with shallow electrical box, deep octagonal box recommended for new installation. Features Cylindrical housing made of extruded aluminum Fixture canopy made of die-cast aluminum LED module mounted on an aluminum heat sink to maximize heat dissipation and extend product life Cylinder comes with 3 optical options: – Bright aluminum reflector that provides a 45° beam spread – Frosted glass lens to allow a wider beam spread – Die-cast aluminum cap to allow a down light only version Compatible with TRIAC, ELV and 0-10 V dimmers The LED board is sealed with a clear tempered glass lens to ensure weatherproof operation Baked powder paint coat for a highly durable finish Suitable for wet locations JA8 certified Ideal operating temperature: -20° to 40° C 5-year warranty Technical Information Finish: Black Wiring: Hardwire Smart: No Dimming: 0-10V, ELV, TRIAC Recommended Dimmers: Dals SM-DIMSW, Leviton IPE04-1LZ, Leviton VPE06-1LZ, Lutron DVELV-300P, Lutron DVSTV(0-10V), LUTRON SELV-300P Watts: 29W Delivered Lumen: 2100lm LED Lumens: 2260lm CRI: 90+ Color Temperature: 3000K Voltage: 120V Rating: Wet Location: Indoor/Outdoor IP Rating: IP65 Dimensions: 11.75'' x 4.5625'' x 3.95'' Lifetime: 50000H Warranty: 5 Year Limited Document Brochure Instruction

Description The SK4500K Shorting Cap is a low-profile, locking-type photocontrol cap that closes the receptacle connectors of individual fixtures. This cost-effective solution allows a series of lights to perform as a collective unit (ON/OFF) while protecting the receptacle from outdoor elements. Features Fits standard locking-type receptacles Polycarbonate housing Works for all voltages Keeps lights permanently ON Technical Information Product Height (in): 1.5 Product Height (mm): 38.1 Product Diameter (in): 3.25 Product Diameter (mm): 82.55 Temperature (operation): -40°C..70°C UL Certification: cULus Other Certifications and Compatibilities: Ansi C136.10 California Proposition: 65 None RoHS Certification: Yes Country of Origin (Intermatic): MEXICO Warranty Period: 2-Year limited Document Instruction Technical Sheet

Description These photocontrols are provided with a swivel arm for easy and flexible installation to standard outdoor light fixtures or electrical boxes. Features Mechanical bimetal switch with Cadmium Sulfide photocell Delay feature prevents unwanted OFF switching High strength, UV resistant plastic housing Swivel with 1⁄2"-14 NPSM threaded stem Washer gasket and locking nut included #18 AWG, 6" wire leads Technical Information Sensor Time Delay: 30 sec to 90 sec Photocell Type:Cadmium Sulfide Photo Control Switch Type: Mechanical Bimetal Fail Mode: ON Activation On: 1 to 5 fc Activation Off: 3 to 15 fc Photocontrol Type: Thermal Application Compatibilities: HID; Fluorescent; Incandescent Photocontrol Style: Stem and Swivel Mount Photocontrol Sensor Location: Top Product Height (in): 4 Product Height (mm): 101.6 Product Width (in): 1 3/8 Product Width (mm): 34.9 Product Depth (in): 1 3/8 Product Depth (mm): 34.9 Wire Lead Length (in): 6 Wire Lead Length (mm): 152 Wire Size: Max #18 AWG Cover Color: Gray Housing Material: Polycarbonate Load Ratings Magnetic Ballast Range(s): 8.3 A, 1000 VA Tungsten Range(s): 15 A, 1800 W Wiring Option: Wire leads Input Voltage Range(s): 120 VAC, 50/60 Hz Expected Lifetime (Years):5 Expected Lifetime (Operations): 3650 Temperature (operation): -40°C..60°C Usage Environments: Outdoor Country of Origin (Intermatic): CHINA Warranty Period: 1-Year limited Document Technical Sheet Instruction

Description LED-compatible photocontrol features a 10-year life expectancy. Ideal for single fixture control of smaller LED fixtures that require a cost-effective solution. Features Non-drift silicon light sensor with IR filter All components meet 10-year life expectancy Exceeds 5,000 ON/OFF switching cycles Ideal for single HID and LED fixtures (up to 550 W @ 277 VAC) Power-up ON delay (45-60 sec) for easy installation verification and troubleshooting 510 J MOV surge protection Technical Information Sensor Time Delay: Instant ON; 2 sec to 5 sec OFF Photocell Type: Silicon Diode Photo Control Switch Type: Relay Fail Mode: ON Activation On: 1.5 fc Activation Off: 2.25 fc Photocontrol Type: Electronic Application Compatibilities: LED; Incandescent; HID Photocontrol Style: Locking type Photocontrol Sensor Location: Side Product Height (in): 2 3/4 Product Height (mm): 69.9 Product Diameter (in): 3.375 Product Diameter (mm): 85.8 Cover Color: Blue Housing Material: Polycarbonate with Acrylic Window Load Ratings Magnetic Ballast Range(s): 1800 VA Tungsten Range(s): 1000 W Electronic Ballast Load Ratings Ranges: 2 A, 120-277 VAC, 50/60 Hz Input Voltage Range(s): 120-277 VAC, 50/60 Hz Surge Protection Technology: 510 J MOV Temperature (operation): -40°C..70°C Usage Environments: Outdoor Country of Origin (Intermatic) MEXICO Warranty Period 6-Year limited Document Brochure Technical Information Instruction
