Description The SlimLED you know and love is now available with a 5-position CCT selectable switch. Adjustable from below the ceiling, simply remove the faceplate, select your color temperature, then magnetically snap on one of the trim options. Features Body Durable airtight aluminum body with UV stable paint and white PMMA diffuser lens for low glare. Includes silicone gasket for wet location applications. Includes White interchangeable magnetic trim for round fixtures. LED Characteristics This general application light fixture features a 12 watt (for 4") LED module that maintains uniform intensity producing up to 750 lumens; with a typical CRI of 90. Available with 5 step CCT switch (2700 K, 3000 K, 3500 K, 4000 K and 5000 K). Dimming 100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers. For compatible dimmers, visit www.liteline.com/SlimLED. Beam Spread The fixture lens provides 110° beam spread. Mounting Includes two spring loaded clips to attached to any ceiling material. The slim profile allows to be mounted under joists or duct work. LED Driver Extruded aluminum hardwire box with 300mA (for 4") or 370mA (for 6") dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" plenum rated FT6 wire with DC 2.1 connector from driver to fixture. Quick Connect push-in terminals “Quick connect” push-in terminals for fast and easy wiring. Operating Temperature -30°C~40°C (-22°F~104°F) Environment Suitable for wet locations and suitable for insulated ceiling applications Technical Information Application : Ceiling Recessed Mount Approved Location: Wet / Insulated Ceilings Beam Angle: 110° CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K Certification: cETLus Color: White CRI: 90 Dimming: Yes Dimming Tech: Forward/Reverse phase / TRIAC/ELV Energy Star: Yes Hole Cut: 4" : Ø 4¼ " (108mm) Input: 100-135V AC, 50 / 60Hz LM79: Yes LM80: Yes Lumens: Up to 750 Power Factor: 0.9 Projected Life: 70% @ 50,000 hrs Title: 24 JA8 (up to 4000 K) Warranty: Lifetime Wattage: 12W

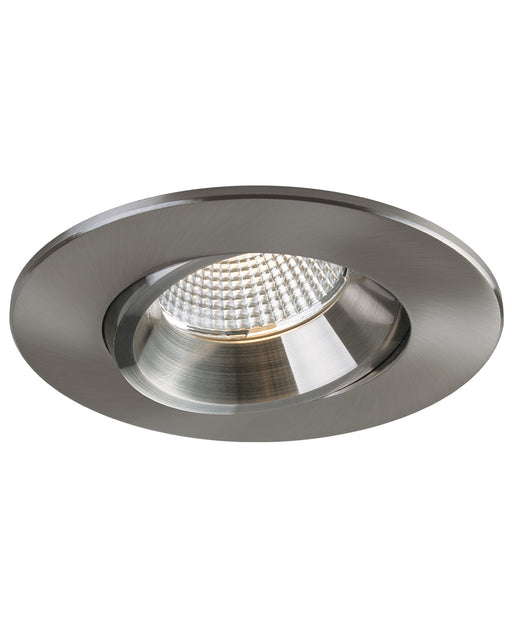

Description The LUNA 4" fixture, is a 12 watt, recessed light fixture for retrofit, remodel or new construction applications with 360-degree rotation and 30-degree tilt. It is a high-performance, easy to install residential grade downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations. Available here in a 4-pack with an OnCloud dimmer for Wi-Fi control through the WiZ app to create scenes, set schedules and connect with smart speakers. ***The On Cloud Dimmer only works for single pole applications.*** Features Durable airtight aluminum body with adjustable regressed gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source General application light fixture featuring a 12 watt LED module that maintains uniform intensity producing up to 700 lumens, with a typical CRI of 90 Available in 3000k color temperatures 100%-10% dimming capability. This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers Fixture lens provides 38° beam spread Includes two spring loaded clips to attached to any ceiling material Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings Three "quick connect" push-in terminals for fast and easy wiring Operating Temperature from -20°C to 40°C (-4°F to 104°F) Suitable for wet locations Approved for direct contact with insulation Technical Information Application: Ceiling Recess Mount Approved Location: Wet / Insulated Ceilings Beam Angle: 38° CCT: 3000 K to 2000 K Certification: cETLus Class II: Yes Colour: White CRI: 90 Dimming: Yes Dimming Tech: Forward/reverse-phase - TRIAC/ELV Energy Star: Yes Hole Cut: Ø 4¼ " (108mm) Input: 100-135V AC, 60Hz Lumens: Up to 700 Lumens per Watt: Up to 59 Power Factor: 0.9 Projected Life: 70% @ 50,000 hrs Warranty: Lifetime Wattage: 12W Document Brochure Specification Sheet

Description The LUNA 4" fixture, is a 12 watt, recessed light fixture for retrofit, remodel or new construction applications with 360-degree rotation and 30-degree tilt. It is a high-performance, easy to install residential grade downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations. Also available in a 4-pack with an OnCloud dimmer for Wi-Fi control through the WiZ app to create scenes, set schedules and connect with smart speakers. Features Durable airtight aluminum body with adjustable regressed gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source General application light fixture featuring a 12 watt LED module that maintains uniform intensity producing up to 780 lumens, with a typical CRI of 90 On fixture selectable switch allows switching between 2700k, 3000k, 3500k, 4000k and 5000k color temperature 100%-10% dimming capability. This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers Fixture lens provides 38° beam spread Includes two spring loaded clips to attached to any ceiling material Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings Three "quick connect" push-in terminals for fast and easy wiring Operating Temperature from -20°C to 40°C (-4°F to 104°F) Suitable for wet locations Approved for direct contact with insulation Technical Information Application: Ceiling Recess Mount Approved Location: Wet / Insulated Ceilings Beam Angle: 38° CCT (color selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K Certification: cETLus Class II: Yes Colour: White CRI: 90 Dimming: Yes Dimming Tech: Forward/reverse-phase - TRIAC/ELV Energy Star: Yes Hole Cut: Ø 4¼ " (108mm) Input: 100-135V AC, 60Hz Lumens: Up to 850 Lumens per Watt: Up to 71 Power Factor: 0.9 Projected Life: 70% @ 50,000 hrs Warranty: Lifetime Wattage: 12W Document Brochure Specification Sheet Installation Compatible Dimmers

Description Hardwire box with On/Off switch and 1x 1/2-inch knock-out. for LED FluoroBar. Features Hardwire Box with a switch Can be connected directly to the fixture or by using a flexible connector For 120V Power Input Equipped with a 10 amp 120v rocker switch Easy wiring - no splicing and no wire nuts required Approved for hardwire applications Provided with 1 standard 1/2" knock out for electrical connections Document Instruction Specification sheet Brochure

Description The P-4020 is a pre-mounting plate for use with 4" SLIMLED and LUNA fixtures. SLM4 Series SLM4F Series SLMPRO4 Series RA4 Series Features Constructed of galvanized steel, this 4-1/4" round opening pre-mounting plate is used to mount 4" SLIMLED and LUNA fixtures The place includes mounting holes and tracks to satisfy any type of installation. Alignment notches on plate to help aligning multiple plates Document Specification Sheet

Description The LUNA 4" fixture, is a 12 watt, recessed light fixture for retrofit, remodel or new construction applications with 360-degree rotation and 30-degree tilt. It is a high-performance, easy to install residential grade downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations. Also available in a 4-pack with an OnCloud dimmer for Wi-Fi control through the WiZ app to create scenes, set schedules and connect with smart speakers. Features Durable airtight aluminum body with adjustable regressed gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source General application light fixture featuring a 12 watt LED module that maintains uniform intensity producing up to 700 lumens, with a typical CRI of 90 Available in 3000k color temperatures 100%-10% dimming capability. This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers Fixture lens provides 38° beam spread Includes two spring loaded clips to attached to any ceiling material Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings Three "quick connect" push-in terminals for fast and easy wiring Operating Temperature from -20°C to 40°C (-4°F to 104°F) Suitable for wet locations Approved for direct contact with insulation Technical Information Application: Ceiling Recess Mount Approved Location: Wet / Insulated Ceilings Beam Angle: 38° CCT: 3000 K to 2000 K Certification: cETLus Class II: Yes Colour: White CRI: 90 Dimming: Yes Dimming Tech: Forward/reverse-phase - TRIAC/ELV Energy Star: Yes Hole Cut: Ø 4¼ " (108mm) Input: 100-135V AC, 60Hz Lumens: Up to 700 Lumens per Watt: Up to 59 Power Factor: 0.9 Projected Life: 70% @ 50,000 hrs Warranty: Lifetime Wattage: 12W Document Brochure Specification Sheet Installation Compatible Dimmers

Description The RA35-12RG is a 12 watt 3.5" round regressed gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for damp locations. Features Durable airtight aluminum body with adjustable gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source. This general application light fixture features a 12 watts LED module that maintains uniform intensity producing up to 680 Lumens; with a typical CRI of 90. On-fixture color selectable switch allows switching between 2700 K, 3000 K, 3500 K, 4000 K and 5000 K color temperatures. 100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers (See specification sheet for listing of compatible dimmers) The fixture lens provides 38° beam spread. Includes two spring loaded clips to attached to any ceiling material Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 16" cable from driver to fixture. Three "Quick connect" push-in terminals for fast and easy wiring. Operating temperature range from -20°C to 40°C (-4°F to 104°F) Suitable for wet locations and suitable for insulated ceiling applications. Approved for direct contact with insulation. Airtight Technical Information Application: Ceiling Recess Mount Approved Location: Wet / Insulated Ceilings Beam Angle: 38° CCT (color selectable) 2700 K / 3000 K / 3500 K / 4000 K / 5000 K Certification: cETLus Class II: Yes Color: White CRI: 90+ Dimming: Yes Dimming Tech: Forward/reverse-phase - TRIAC/ELV Energy Star: Yes Hole Cut: Ø 35⁄8" (92mm) Input: 100-135V AC, 60Hz Lumens: Up to 850 Lumens per Watt: Up to 78 Power Factor: >0.90 Projected Life: 70% @ 50,000 hrs Warranty: Lifetime Wattage: 12W Document Brochure Installation instruction Compatible Dimmers Specification Sheet

Description The RA35-12G is a 12 watt 3.5" round gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install residential grade downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for damp locations. Features Durable airtight aluminum body with adjustable gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source. This general application light fixture features a 12 watts LED module that maintains uniform intensity producing up to 850 Lumens; with a typical CRI of 90. 100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers (See specification sheet for listing of compatible dimmers) The fixture lens provides 40° beam spread. Includes two spring loaded clips to attached to any ceiling material Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 16" cable from driver to fixture. Three "Quick connect" push-in terminals for fast and easy wiring. Operating temperature range from -20°C to 40°C (-4°F to 104°F) Suitable for damp locations. Approved for direct contact with insulation. Technical Information Application: Ceiling Recess Mount Approved Location: Wet / Insulated Ceilings Beam Angle: 38° CCT (color selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K Certification: cETLus Class II: Yes Color: White CRI: 90+ Dimming: Yes Dimming Tech: Forward/reverse-phase, TRIAC/ELV Energy Star: Yes Hole Cut: Ø 35⁄8" (92mm) Input: 100-135V AC, 60Hz Lumens: 767 / 789 / 828 / 850 / 796 Lumens per Watt: Up to 78 Power Factor: >0.90 Projected Life: 70% @ 50,000 hrs Warranty: Lifetime Wattage: 12W Document Brochure Specification Sheet Compatible Dimmers Instruction

Description The LUNA 4" fixture, is a 12 watt, recessed light fixture for retrofit, remodel or new construction applications with 360-degree rotation and 30-degree tilt. It is a high-performance, easy to install residential grade downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations. Also available in a 4-pack with an OnCloud dimmer for Wi-Fi control through the WiZ app to create scenes, set schedules and connect with smart speakers. Features Durable airtight aluminum body with adjustable regressed gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source General application light fixture featuring a 12 watt LED module that maintains uniform intensity producing up to 780 lumens, with a typical CRI of 90 On fixture selectable switch allows switching between 2700k, 3000k, 3500k, 4000k and 5000k color temperature 100%-10% dimming capability. This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers Fixture lens provides 38° beam spread Includes two spring loaded clips to attached to any ceiling material Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings Three "quick connect" push-in terminals for fast and easy wiring Operating Temperature from -20°C to 40°C (-4°F to 104°F) Suitable for wet locations Approved for direct contact with insulation Technical Information Application: Ceiling Recess Mount Approved Location: Wet / Insulated Ceilings Beam Angle: 38° CCT (color selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K Certification: cETLus Class II: Yes Colour: Black CRI: 90 Dimming: Yes Dimming Tech: Forward/reverse-phase - TRIAC/ELV Energy Star: Yes Hole Cut: Ø 4¼ " (108mm) Input: 100-135V AC, 60Hz Lumens: Up to 850 Lumens per Watt: Up to 71 Power Factor: 0.9 Projected Life: 70% @ 50,000 hrs Warranty: Lifetime Wattage: 12W Document Brochure Specification Sheet Installation Compatible Dimmers

Description 12" Flexible wire connector used to join the LED FluoroBar. Features For 120V AC Power Input Push in easy connectors to ensure tight fit between fixtures Document Brochure Specification sheet

Description The RA4-12 is a 12 watt 4" round gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations. Features Durable airtight aluminum body with adjustable gimbal. Includes Anodized blue heat sink to provide maximum airflow for the LED light source This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 1015 lumens, with a typical CRI of 90. 100%-10% dimming capability. Compatible with industry standard TRIAC/ELV dimmers. The lens provides 40° beam spread Includes two spring loaded clips to attached to any ceiling material Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings Three "quick connect" push-in terminals for fast and easy wiring Operating temperature of -20°C to 40°C (-4°F to 104°F) Suitable for wet locations Approved for direct contact with insulation Technical Information Application: Ceiling Recess Mount Approved Location: Wet / Insulated Ceilings Beam Angle: 40° CCT: 3000K Certification: cETLus Class II: Yes Color:White CRI: 90 Dimming: Yes Dimming Tech: Forward/reverse-phase, TRIAC/ELV Energy Star: Yes Hole Cut: Ø 4¼ " (108mm) Input: 100-135V AC, 60Hz Lumens: 1015 Lumens per Watt: 83 Power Factor: 0.95 Projected Life: 70% @ 50,000 hrs Warranty: Lifetime Wattage: 12W Document Brochure Installation Specification Sheet Compatible Dimmers

Description The LEDbar is an integrated linear light bar, that is available in various lengths, with a color selectable switch on the fixture. With dependable features that include a durable extruded aluminum frame, you can be confident in product longevity. Suitable for dry locations, this product is an optimal choice for kitchen spaces amongst other similar applications. The built-in, non-flicker, electronic LED driver provides dimming capability with Triac, ELV and incandescent dimmers. The ability to hardwire this fixture is accompanied by the capability to link up to 10 fixtures with an added no shadow linking connector to maximize light output. With a built in on/off switch, a choice of 6 lengths, LEDBAR gives you the perfect combination of design and functionality. ****POWER CORD NEED TO BE ORDER SEPARATELY. SEE ALFT6000-WH-3 HERE Features Durable extruded aluminum frame with frosted smooth lens. Suitable for dry location applications only. Can be use in closets. On-body On/Off switch is provided for individual control (Except 9" models) 5-Position 2700-5000K CCT select switch. Fixture is provided with built-in silent non-flicker electronic LED driver, 120V, 50/60HZ Fixture is 100-10% dimmable with industry standard TRIAC/ELV and incandescent dimmers Powered by LED integrated strip that maintains uniform intensity with 70% lumens at 60,000 hours with a rated life of 36,000 hours average life; at 90 CRI The fixture lens provides for 125° beam spread Complete with a joiner, these no shadow linking fixtures can be linked up to 2500 mA / 300 W. Hardware provided for mounting fixture to standard horizontal surfaces or vertical wall surface Operating temperature from -18°C to 40°C (0°F to 104°F) Technical Information Length: 22-5/8 in (574mm) Approved Location: Dry Beam Angle: 125° CCT Switch: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K Certification: cULus Connection Type: 3-Wire CRI: 90+ Dimming: Yes Dimming Technology: TRIAC / ELV Lumens: Up to 802 Max. Operating Temp: 40°C Min. Start Temp: -18°C Lumen Maintenance: 70% @ 60,000 hrs Power Factor: >0.95 Rated Life: 36,000 hrs THD: <15 Voltage: 120V Warranty: 3 Years Wattage: 9 watt Document Specification Sheet Installation Manual

Description The RA4-12 is a 12 watt 4" round gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations. Features Durable airtight aluminum body with adjustable gimbal. Includes Anodized blue heat sink to provide maximum airflow for the LED light source This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 840 lumens, with a typical CRI of 90. Selectable color, from 2700k to 5000k 100%-10% dimming capability. Compatible with industry standard TRIAC/ELV dimmers. The lens provides 40° beam spread Includes two spring loaded clips to attached to any ceiling material Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings Three "quick connect" push-in terminals for fast and easy wiring Operating temperature of -20°C to 40°C (-4°F to 104°F) Suitable for wet locations Approved for direct contact with insulation Technical Information Application: Ceiling Recess Mount Approved Location: Wet / Insulated Ceilings Beam Angle: 40° CCT (color selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K Certification: cETLus Class II: Yes Color:White CRI: 90 Dimming: Yes Dimming Tech: Forward/reverse-phase, TRIAC/ELV Energy Star: Yes Hole Cut: Ø 4¼ " (108mm) Input: 100-135V AC, 60Hz Lumens: Up to 840 Lumens per Watt: Up to 71 Power Factor: 0.9 Projected Life: 70% @ 50,000 hrs Warranty: Lifetime Wattage: 12W Document Brochure Installation Specification Sheet Compatible Dimmers

Description The SlimLED you know and love is now available with a 5-position CCT selectable switch. Adjustable from below the ceiling, simply remove the faceplate, select your color temperature, then magnetically snap on one of the trim options. Features Durable airtight aluminum body with UV stable paint and white PMMA diffuser lens for low glare. Includes silicone gasket for wet location applications. Includes a white magnetic trim This general application light fixture features a 16 watt LED module that maintains uniform intensity producing up to 1150 lumens; with typical CRI of 90. Available with 5 step CCT switch (2700K, 3000K, 3500K, 4000K and 5000K) 100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers. Provides 110° beam spread Includes two spring loaded clips to attached to any ceiling material. The slim profile allows to be mounted under joists or duct work. Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" plenum rated FT6 wire with DC 2.1 connector from driver to fixture. "Quick connect" push-in terminals for fast and easy wiring Operating temperature from -30°C to 40°C (-°22F to 104°F) Suitable for wet locations and for insulated ceiling applications Technical Information Application: Ceiling Recessed Mount Approved Location: Wet / Insulated Ceilings Beam Angle: 110° CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K Certification: cETLus Color: WH CRI: 90 Dimming: Yes Dimming Tech: Forward/Reverse phase / TRIAC/ELV Energy Star: Yes Hole Cut : Ø 6¼ " (159mm) Input: 100-135V AC, 60Hz LM79: Yes LM80: Yes Lumens: Up to 1150 Lumens per Watt: Up to 74 Power Factor: 0.9 Projected Life: 70% @ 50,000 hrs Title 24: JA8 (up to 4000 K) Warranty: Lifetime Wattage: 16W Document Brochure Installation

Description The RA35-12RG is a 12 watt 3.5" round regressed gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for damp locations. Features Durable airtight aluminum body with adjustable gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source. This general application light fixture features a 12 watts LED module that maintains uniform intensity producing up to 560 Lumens; with a typical CRI of 90. Color temperature dimming from 3000 K to 2000 K. This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers 100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers (See specification sheet for listing of compatible dimmers) The fixture lens provides 38° beam spread. Includes two spring loaded clips to attached to any ceiling material Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 16" cable from driver to fixture. Three "Quick connect" push-in terminals for fast and easy wiring. Operating temperature range from -20°C to 40°C (-4°F to 104°F) Suitable for wet locations and suitable for insulated ceiling applications. Approved for direct contact with insulation. Airtight Technical Information Application: Ceiling Recess Mount Approved Location: Wet / Insulated Ceilings Beam Angle: 38° CCT: 3000 K~2000 K Certification: cETLus Class II: Yes Color: White CRI: 90+ Dimming: Yes Dimming Tech: Forward/reverse-phase - TRIAC/ELV Hole Cut: Ø 35⁄8" (92mm) Input: 100-135V AC, 60Hz Lumens: 700 Lumens per Watt: 64 Power Factor: >0.90 Projected Life: 70% @ 33,000 hrs Warranty: Lifetime Wattage: 12W Document Brochure Installation instruction Compatible Dimmers Specification Sheet

Description 6" Flexible wire connector used to join the LED FluoroBar. Features For 120V AC Power Input Push in easy connectors to ensure tight fit between fixtures Document Brochure Specification sheet

Description Full color and white tuning is now available on the classic SlimLED style. Plus, trims can be magnetically interchanged on site after installation to match your style. If you're updating a room, this 4-pack kit with a Room Controller is perfect, so you can turn the lights on/off, dim, change the white, or select through the 4-favorite modes all from the wall. Features Durable airtight aluminum body with UV stable paint and white PMMA diffuser lens for low glare. Includes silicone gasket for wet location applications Includes white and black interchangeable magnetic trims This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 800 lumens, with a typical CRI of 90. RGB and tunable White (2700 K to 5000 K) 100%-10% Wi-Fi dimming capability. Dimming controlled via the WiZ App and Room Controller Lens provides 110° beam spread Includes two spring loaded clips to attached to any ceiling material Extruded aluminum hardwire box with 300mA Wi-Fi dimmable LED driver with 100-135V AC input. Includes an 18" wire with 6-pin DC connector between driver and fixture Can be controlled via the WiZ App (Works with iOS and Android) from anywhere. Voice control can also be achieved by integrating the app with most smart speakers. Works with Google Assistant, Siri, Alexa and IFTTT. "Quick connect" push-in terminals in hardwire box for fast and easy wiring Minimum starting temperature of -40°C (-40°F) Suitable for wet locations, indoor or outdoor Approved for direct contact with insulation Technical Information Application: Ceiling Recess Mount Approved Location: Wet / Insulated Ceilings / Indoor / Outdoor Beam Angle: 110° CCT: RGB + Tunable White (2700 K - 5000 K) Certification: cETLus Class II: Yes Color: White and Black trims included CRI: 90 Dimming: Yes Dimming Tech: Wi-Fi Dimming (via WiZ App) Hole Cut: Ø 4¼ " (108mm) Input: 100-135V AC, 60Hz Lumens: up to 800 Lumens per Watt: Up to 76 Power Factor: >0.9 Projected Life: 70% @ 50,000 hrs Warranty: 3-Year Wattage: 12W Document Specification Sheet Installation

Description The LEDbar is an integrated linear light bar, that is available in various lengths, with a color selectable switch on the fixture. With dependable features that include a durable extruded aluminum frame, you can be confident in product longevity. Suitable for dry locations, this product is an optimal choice for kitchen spaces amongst other similar applications. The built-in, non-flicker, electronic LED driver provides dimming capability with Triac, ELV and incandescent dimmers. The ability to hardwire this fixture is accompanied by the capability to link up to 10 fixtures with an added no shadow linking connector to maximize light output. With a built in on/off switch, a choice of 6 lengths, LEDBAR gives you the perfect combination of design and functionality. ****POWER CORD NEED TO BE ORDER SEPARATELY. SEE ALFT6000-WH-3 HERE Features Durable extruded aluminum frame with frosted smooth lens. Suitable for dry location applications only. Can be use in closets. On-body On/Off switch is provided for individual control (Except 9" models) 5-Position 2700-5000K CCT select switch. Fixture is provided with built-in silent non-flicker electronic LED driver, 120V, 50/60HZ Fixture is 100-10% dimmable with industry standard TRIAC/ELV and incandescent dimmers Powered by LED integrated strip that maintains uniform intensity with 70% lumens at 60,000 hours with a rated life of 36,000 hours average life; at 90 CRI The fixture lens provides for 125° beam spread Complete with a joiner, these no shadow linking fixtures can be linked up to 2500 mA / 300 W. Hardware provided for mounting fixture to standard horizontal surfaces or vertical wall surface Operating temperature from -18°C to 40°C (0°F to 104°F) Technical Information Length: 46-3/16 in (1174 mm) Approved Location: Dry Beam Angle: 125° CCT Switch: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K Certification: cULus Connection Type: 3-Wire CRI: 90+ Dimming: Yes Dimming Technology: TRIAC / ELV Lumens: Up to 1647 Max. Operating Temp: 40°C Min. Start Temp: -18°C Lumen Maintenance: 70% @ 60,000 hrs Power Factor: >0.95 Rated Life: 36,000 hrs THD: <15 Voltage: 120V Warranty: 3 Years Wattage: 18 watt Document Specification Sheet Installation Manual

Description The RA3-7G is a 7 watt 3" gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations. Features Durable airtight aluminum body with adjustable gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source. This general application light fixture features a 7 watts LED module that maintains uniform intensity producing up to 650 Lumens; with a typical CRI of 90. 100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers (See specification sheet for listing of compatible dimmers) The fixture lens provides 45° beam spread. Includes two spring loaded clips to attached to any ceiling material Extruded aluminum hardwire box with 170mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" cable from driver to fixture. Three "Quick connect" push-in terminals for fast and easy wiring. Operating temperature range from -20°C to 40°C (-4°F to 104°F) Suitable for wet locations and suitable for insulated ceiling applications. Technical Information Application: Ceiling Recess Mount Approved Location: Wet / Insulated Ceilings Beam Angle: 45° CCT: 3000 K Certification: cETLus Class II: Yes Colour: White CRI: 90 Dimming: Yes Dimming Tech: TRIAC/ELV Energy Star: Yes Hole Cut: Ø 2¾ " (70mm) Input: 100-135V AC, 60Hz LM79: Yes LM80: Yes Lumens: 570 Lumens per Watt: 75 Power Factor: 0.95 Projected Life: 70% @ 36,000 hrs Warranty: Lifetime Wattage: 7W Document Specification Sheet Compatible Dimmers Installation

Description The LEDbar is an integrated linear light bar, that is available in various lengths, with a color selectable switch on the fixture. With dependable features that include a durable extruded aluminum frame, you can be confident in product longevity. Suitable for dry locations, this product is an optimal choice for kitchen spaces amongst other similar applications. The built-in, non-flicker, electronic LED driver provides dimming capability with Triac, ELV and incandescent dimmers. The ability to hardwire this fixture is accompanied by the capability to link up to 10 fixtures with an added no shadow linking connector to maximize light output. With a built in on/off switch, a choice of 6 lengths, LEDBAR gives you the perfect combination of design and functionality. ****POWER CORD NEED TO BE ORDER SEPARATELY. SEE ALFT6000-WH-3 HERE Features Durable extruded aluminum frame with frosted smooth lens. Suitable for dry location applications only. Can be use in closets. On-body On/Off switch is provided for individual control (Except 9" models) 5-Position 2700-5000K CCT select switch. Fixture is provided with built-in silent non-flicker electronic LED driver, 120V, 50/60HZ Fixture is 100-10% dimmable with industry standard TRIAC/ELV and incandescent dimmers Powered by LED integrated strip that maintains uniform intensity with 70% lumens at 60,000 hours with a rated life of 36,000 hours average life; at 90 CRI The fixture lens provides for 125° beam spread Complete with a joiner, these no shadow linking fixtures can be linked up to 2500 mA / 300 W. Hardware provided for mounting fixture to standard horizontal surfaces or vertical wall surface Operating temperature from -18°C to 40°C (0°F to 104°F) Technical Information Length: 34-7/16 in (874mm) Approved Location: Dry Beam Angle: 125° CCT Switch: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K Certification: cULus Connection Type: 3-Wire CRI: 90+ Dimming: Yes Dimming Technology: TRIAC / ELV Lumens: Up to 1310 Max. Operating Temp: 40°C Min. Start Temp: -18°C Lumen Maintenance: 70% @ 60,000 hrs Power Factor: >0.95 Rated Life: 36,000 hrs THD: <15 Voltage: 120V Warranty: 3 Years Wattage: 14 watt Document Specification Sheet Installation Manual

Description The LEDbar is an integrated linear light bar, that is available in various lengths, with a color selectable switch on the fixture. With dependable features that include a durable extruded aluminum frame, you can be confident in product longevity. Suitable for dry locations, this product is an optimal choice for kitchen spaces amongst other similar applications. The built-in, non-flicker, electronic LED driver provides dimming capability with Triac, ELV and incandescent dimmers. The ability to hardwire this fixture is accompanied by the capability to link up to 10 fixtures with an added no shadow linking connector to maximize light output. With a built in on/off switch, a choice of 6 lengths, LEDBAR gives you the perfect combination of design and functionality. ****POWER CORD NEED TO BE ORDER SEPARATELY. SEE ALFT6000-WH-3 HERE Features Durable extruded aluminum frame with frosted smooth lens. Suitable for dry location applications only. Can be use in closets. On-body On/Off switch is provided for individual control (Except 9" models) 5-Position 2700-5000K CCT select switch. Fixture is provided with built-in silent non-flicker electronic LED driver, 120V, 50/60HZ Fixture is 100-10% dimmable with industry standard TRIAC/ELV and incandescent dimmers Powered by LED integrated strip that maintains uniform intensity with 70% lumens at 60,000 hours with a rated life of 36,000 hours average life; at 90 CRI The fixture lens provides for 125° beam spread Complete with a joiner, these no shadow linking fixtures can be linked up to 2500 mA / 300 W. Hardware provided for mounting fixture to standard horizontal surfaces or vertical wall surface Operating temperature from -18°C to 40°C (0°F to 104°F) Technical Information Length: 58 in (1474mm) Approved Location: Dry Beam Angle: 125° CCT Switch: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K Certification: cULus Connection Type: 3-Wire CRI: 90+ Dimming: Yes Dimming Technology: TRIAC / ELV Lumens: Up to 1858 Max. Operating Temp: 40°C Min. Start Temp: -18°C Lumen Maintenance: 70% @ 60,000 hrs Power Factor: >0.95 Rated Life: 36,000 hrs THD: <15 Voltage: 120V Warranty: 3 Years Wattage: 22 watt Document Specification Sheet Installation Manual

Description This LED Matte Nickel puck light kit provides an even warm light that delivers enough illumination for any work surface or display, all while consuming less energy than their halogen equivalent. They provide task or accent illumination in residential and commercial indoor applications. Features A 2 watt per LED puck maintains a cool to the touch LED. The LEDs are rated for 50,000 hours. The opal glass shield provides for even lighting. LED puck light in warm white (3000K) color temperature, providing 130 lumen output per puck, 120° beam angle. Any two puck lights may be linked together with a maximum distance of 52". Up to five pucks from a 12V DC in-line driver (12W max) may be linked in-line (Maximum distance from driver to last puck is 10m (33') Theses pucks can be surface mounted or recessed. Surface mounting is achieved with included mounting ring (mounting hardware included), while recessed mounting is achieved with the pressure clips provided on the puck light. Can be dimmed with a dimming driver (Not included) Operating temperature from -20°C to 55°C (-4°F to 131°F) Kit includes Three LED puck lights One 6' power cord One 12V (12 watt max) in-line non-dimming LED driver Five port wiring hub Mounting Hardware Rotary switch Document Specification sheet Installation Guide Brochure

Description The RA4-12 is a 12 watt 4" round gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations. Features Durable airtight aluminum body with adjustable gimbal. Includes Anodized blue heat sink to provide maximum airflow for the LED light source This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 840 lumens, with a typical CRI of 90. Selectable color, from 2700k to 5000k 100%-10% dimming capability. Compatible with industry standard TRIAC/ELV dimmers. The lens provides 40° beam spread Includes two spring loaded clips to attached to any ceiling material Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings Three "quick connect" push-in terminals for fast and easy wiring Operating temperature of -20°C to 40°C (-4°F to 104°F) Suitable for wet locations Approved for direct contact with insulation Technical Information Application: Ceiling Recess Mount Approved Location: Wet / Insulated Ceilings Beam Angle: 40° CCT (color selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K Certification: cETLus Class II: Yes Color: Black CRI: 90 Dimming: Yes Dimming Tech: Forward/reverse-phase, TRIAC/ELV Energy Star: Yes Hole Cut: Ø 4¼ " (108mm) Input: 100-135V AC, 60Hz Lumens: Up to 840 Lumens per Watt: Up to 71 Power Factor: 0.9 Projected Life: 70% @ 50,000 hrs Warranty: Lifetime Wattage: 12W Document Brochure Installation Specification Sheet Compatible Dimmers

Description The OnCloud Smart Wi-Fi Dimmer works with any 120V dimmable bulb or fixture. Works in single pole applications Features Durable polycarbonate body with snap-on faceplate Provides a maximum output of 400W for incandescent bulbs and 150W for fluorescent and LED bulbs Features an ON/OFF press and a 7 level touch slider for dimming functionality Certified IEEE 802.11 b/g Wi-Fi 2.4Ghz radio The smart Wi-Fi dimmer installs just like a regular dimmer. Replaces single pole switches (not compatible with 3-way switches) NEUTRAL WIRE REQUIRED Can be controlled via the WiZ App (works with iOS and Android) from anywhere. Voice control can also be achieved by integrating the app with most smart speakers. Works with Google Assistant, Siri, Alexa and IFTTT Operating temperature from -5°C to 45°C (23°F to 113°F) Suitable for indoor dry locations use only Important Notes When dimming traditional CFL / LEDs, ensure they are marked as dimmable Low end dimming adjustments are software controlled in the WiZ App Wi-Fi network required (2.4GHz only) Technical Information Approved Location: Dry / Indoor Input Voltage: 120Vac - 60 Hz Certification: cULus Maximum Output: Incandescent: 400W; Fluorescent: 150W; LED: 150W Maximum Power: 400W Output Current: 3.3A Power Consumption: OFF: 0.76W; 10%: 0.79W; 25%: 0.85W; 50%: 0.90W; 75%: 0.94W; 100%: 1.15W Wireless Frequency: 2.4GHz Wireless Standard: IEEE 802.11 b/g Warranty: 3-Year Document Specification Sheet Installation Instruction OnCloud Brochure

Description This LED White puck light kit provides an even warm light that delivers enough illumination for any work surface or display, all while consuming less energy than their halogen equivalent. They provide task or accent illumination in residential and commercial indoor applications. Features A 2 watt per LED puck maintains a cool to the touch LED. The LEDs are rated for 50,000 hours. The opal glass shield provides for even lighting. LED puck light in warm white (3000K) color temperature, providing 130 lumen output per puck, 120° beam angle. Any two puck lights may be linked together with a maximum distance of 52". Up to five pucks from a 12V DC in-line driver (12W max) may be linked in-line (Maximum distance from driver to last puck is 10m (33') Theses pucks can be surface mounted or recessed. Surface mounting is achieved with included mounting ring (mounting hardware included), while recessed mounting is achieved with the pressure clips provided on the puck light. Can be dimmed with a dimming driver (Not included) Operating temperature from -20°C to 55°C (-4°F to 131°F) Kit includes Three LED puck lights One 6' power cord One 12V (12 watt max) in-line non-dimming LED driver Five port wiring hub Mounting Hardware Rotary switch Document Specification sheet Installation Guide Brochure

Description Full color and white tuning is now available on the classic SlimLED style. Plus, trims can be magnetically interchanged on site after installation to match your style. If you're updating a room, you can also get the SlimLED OnCloud in a 4-pack kit with a Room Controller so you can turn the lights on/off, dim, change the white, or select through the 4-favorite modes all from the wall. Features Durable airtight aluminum body with UV stable paint and white PMMA diffuser lens for low glare. Includes silicone gasket for wet location applications Includes white and black interchangeable magnetic trims This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 800 lumens, with a typical CRI of 90. RGB and tunable White (2700 K to 5000 K) 100%-10% Wi-Fi dimming capability. Dimming controlled via the WiZ App and Room Controller Lens provides 110° beam spread Includes two spring loaded clips to attached to any ceiling material Extruded aluminum hardwire box with 300mA Wi-Fi dimmable LED driver with 100-135V AC input. Includes an 18" wire with 6-pin DC connector between driver and fixture Can be controlled via the WiZ App (Works with iOS and Android) from anywhere. Voice control can also be achieved by integrating the app with most smart speakers. Works with Google Assistant, Siri, Alexa and IFTTT. "Quick connect" push-in terminals in hardwire box for fast and easy wiring Minimum starting temperature of -40°C (-40°F) Suitable for wet locations, indoor or outdoor Approved for direct contact with insulation Technical Information Application: Ceiling Recess Mount Approved Location: Wet / Insulated Ceilings / Indoor / Outdoor Beam Angle: 110° CCT: RGB + Tunable White (2700 K - 5000 K) Certification: cETLus Class II: Yes Color: White trim included CRI: 90 Dimming: Yes Dimming Tech: Wi-Fi Dimming (via WiZ App) Hole Cut: Ø 4¼ " (108mm) Input: 100-135V AC, 60Hz Lumens: up to 800 Lumens per Watt: Up to 76 Power Factor: >0.9 Projected Life: 70% @ 50,000 hrs Warranty: 3-Year Wattage: 12W Document Specification Sheet Installation

Description 24" Flexible wire connector used to join the LED FluoroBar. Features For 120V AC Power Input Push in easy connectors to ensure tight fit between fixtures Document Brochure Specification sheet

Description The LEDbar is an integrated linear light bar, that is available in various lengths, with a color selectable switch on the fixture. With dependable features that include a durable extruded aluminum frame, you can be confident in product longevity. Suitable for dry locations, this product is an optimal choice for kitchen spaces amongst other similar applications. The built-in, non-flicker, electronic LED driver provides dimming capability with Triac, ELV and incandescent dimmers. The ability to hardwire this fixture is accompanied by the capability to link up to 10 fixtures with an added no shadow linking connector to maximize light output. With a built in on/off switch, a choice of 6 lengths, LEDBAR gives you the perfect combination of design and functionality. ****POWER CORD NEED TO BE ORDER SEPARATELY. SEE ALFT6000-WH-3 HERE Features Durable extruded aluminum frame with frosted smooth lens. Suitable for dry location applications only. Can be use in closets. On-body On/Off switch is provided for individual control (Except 9" models) 5-Position 2700-5000K CCT select switch. Fixture is provided with built-in silent non-flicker electronic LED driver, 120V, 50/60HZ Fixture is 100-10% dimmable with industry standard TRIAC/ELV and incandescent dimmers Powered by LED integrated strip that maintains uniform intensity with 70% lumens at 60,000 hours with a rated life of 36,000 hours average life; at 90 CRI The fixture lens provides for 125° beam spread Complete with a joiner, these no shadow linking fixtures can be linked up to 2500 mA / 300 W. Hardware provided for mounting fixture to standard horizontal surfaces or vertical wall surface Operating temperature from -18°C to 40°C (0°F to 104°F) Technical Information Length: 13-1/2 in (343mm) Approved Location: Dry Beam Angle: 125° CCT Switch: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K Certification: cULus Connection Type: 3-Wire CRI: 90+ Dimming: Yes Dimming Technology: TRIAC / ELV Lumens: Up to 396 Max. Operating Temp: 40°C Min. Start Temp: -18°C Lumen Maintenance: 70% @ 60,000 hrs Power Factor: >0.95 Rated Life: 36,000 hrs THD: <15 Voltage: 120V Warranty: 3 Years Wattage: 5 watt Document Specification Sheet Installation Manual

Description Power supply cord for LED FluoroBar systems. 72" long. Features For 12V ac power input. For use with multi linked LED Fluorobar as main power supply cUL listed for U.S and Canada Input/Output of 120V AC Suitable for indoor use only Documents Brochure Spec Sheet
