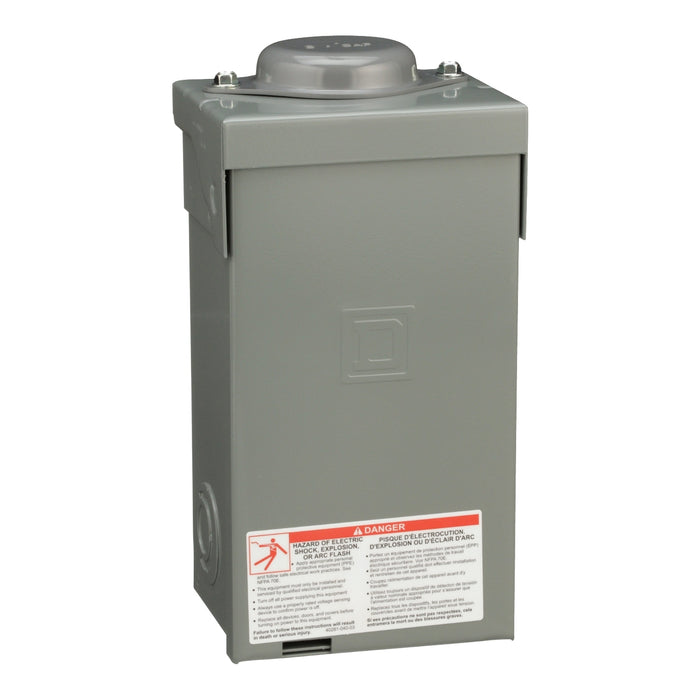

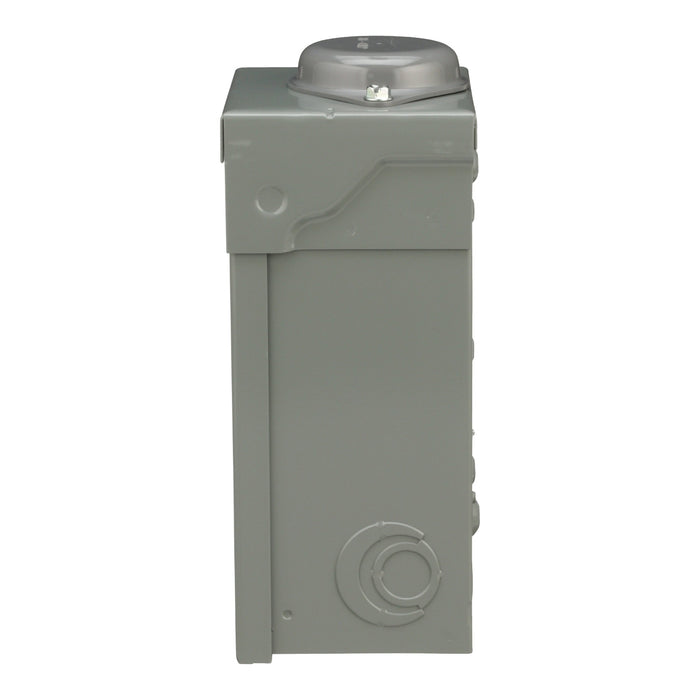

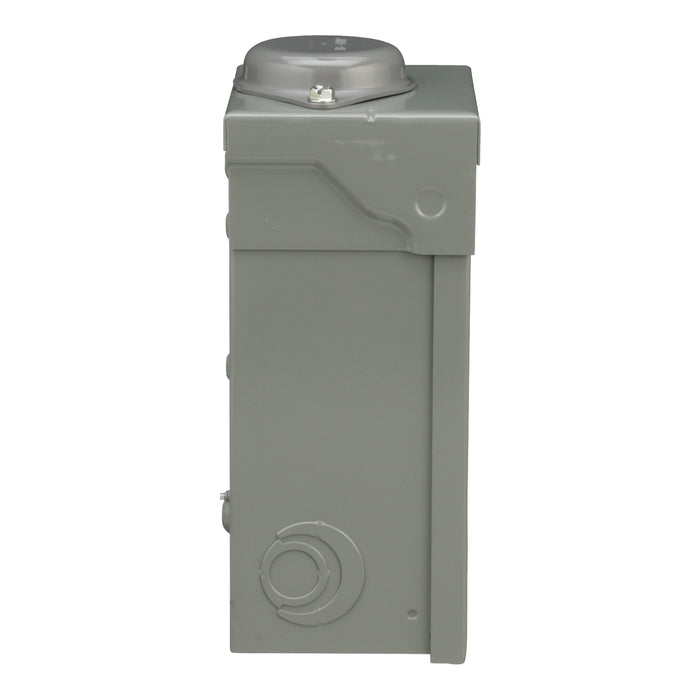

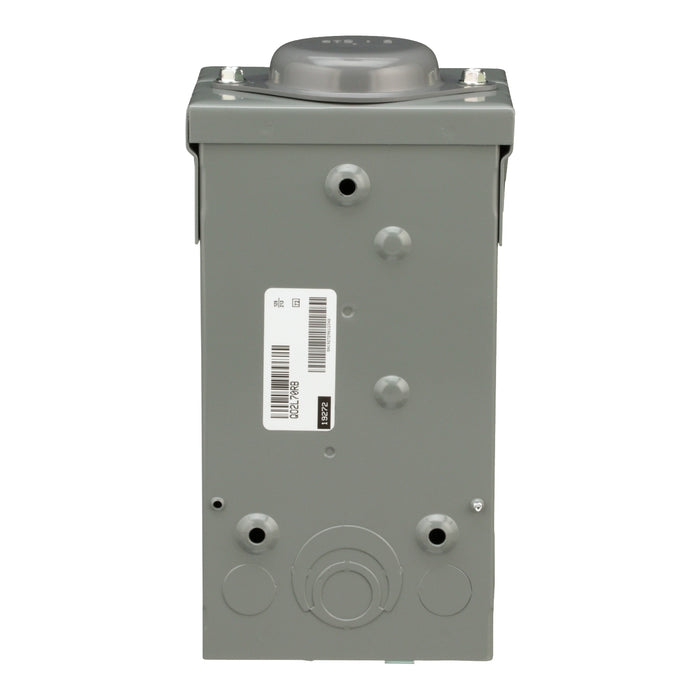

Square D Ld Ctr Qo Mlo 240V 70A 1Ph 2Sp Csa List

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 2 circuits. This system provides 70A fixed main lugs in a NEMA 3R enclosure. This product is UL rated.

Features

Provides superior performance and durability Straight in wiring saves wire, labor, and time Faster installation using PoN breakers that connect directly 50% more terminations for clutter-free wiring Complies with UL 67 listed, CSA, and IEC standards

Technical Information

Rated Current: 70 A Rated Operational Voltage: 120/240 V AC Ambient Air Temperature for Operation: -5 °C|40 °C AWG_gauge: 14 AWG...2 AWG aluminum/copper Cover_type: surface cover Length: 3.94 in Device_Composition: grounding bar (ordered separately) Electrical_Connection: lugs Enclosure_material: welded galvannealed steel Height: 9.29 in loadcentre_type: Fixed Mains (lugs) Mounting_mode: vertical NEMA_Degree_of_Protection: NEMA 3R weatherproof enclosure net_weight: 5.07 lbs Network_number_of_phases: 1 phase 3 wires Number_of_circuits: 2 Number_of_spaces: 2 Number_of_tandem_circuit_breakers: 0 Product_Certifications: cULus Product_or_Component_Type: Loadcentre Range_of_Product: QO Short_circuit_current: 10 kA Surface_finish: baked enamel grey Tightening_torque: main lugs 35 lb.in, 12 AWG...10 AWG, aluminum/copper|main lugs 35 lb.in, 14 AWG...10 AWG, aluminum/copper|main lugs 40 lb.in, 8 AWG...4 AWG, aluminum/copper|main lugs 45 lb.in, 3 AWG, aluminum/copper WEEE_Label: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins Width: 4.76 in
