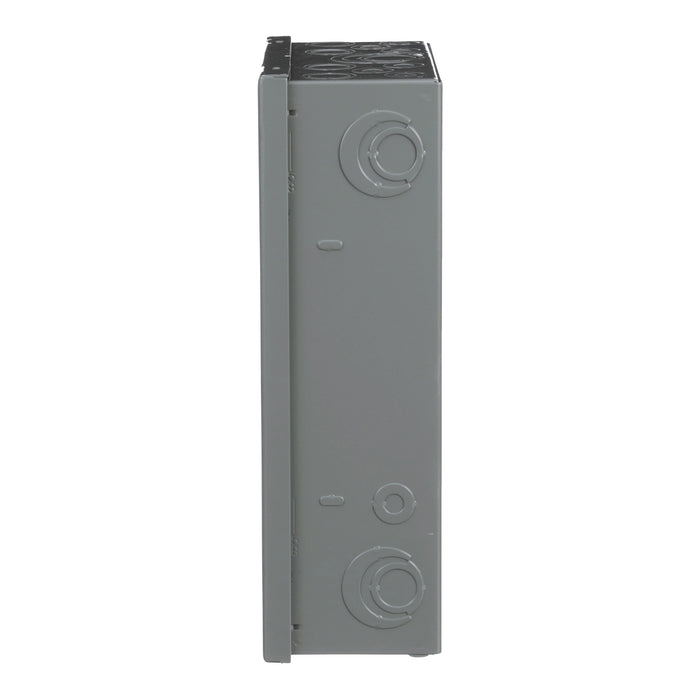

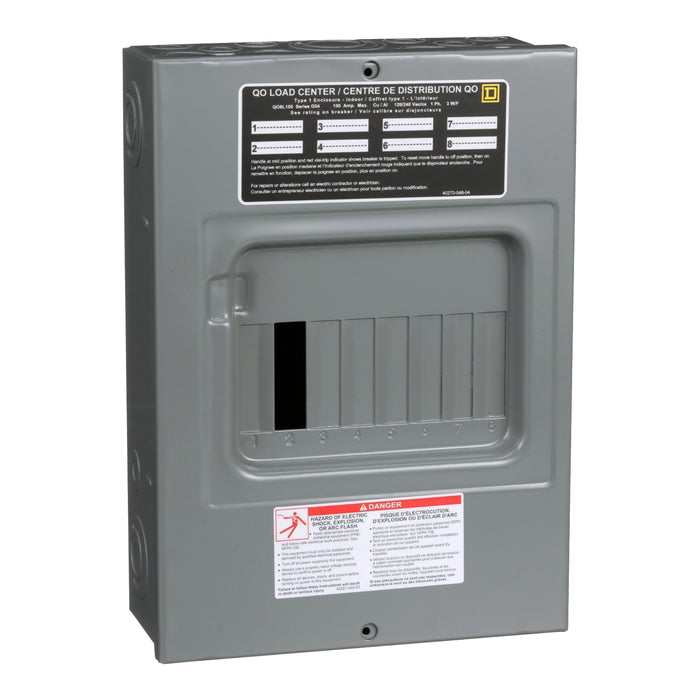

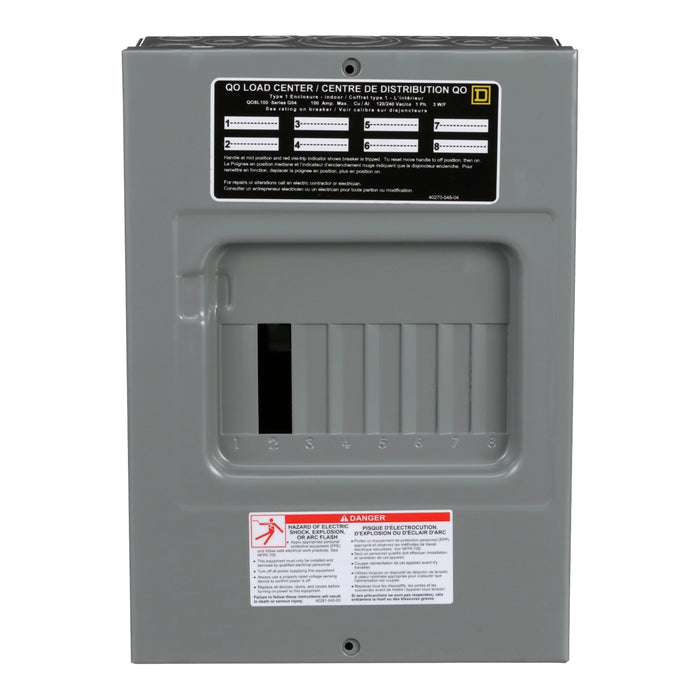

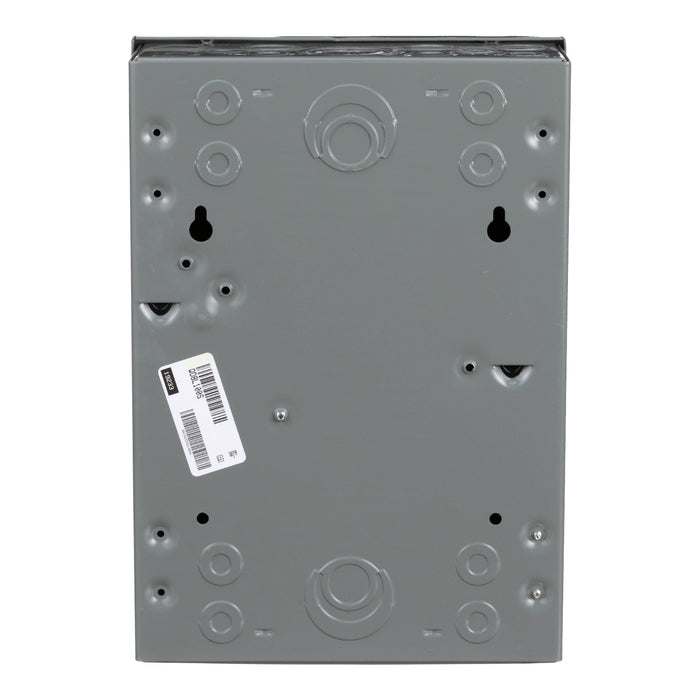

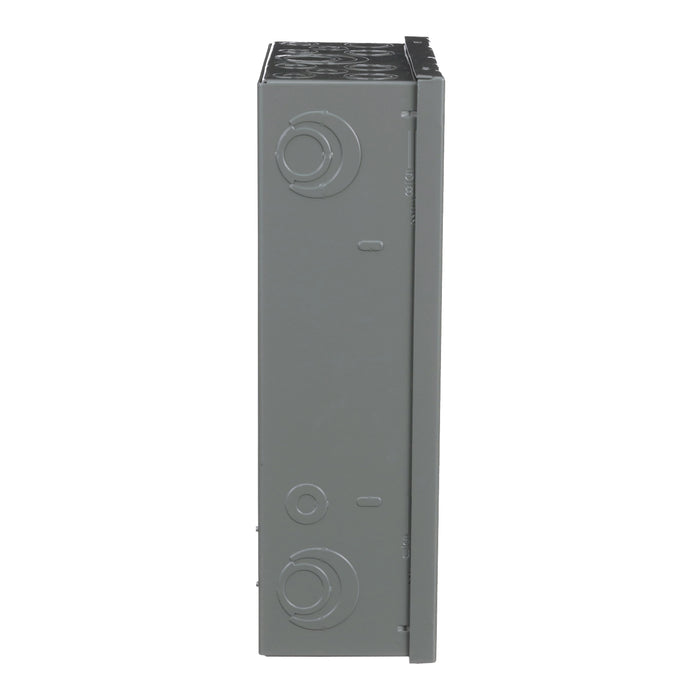

Square D Ld Ctr Qo Mlo 240V 100A 1Ph 8Sp Csa List

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 8 circuits. This system provides 100A convertible main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is UL rated. The load center is CSA certified.

Features

QO Load center provides superior performance and durability Straight in wiring saves wire, labor, and time Compatible with any Square D™ QO Circuit Breaker The fully distributed neutral bar allows for QO™ plug-on neutral circuit breakers in any space Complies with UL 67 listed, CSA, and IEC standards

Technical Information

Rated Current: 100 A Rated Operational Voltage: 120/240 V AC Ambient Air Temperature for Operation: -5 °C|40 °C AWG_gauge: 14 AWG...2 AWG aluminum/copper Cover_type: surface cover Length: 3.74 in Device_Composition: grounding bar (ordered separately) Electrical_Connection: lugs Enclosure_material: welded sheet steel Height: 12.56 in Installation_direction: vertical loadcentre_type: Fixed Mains (lugs) NEMA_Degree_of_Protection: NEMA 1 indoor enclosure net_weight: 7.85 lbs Network_number_of_phases: 1 phase 3 wires Number_of_circuits: 8 Number_of_spaces: 8 Number_of_tandem_circuit_breakers: 0 Product_Certifications: cULus Product_or_Component_Type: Loadcentre Range_of_Product: QO Short_circuit_current: 10 kA Surface_finish: baked enamel grey Tightening_torque: main lugs 50 lb.in, 6 AWG...1 AWG, aluminum/copper Width: 8.9 in
