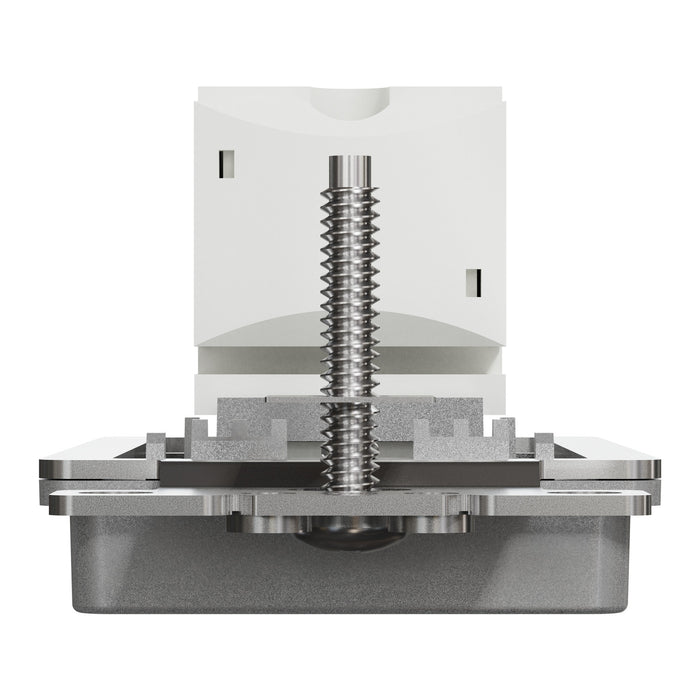

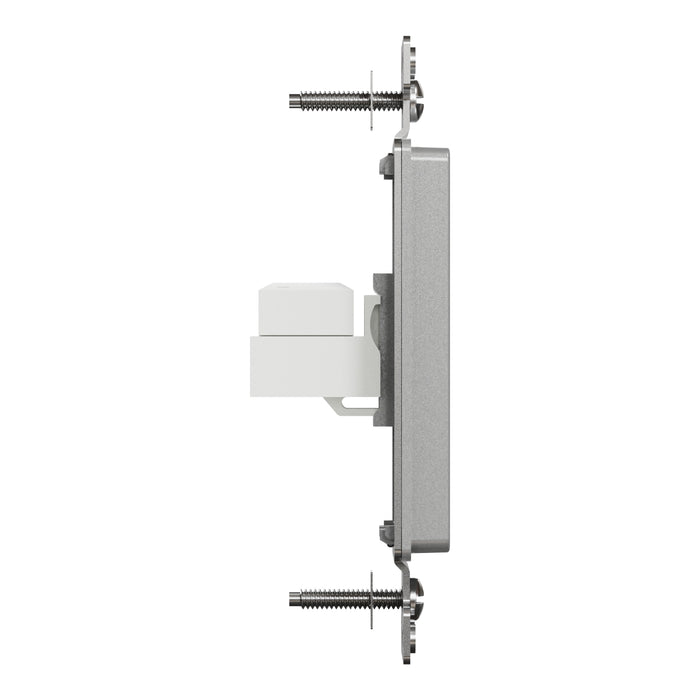

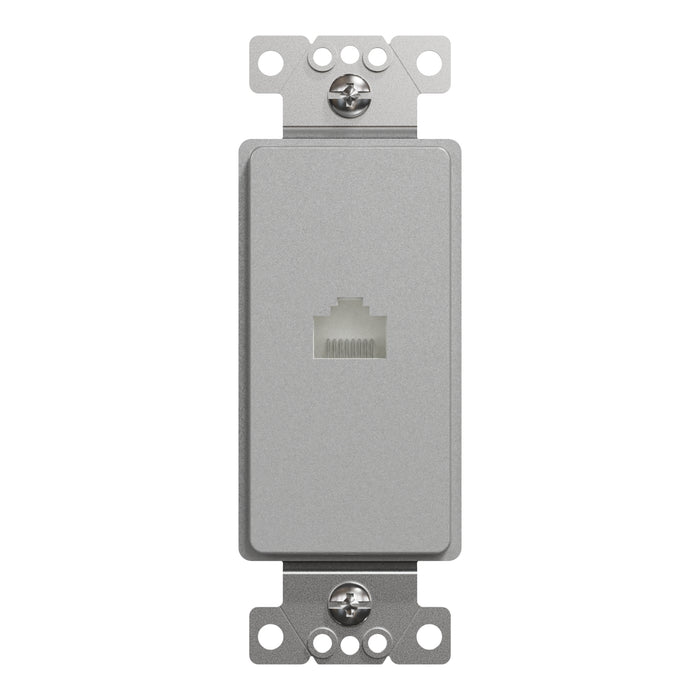

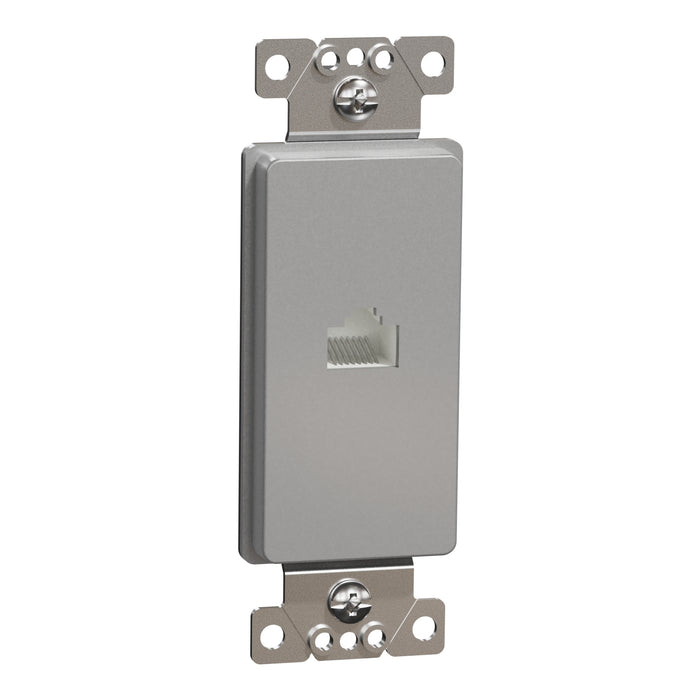

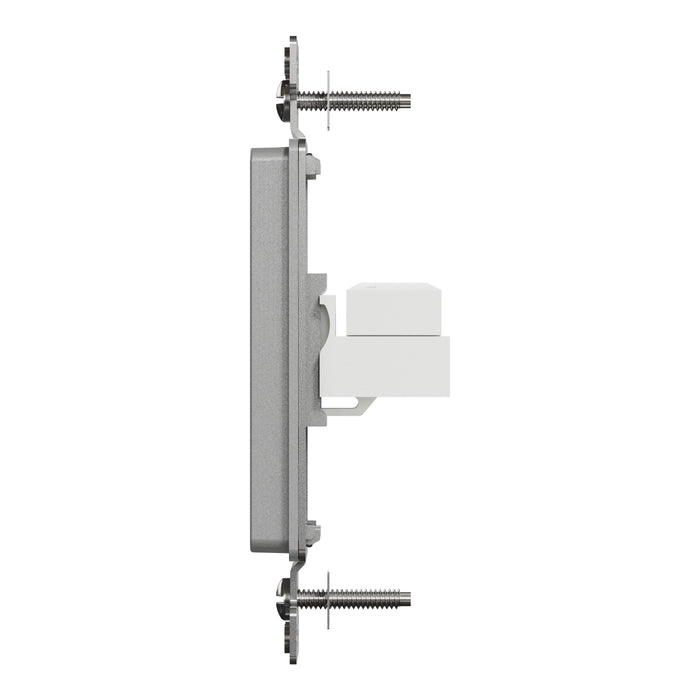

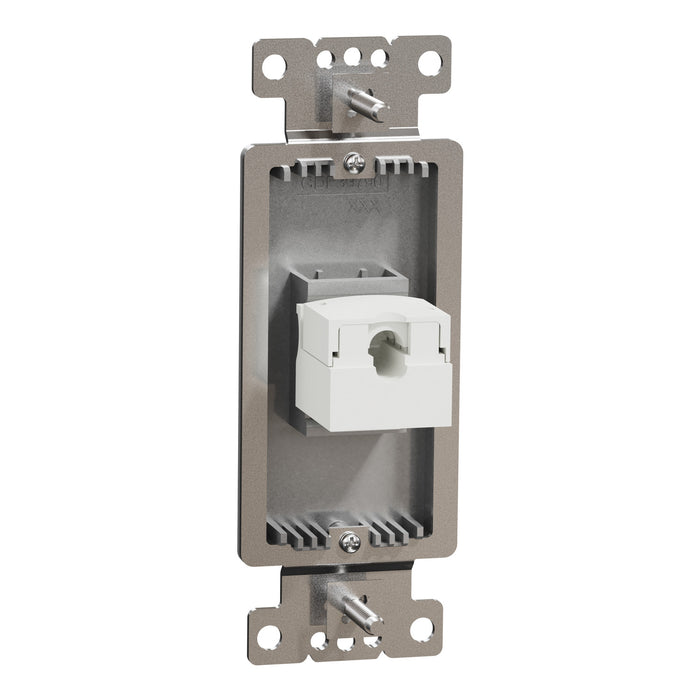

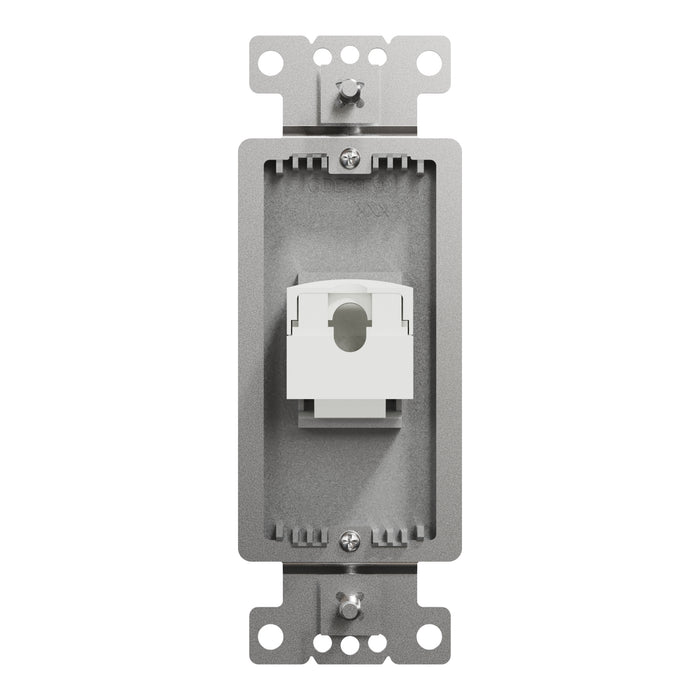

Schneider Electric Square D Data Cat 6 Rj45 Strap Gy

Description

The Square D X Series Category 6 RJ45 Data Jack Decorator Strap offers an array of new features, such as flush mounting, easy installation, and connectivity. This device supports your data networking with cat 6 insert and benefits from RJ45 connector. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 1 piece, its mounting mode is made by screws. It fits in any decorator opening and is easy to clean. This combination decorator strap benefits from an elegant matte finishing, constituting an added-value for your interior design. This device is compatible with any CAT6 cable for ethernet connection and other networks. It features a 110 punchdown with stuffer cap for wire retention. It has a width of 37 mm, a height of 103 mm and a depth of 33 mm. By satisfying the UL 1863 standard, this data back decorator strap is ETL certified. This device enables flush mounting. The dimensions are (W) 37mm x (H) 103mm x (D) 33mm. This device is grey with matte surface finish. This device comes with painted surface treatment. This device is compliant with UL 1863 standard and ETL certification.

Features

X Series Category 6 RJ45 Data Jack decorator strap Preconfigured one port strap with Cat 6 RJ45 port Compatible with Category 6 cable for ethernet and other networks 111 Punchdown on rear with stuffer cap for wire retention

Technical Information

AWG_gauge: 24 AWG...22 AWG stranded|26 AWG...22 AWG solid Cable_shielding_type: UTP Colour: grey Colour_code: 568 A/B Communication_network_category: 6 Contacts_material: phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel Length: 1.3 in Device_application: communication Device_mounting: flush Device_presentation: mechanism with fixing frame Height: 4.06 in Market_segment: residential Mounting_mode: by screws Number_of_contact_position: 8 Number_of_contacts: 8 Number_of_gangs: 1 gang Product_Certifications: ETL verified Product_or_Component_Type: data socket Quantity_per_set: 1 piece Range: Square D X Series Surface_finish: matt Type_of_Cable: 4 pairs cable Width: 1.46 in
