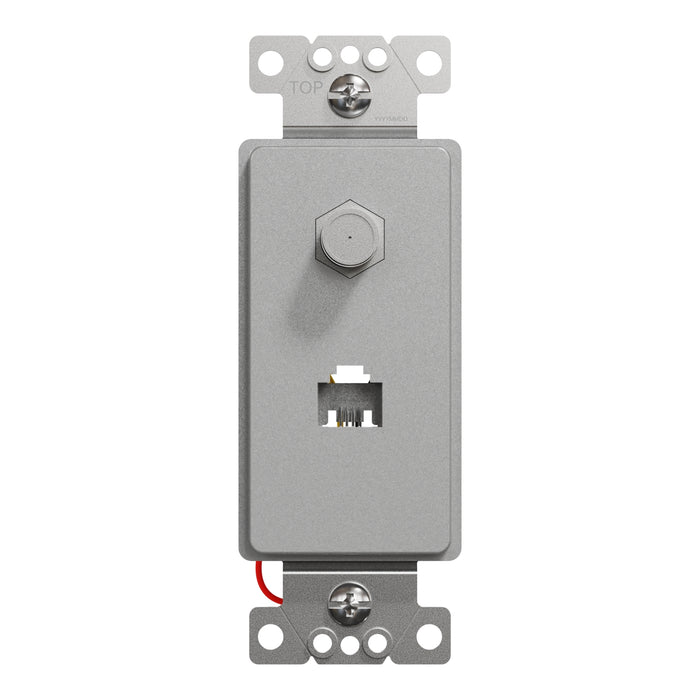

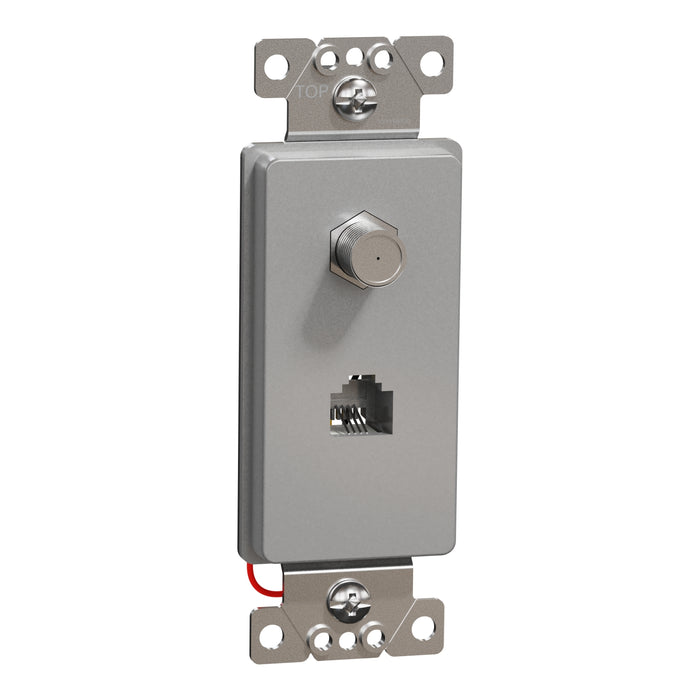

Schneider Electric Square D Catv/Tel F/Rj11 4P4C Strap Gy

Description

The Square D X Series Combination RJ11 Telephone Jack CATV F Coupler Decorator Strap offers an array of new features, such as flush mounting, easy installation, and connectivity. This device supports your cable TV as well as your traditional telephone and benefits from RJ11 connector. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 1 piece, its mounting mode is made by screws. It fits in any decorator opening and is easy to clean. This combination decorator strap benefits from an elegant matte finishing, constituting an added-value for your interior design. With a preconfigured 2 port strap with F coaxial connector and RJ11 telephone jack, this device supports your cable TV as well as your traditional telephone and benefits from RJ11 connector. The RJ11 connector is a four-position four-conductor two-line phone jack. It has a width of 37 mm, a height of 103 mm and a depth of 90 mm. By satisfying the UL 1863 standard, this TV/Telephone decorator strap is ETL certified. This device enables flush mounting. The dimensions are (W) 37mm x (H) 103mm x (D) 90mm. This device is grey with matte surface finish. This device comes with painted surface treatment. This device is compliant with UL 1863 standard and ETL certification.

Features

X Series combination RJ11 telephone jack and Cable TV F Coupler decorator strap Preconfigured 2 port strap with F coaxial connector and RJ11 telephone jack Four-position four-conductor two-line phone jack

Technical Information

Colour: grey Connector_type: F connectors|RJ11 Contacts_material: phosphor bronze with nickel plating Length: 3.54 in Device_application: communication Device_mounting: flush Device_presentation: mechanism with fixing frame Electrical_circuit_type: CATV|telephone Height: 4.06 in Market_segment: residential Mounting_mode: by screws Number_of_contact_position: 4 Number_of_contacts: 4 Number_of_gangs: 1 gang Product_Certifications: ETL verified Product_or_Component_Type: TV + telephone socket Quantity_per_set: 1 piece Range: Square D X Series Surface_finish: matt Type_of_signal: DATA Width: 1.46 in
