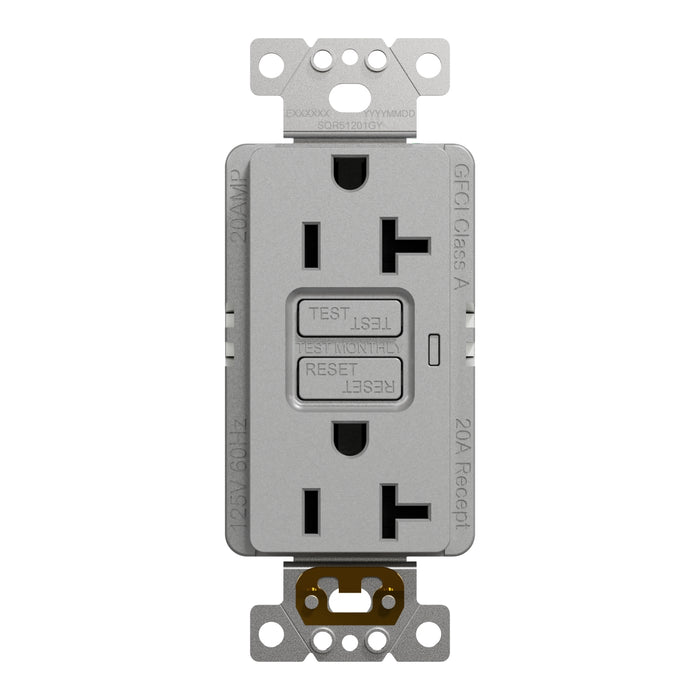

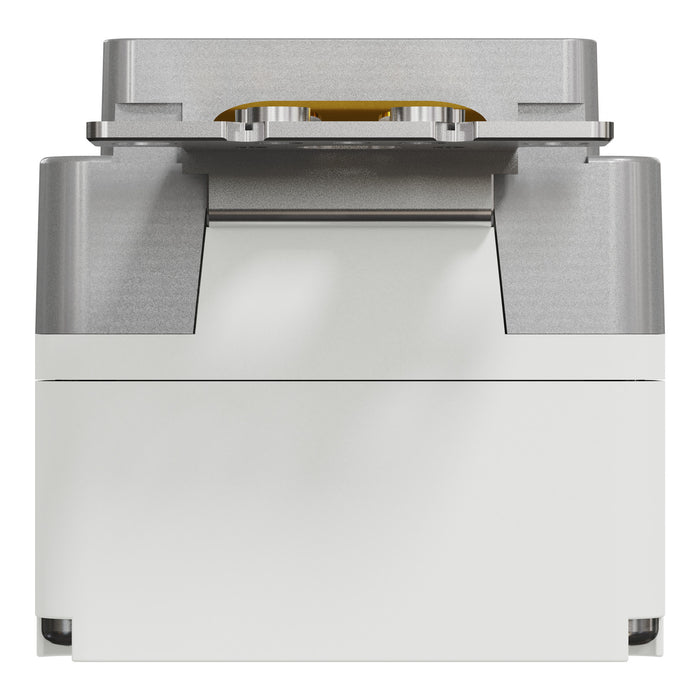

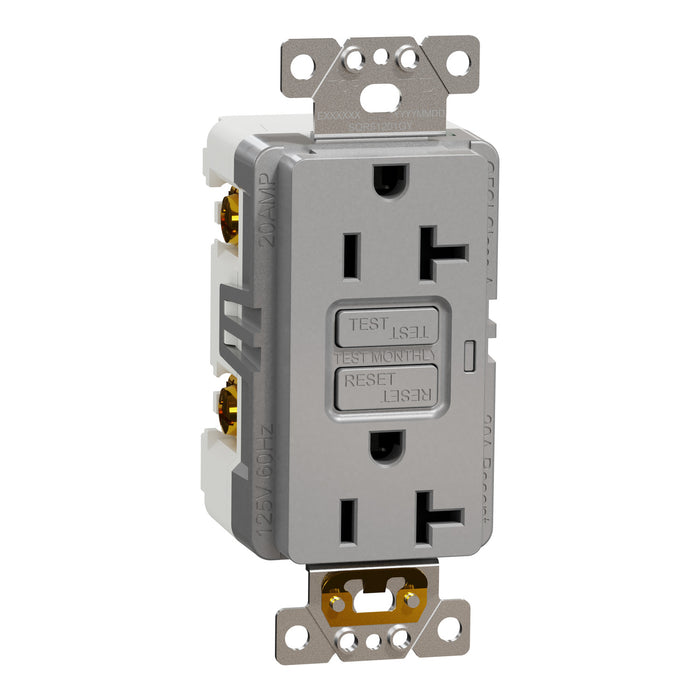

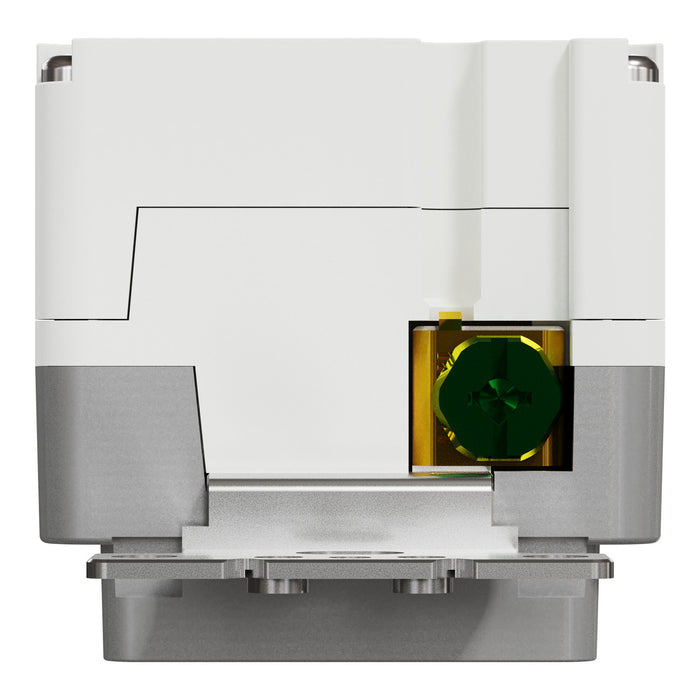

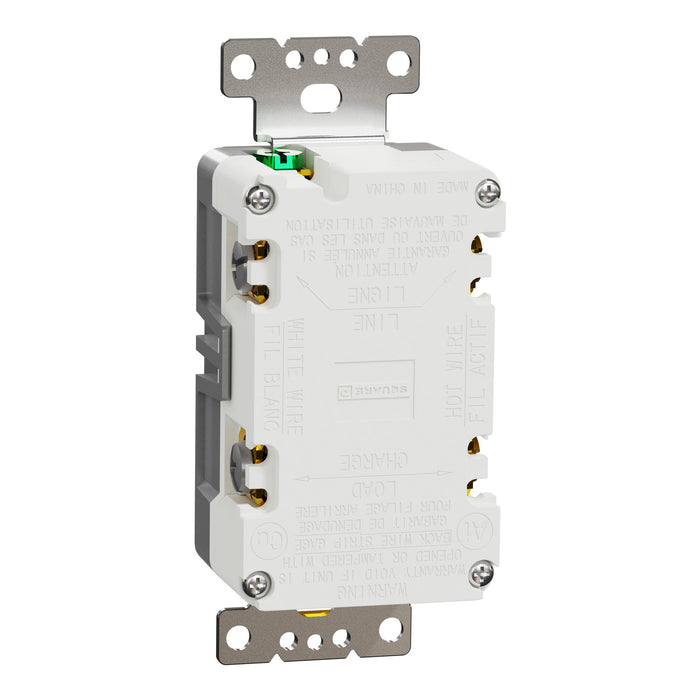

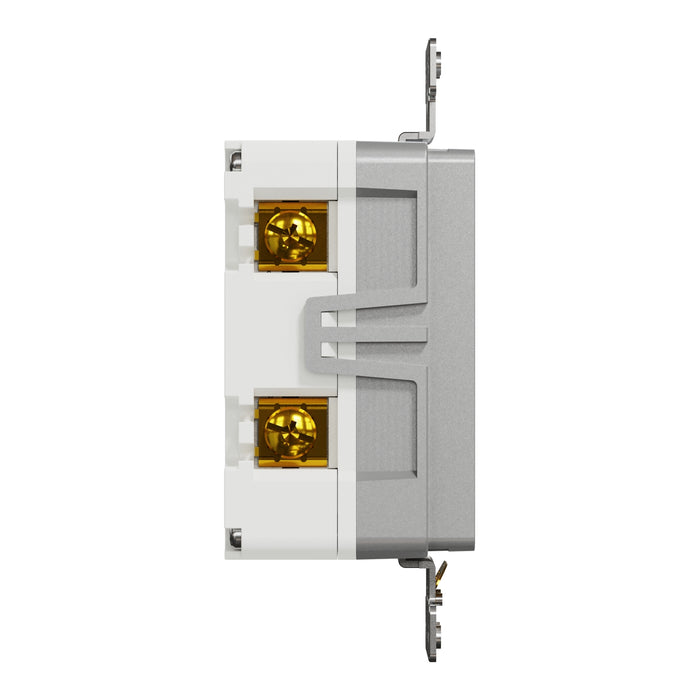

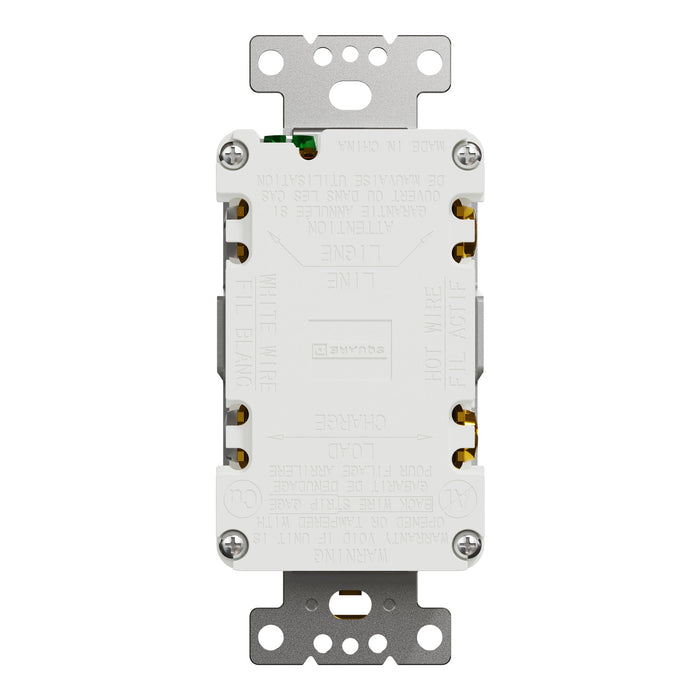

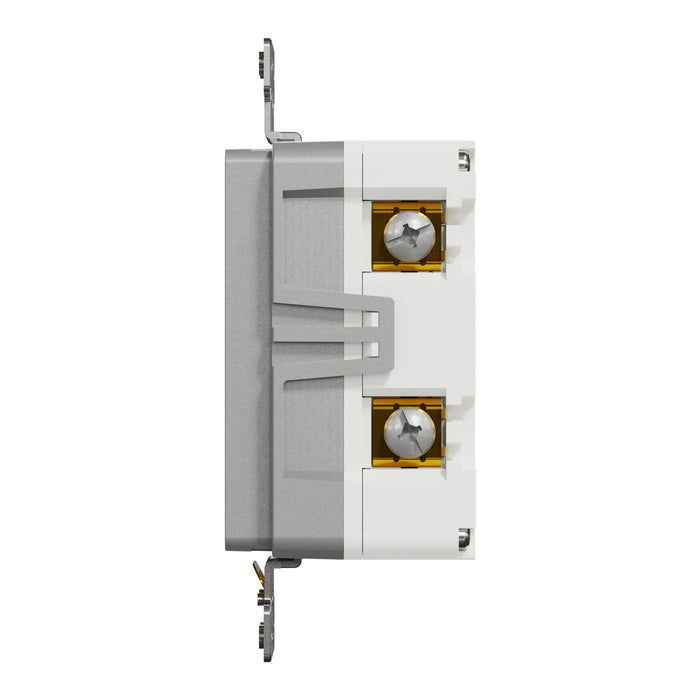

Schneider Electric Tr Gfci 20A Receptacle Comm Gy

Description

The Square D X Series 20A 125V Tamper Resistant GFCI Duplex Decorator Receptacle with Back Wire Clamps provides enhanced safety for kitchen and bathrooms. This outlet socket has a 20A current rating. The rated operational voltage of this device is 120VAC. Each outlet socket unit has two outlet sockets and is used to supply power. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look in your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. With discrete, tamper-resistant black shutters and auto-monitoring testing, it's ready to protect your devices. This receptacle is tamper resistant with discrete black shutters. This socket outlet has a grey frame. The self-grounding feature is a brass ground contact which provides ground retention to metal boxes that eliminates the need to use a ground screw. Its Ue rated operational voltage is 125VAC. Its Ie rated operational current is 20A. By satisfying the ICES-003, UL 498, UL 943 standards, this socket outlet is cULus certified. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices. The dimensions are (W) 42mm (1.65in) x (H) 103mm (4.06in) x (D) 41mm (1.61in). Its made of impact resistant thermoplastic material and its easy to clean. This device is compliant with ICES-003, UL 498, UL 943 standard and cULus certification.

Features

Residential decorator outlet Self-testing GFCI outlet for kitchen and bathroom safety Child-safe design, with tamper-resistant shutters Wall plate required, sold separately Navigate safely in the dark with sensor-enabled LED outlets

Technical Information

Rated Operational Current AC: 20 A Rated Operational Voltage: 125 V Body_type: decorator Colour: grey Power_Wiring_AWG: earth 1 screw terminal copper|phase and neutral 4 screw terminal copper Length: 1.61 in Device_application: power supply Device_mounting: flush Device_presentation: mechanism with fixing frame Earth_circuit: self earthing Height: 4.06 in Market_segment: commercial Mounting_mode: by screws Network_frequency: 60 Hz Network_type: AC Number_of_gangs: 1 gang Number_of_modules: 1 Outlet_poles_configuration: 2P + E Outlet_standard: NEMA Product_Certifications: cULus Product_or_Component_Type: socket-outlet Protection_type: GFCI Quantity_per_set: 1 piece Range: Square D X Series Socket_additional_information: tamper resistant Socket_number: 2 Surface_finish: matt Rated Operational Voltage 2: 125 V Width: 1.65 in
