Schneider Electric Switch Resi Single Pole Gy

Description

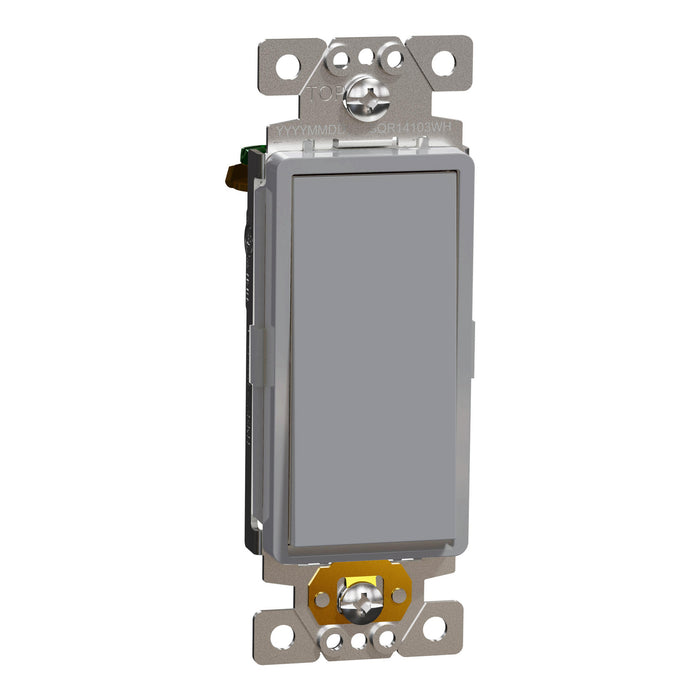

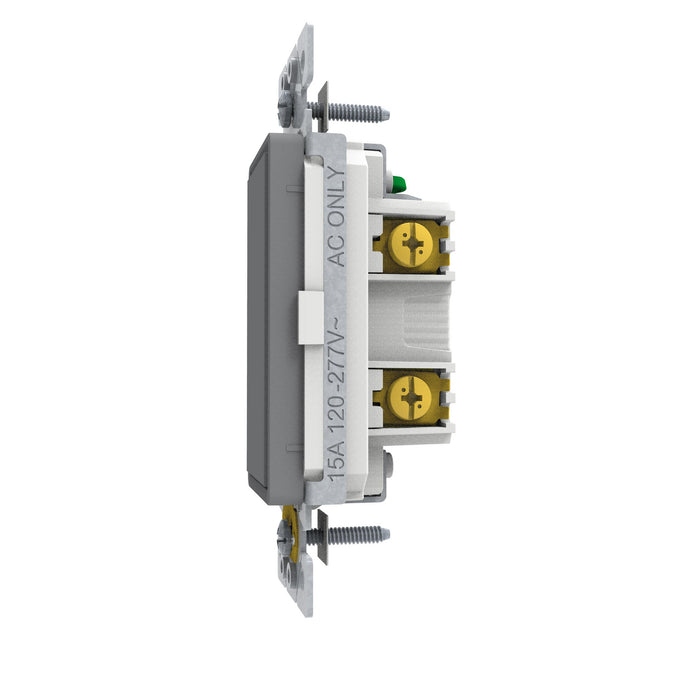

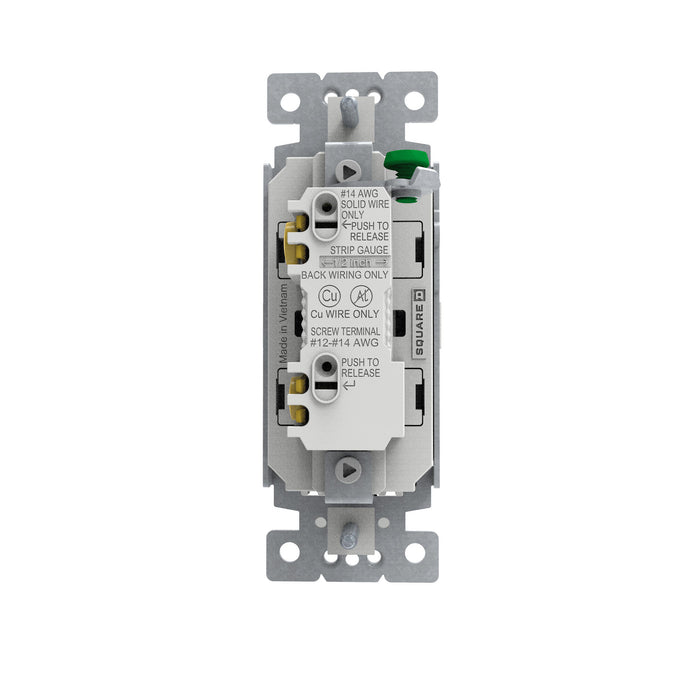

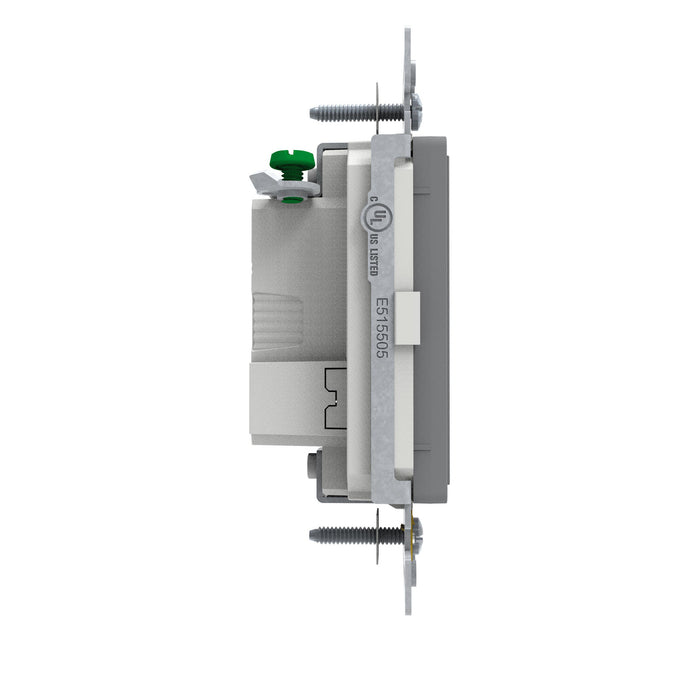

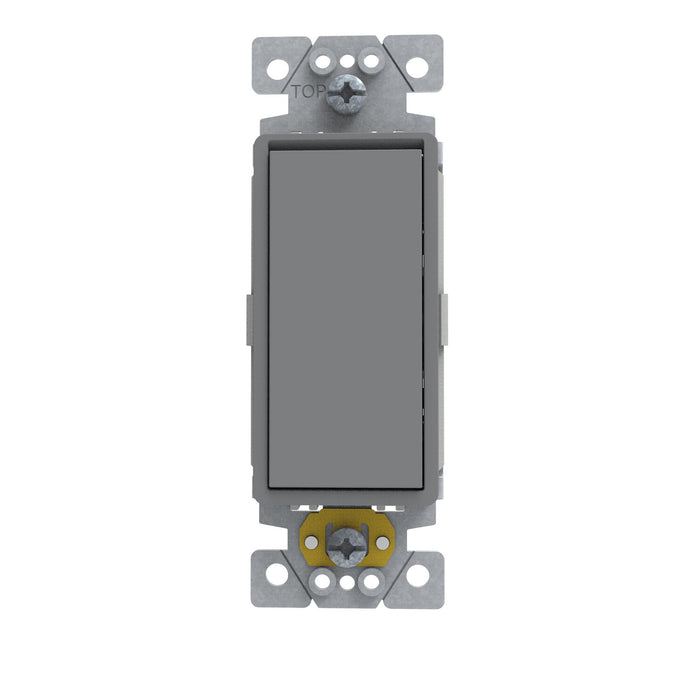

The Square D X Series 15A Single-Pole Switch Module with side wire clamps (with gray rocker cover plate) allows you to swap out faceplates quickly and easily without removing the switch and rewiring. The rated operational voltage of this switch is 120V and 277V. Its unique patented switch module is designed to support the swap out of the color rocker cover plate that easily snaps into place for a modern, flush facing finish to your walls. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This device is compatible with the rocker plate, so that the personalization of your interior design with many styles of décor is possible. It supports upgrading the color or design of the switch after initial installation without removing the switch from the wall. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. The connection is screw terminals.

Features

Patented switch module design supports the swap out of color rocker plate Self grounded with brass ground contact to ensure device’s ground retention to metal boxes Silver alloy switch actuator contacts assure long lasting reliable performance Combo screw heads accept slotted, Phillips, and Robertson Square tools Zinc plated steel mounting strap for rust resistance

Technical Information

Rated Operational Current AC: 15 A Rated Operational Voltage: 120 V Actuator: rocker Colour: grey Colour_tint: grey Power_Wiring_AWG: phase and neutral 2 screw terminal 14 AWG...12 AWG) copper Device_application: control Device_mounting: flush Device_presentation: mechanism with fixing frame Earth_circuit: self earthing Main_colour_tint: grey Market_segment: residential Mounting_mode: by screws Network_frequency: 60 Hz Network_type: AC Number_of_gangs: 1 gang Number_of_modules: 1 Number_of_poles: 1 Number_of_rocker: 1 Product_Certifications: cULus Product_or_Component_Type: switch Range: Square D X Series Surface_finish: matt Switch_function: 1-way Rated Operational Voltage 2: 120 V
