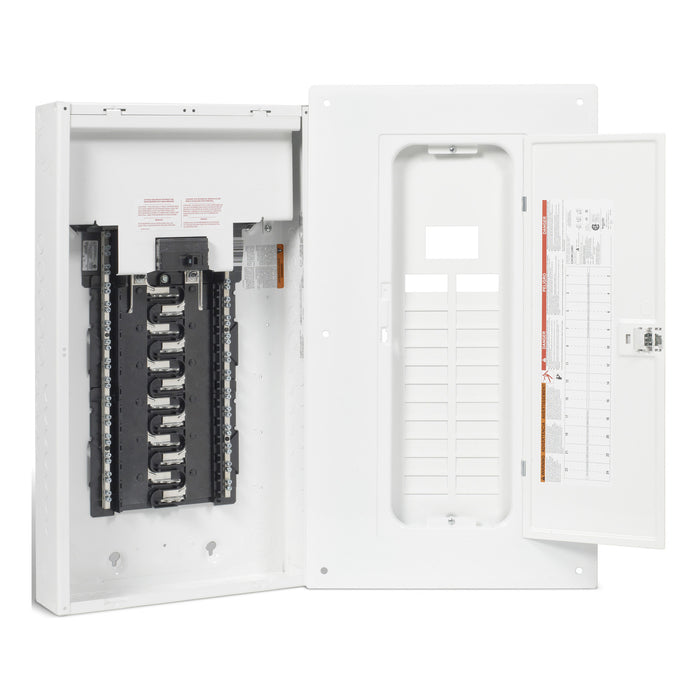

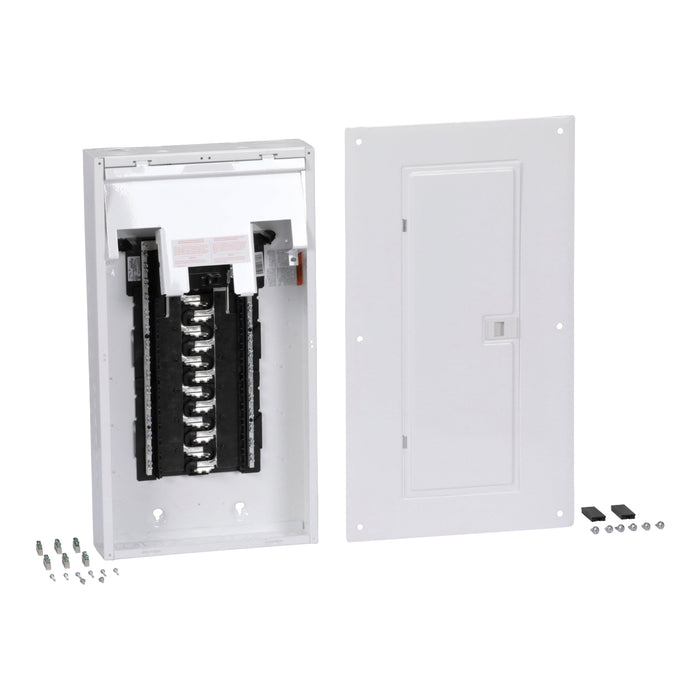

Schneider Electric 1Ph 100A 48Cct Se Mb Loadcentre

Description

CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a plug on neutral main circuit breaker that is rated at 100 A single phase. This CHOM load center provides a 22 kA breaking capacity. This system provides 24 spaces in a NEMA 1 enclosure. The electrical connections are lugs. A grounding bar is included but not installed. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. This HOM Homeline load center has a height of 26.04 inches, a width of 14.25 inches and depth of 3.75 inches. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.

Features

Fast installation, reliability, and superior circuit protection Protects against equipment overloads and short-circuits Shielded bus protects contractors Multiple breaker knockouts allow installation flexibility Distributed neutral bars keeps wiring tidy

Technical Information

Rated Current: 100 A Rated Operational Voltage: 120/240 V AC Ambient Air Temperature for Operation: -5 °C|40 °C AWG_gauge: 6 AWG...2/0 AWG aluminum/copper Box_number: 8 Cover_plate_colour_tint: white Cover_type: combination flush/surface cover Device_Composition: grounding bar included (not installed) Electrical_Connection: lugs Enclosure_material: welded sheet steel loadcentre_type: Main Breaker Mounting_mode: wall mount NEMA_Degree_of_Protection: NEMA 1 indoor) Network_number_of_phases: 1 phase Number_of_circuits: 48 Number_of_spaces: 24 Number_of_tandem_circuit_breakers: 24 Product_Certifications: CSA Product_or_Component_Type: Loadcentre Range_of_Product: Homeline Short_circuit_current: 22 kA Wiring_configuration: 3-wire
