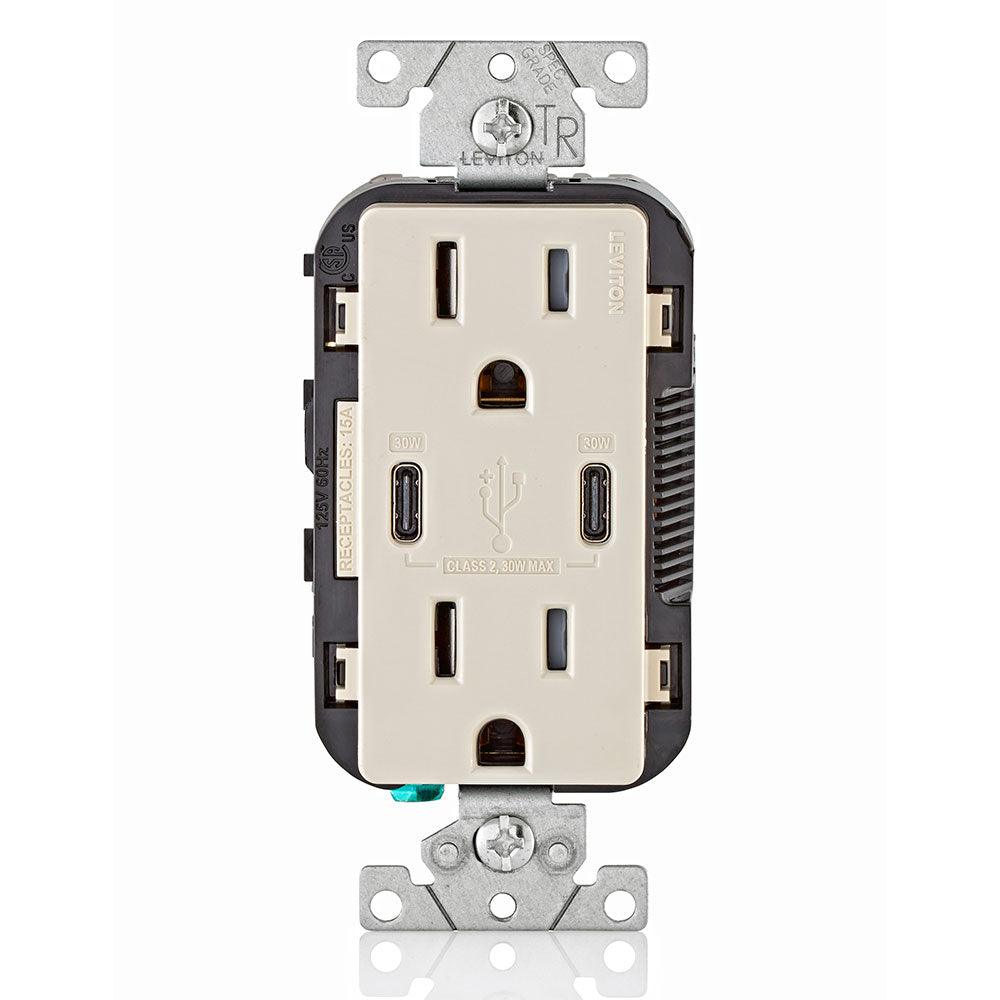

Leviton Type-C Dual USB Charger with 15A Tamper-Resistant Receptacle (Light Almond) Model T5635*

Description

This Leviton's combo USB Charger/Receptacle (Light Almond) is super convenient! No more searching for charging adapters. Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs. The two built-in high powered charging ports deliver a combined total of 30W charge on a single port.

Benefits

• The most advanced USB in-wall charger on the market with up to 2X the charging power with PD-enabled devices (No data transfer capability)
• Up to 30W charge when PD-enabled device connected to single port. Up to 15W charge per port (30W total) when both USB ports are connected to devices. Examples of maximum charging outputs are:
  • Single port connected to PD-enabled device: 15VDC@2A (30W) or 9VDC@3A (27W)
  • Single port connected to non-PD device: 5VDC@3A (15W)
  • Both ports connected to devices (PD or non-PD): 5VDC@3A each (up to 30W total)
• Charges most Type-C devices as well as Type A devices (adapter required)
• Shallowest profile on the market for ease of installation
• Smart chip recognizes and optimizes the charging requirements of individual devices
• Built-in overcurrent protection helps protect the electronics from receiving too much power, which can damage the device
• Internal thermo regulator prevents the electronics from overheating
• USB Ports tested to meet the industry requirement to withstand over 10,000 insertions
• Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
• Type-C USB Ports enable cables to be inserted in either direction
• Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects
• Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device.
• Compatible with Decora® wallplates and Decora Plus™ screwless wallplates
• Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more
• Compatible with Decora® wallplates and Decora Plus™ screwless wallplates.
• Wallplate sold separately
• No data transfer capability

Technical Data

Amperage: 15A
Other Colors Available: White, Black, Grey, Brown, Ivory, Light Almond
Grade: Residential/Commercial Specification Grade
NEMA: 5-15R
Product Type: Outlet/USB Combo
Type: Type C/C with PD Duplex Receptacle
Voltage: 125VAC
Wallplate: NOT INCLUDED

Documents

Dimensional Drawing

Instruction Sheet

Product Brochure

Product Bulletin

FAQs About Power Delivery

FAQs About USB Charger Devices
