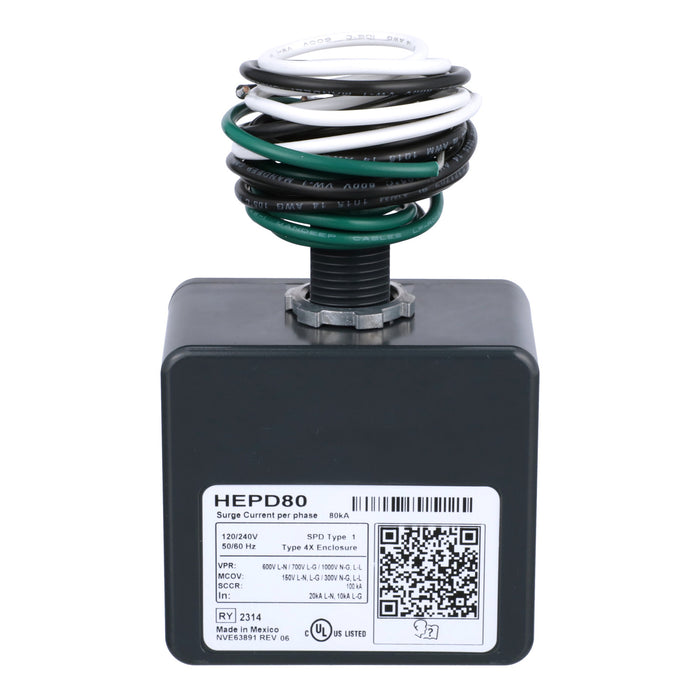

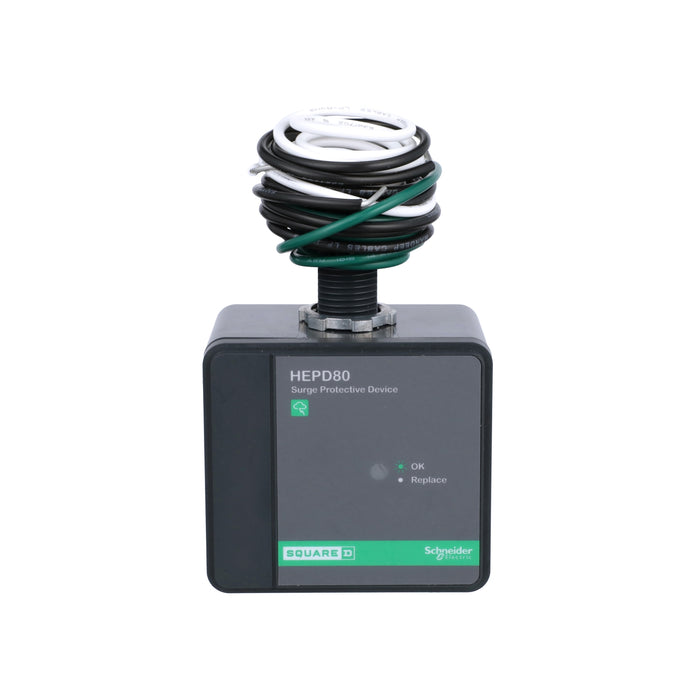

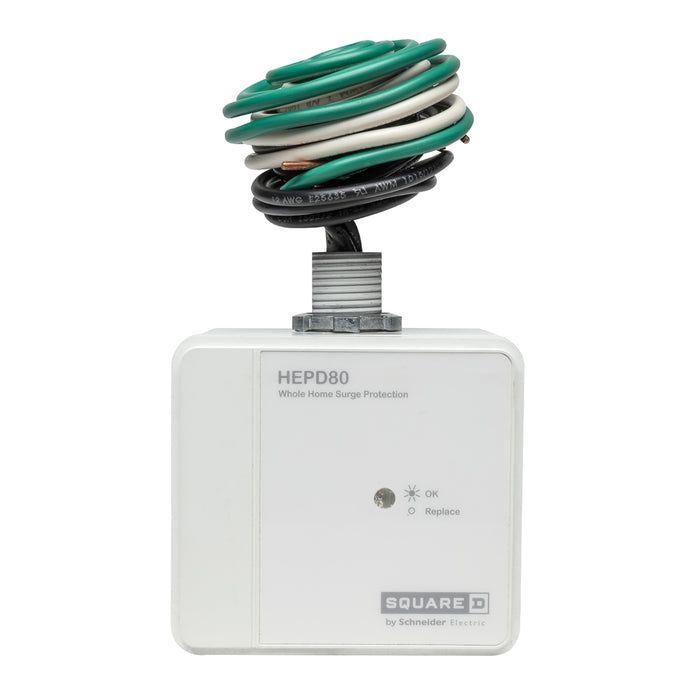

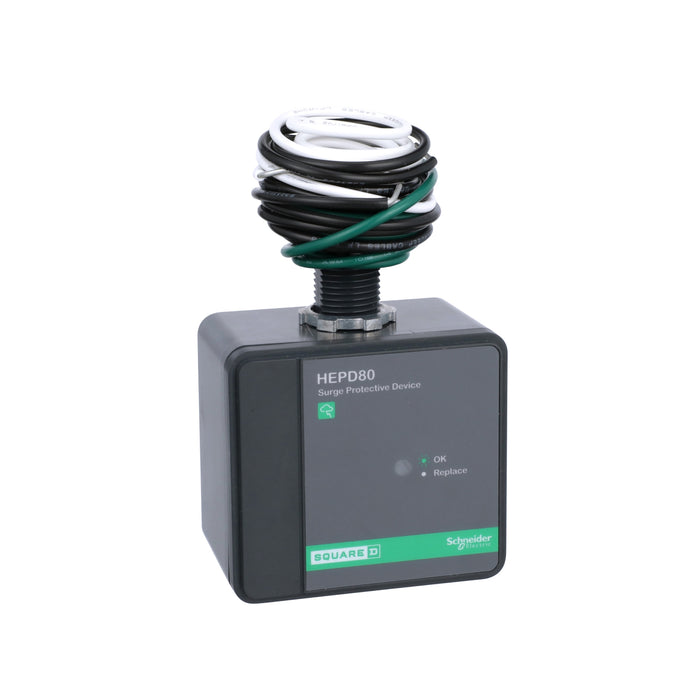

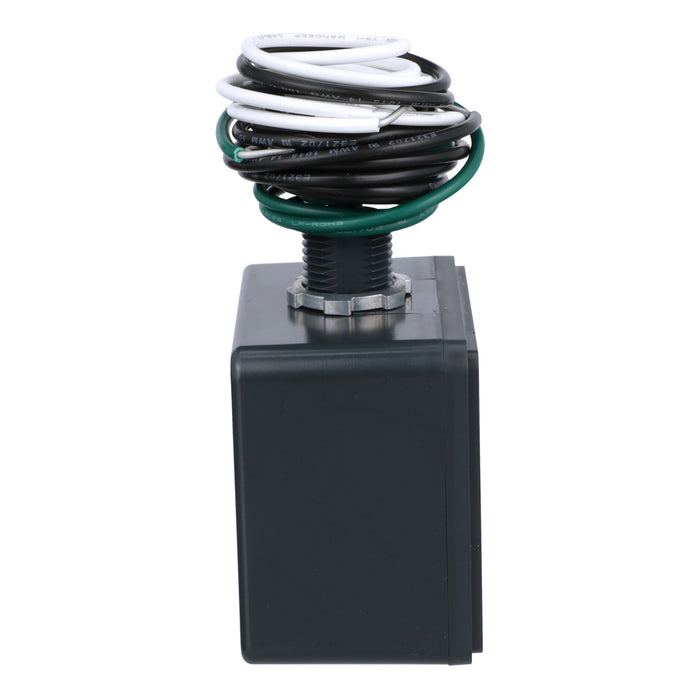

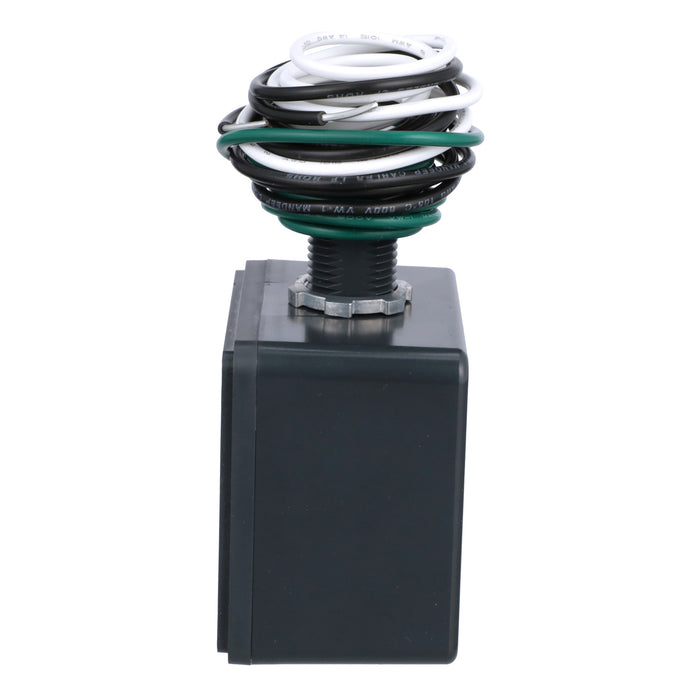

Square D Spd T1 Hepd 80Ka 120/240V1P3W

Description

HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 80 kA of surge protection per phase and comes in consumer package. The surge protection device is in a NEMA 4X housing. The surge protection device is 3.23 inches tall, 3.72 inches wide and 2.10 inches deep. The surge protection device is UL listed. This product comes with an 18 month warranty.

Features

Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1 Protects against accidental shocks through the use of touch-safe terminals Conforms to the electrical characteristics in the data sheet by UL

Technical Information

Rated Current: 10 kA Maximum Continuous Operating Voltage: 150 V Rated Operational Voltage: 120/240 V AC Ambient Air Temperature for Operation: -35-65 °C Cable_length: 34 in Power_Wiring_AWG: wire 14 AWG Length: 2.10 in Device_short_name: HEPD Enclosure_material: non-metallic Height: 3.23 in Input_voltage: 1000 V L - L|600 V L - G|600 V L-N|900 V N - G Local_signalling: 1 LED green normal operation|1 LED green off NEMA_Degree_of_Protection: NEMA 4X Network_number_of_phases: 1 phase Nominal_discharge_current: 10 kA Product_destination: load center Product_or_Component_Type: surge protection device Range_of_Product: Square D Short_circuit_protection: 25 kA|25 kA Surge_arrester_type: electrical distribution network Surge_current: 80 kA per phase Width: 3.72 in Wiring_configuration: 3-wire (isolated ground)
