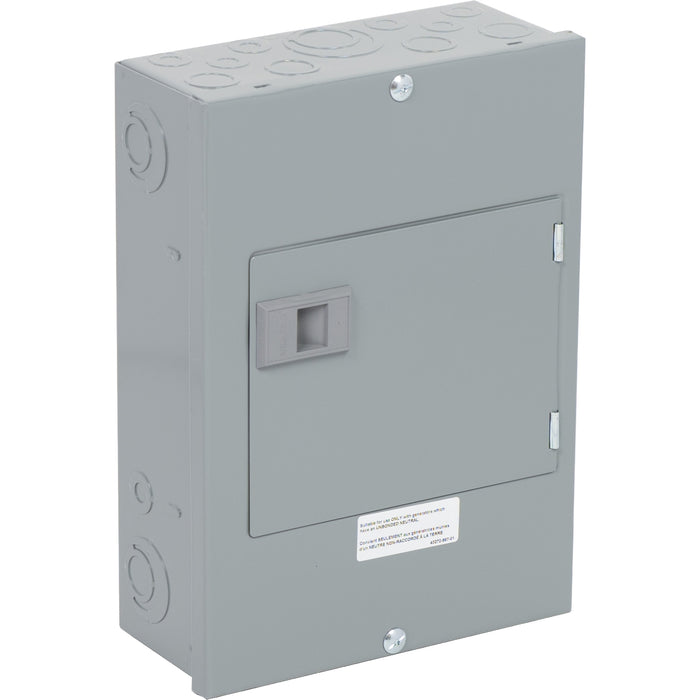

Square D 60A8Cct General Panel(Csa Approved)

Description

QO Loadcentres offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Loadcentres are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Loadcentres enable the use of a full complement of accessories. This 1 phase generator panel has 4 spaces and 8 circuits. This system provides 60A main breaker interlock in a NEMA 1 enclosure. It includes a surface cover door and is CSA rated.

Features

QO™ Generator Panels easily integrate back-up power sources into your electrical distribution system Has indoor and outdoor enclosure options available to provide flexibility The panel has a robust mechanical interlock to ensure system safety and reliability It complies CSA and UL standards

Technical Information

Rated Current: 60 A Rated Operational Voltage: 120/240 V AC Ambient Air Temperature for Operation: -5 °C|40 °C AWG_gauge: 8 AWG...2 AWG aluminum/copper Box_number: 4 Bus_rated_current: 60 A Cover_type: surface cover Length: 3.75 in Device_Composition: grounding bar (factory installed) Electrical_Connection: lugs Enclosure_material: welded sheet steel Height: 12.45 in Installation_direction: vertical loadcentre_type: Main Breaker NEMA_Degree_of_Protection: NEMA 1 indoor enclosure net_weight: 9.7 lbs Network_number_of_phases: 1 phase 3 wires Number_of_circuits: 4 Number_of_spaces: 4 Number_of_tandem_circuit_breakers: 8 Product_Certifications: cULus|CSA Product_or_Component_Type: panel Provided_Equipment: grounding bar Range_of_Product: QO Short_circuit_current: 22 kA Surface_finish: baked enamel grey Tightening_torque: cover 20 lb.in Width: 8.76 in
