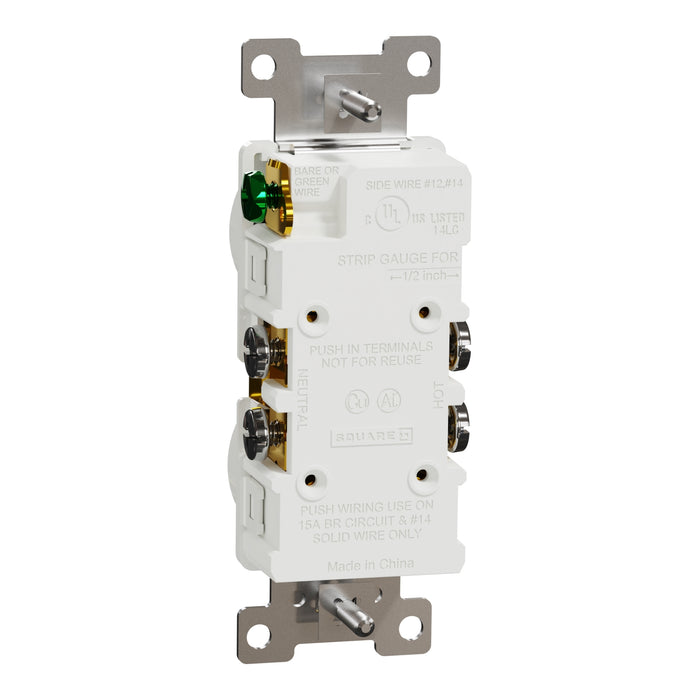

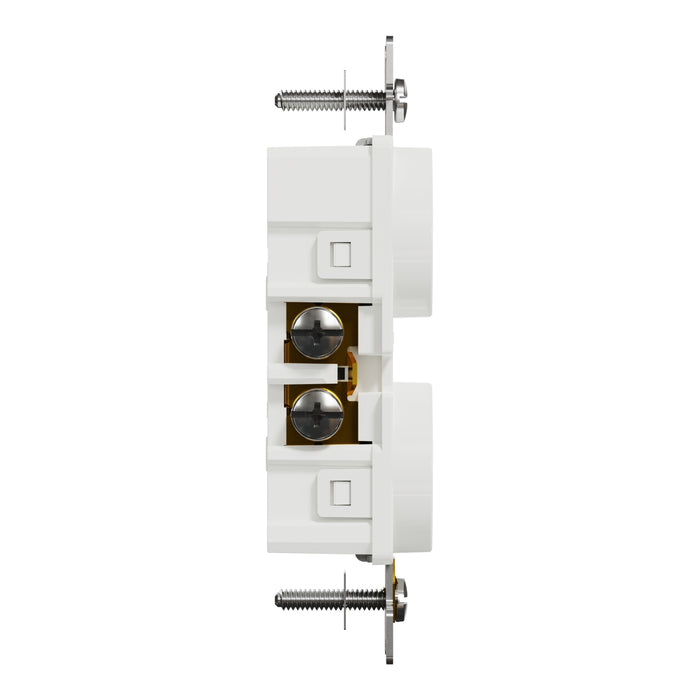

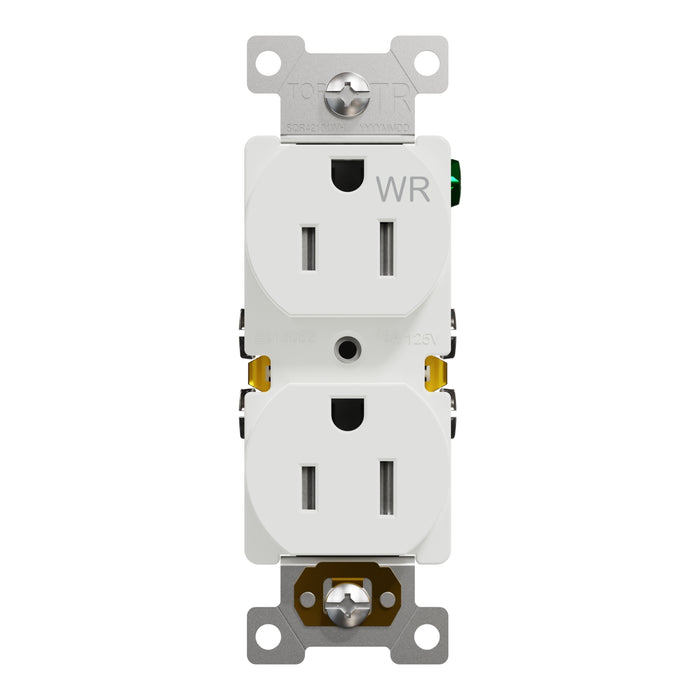

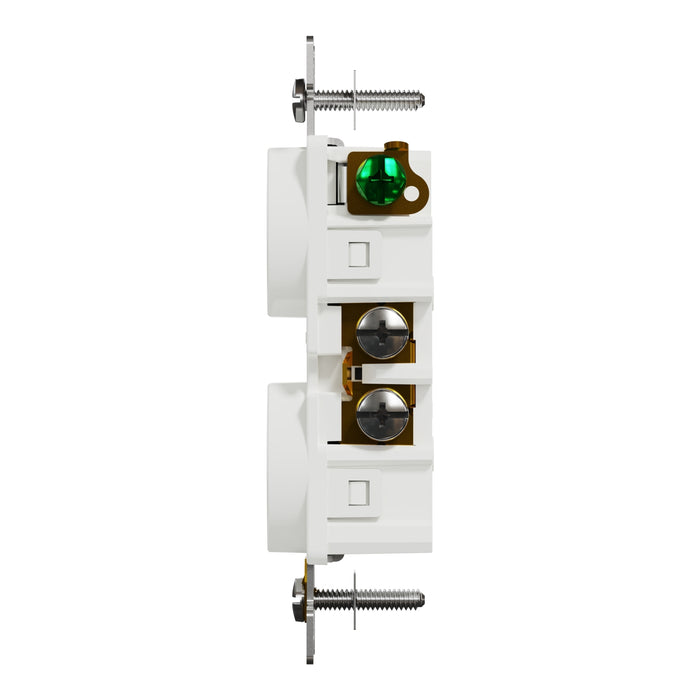

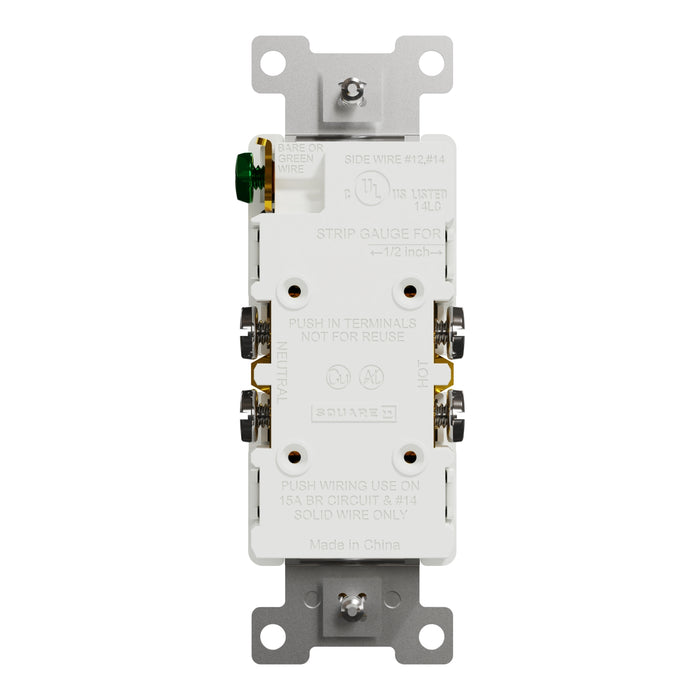

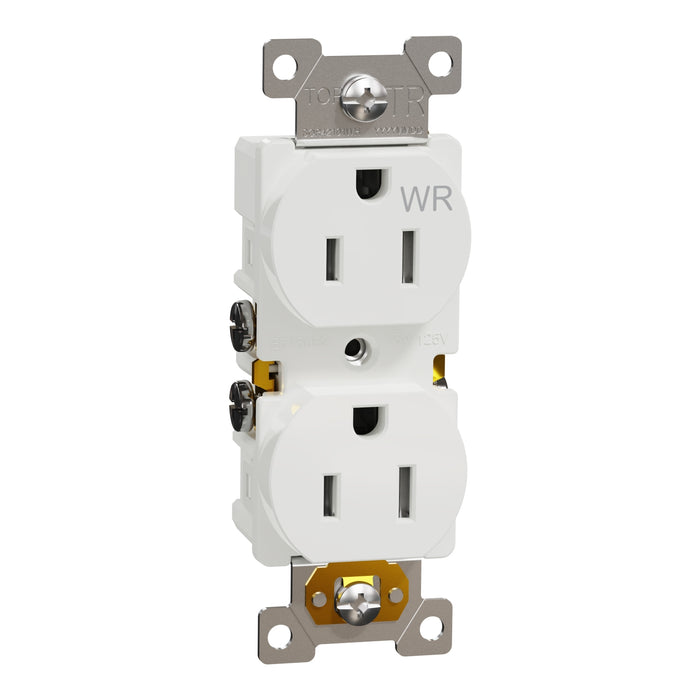

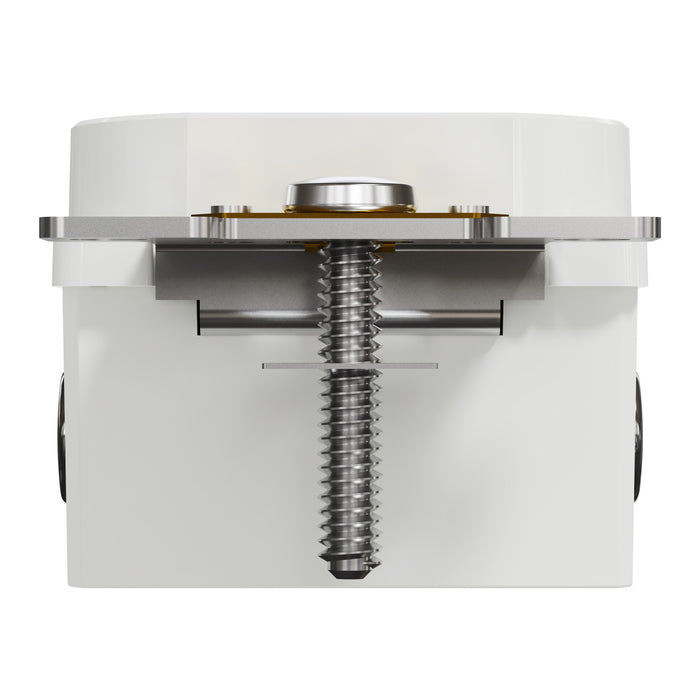

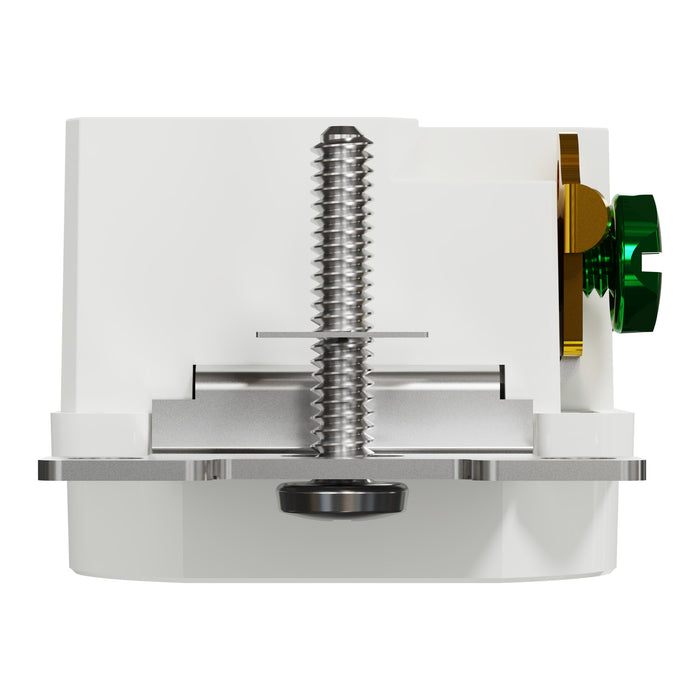

Schneider Electric Wr/Tr 15A Duplex Outlet Resi Wh

Description

The Square D X Series 15A 125V Outdoor Tamper Resistant Duplex Receptacle provides a fast, safe way to update the look of your home's interior with new, modern receptacles. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices. Elevate safety with discrete, tamper resistant shutters that help keep inappropriate objects out of the socket. Enjoy fast wiring with push-in terminals and a self-grounding clip. Its Ue rated operational voltage is 125VAC. Its Ie rated operational current is 15A. The color of this device is white with a matte surface finish.

Features

X Series 15A Weather Resistant Duplex Outlet Tamper and weather resistant ideal in wet locations Residential grade, ideal for areas where outlets are not in constant use Includes tamper-resistant shutters

Technical Information

Rated Operational Current AC: 15 A Rated Operational Voltage: 125 V Body_type: standard Colour: white Power_Wiring_AWG: earth 1 screw terminal copper|phase and neutral 4 push-in termination 14 AWG), solid copper|phase and neutral 4 screw terminal 14 AWG...12 AWG) copper Length: 1.06 in Device_application: power supply Device_mounting: flush Device_presentation: mechanism with fixing frame Earth_circuit: self earthing Height: 4.06 in Market_segment: residential Mounting_mode: by screws Network_frequency: 60 Hz Network_type: AC Number_of_gangs: 1 gang Number_of_modules: 1 Outlet_poles_configuration: 2P + E Outlet_standard: NEMA Product_Certifications: cULus Product_or_Component_Type: socket-outlet Quantity_per_set: 1 piece Range: Square D X Series Socket_additional_information: tamper resistant Socket_number: 2 Surface_finish: matt Rated Operational Voltage 2: 125 V Width: 1.46 in
