Schneider Electric Usb A/C 5.4A Chargr Tr Duplx 15A Recp Wh

Description

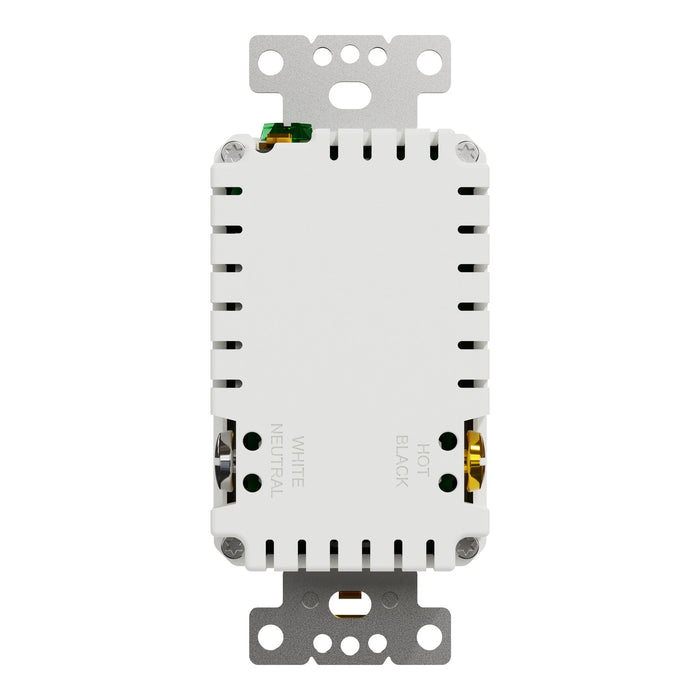

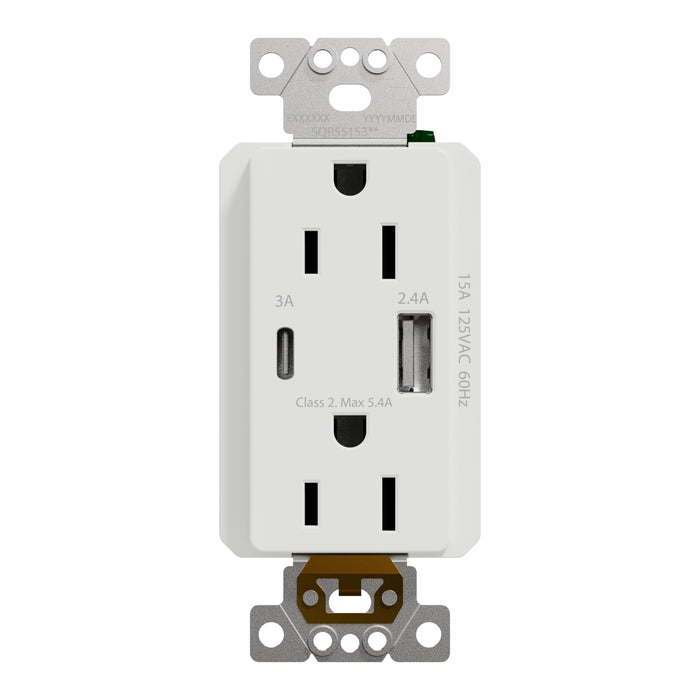

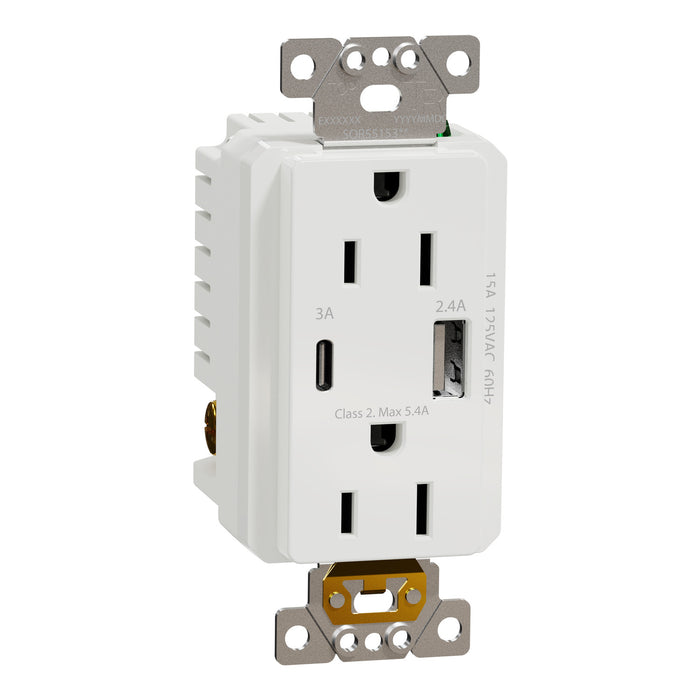

The Square D X Series USB A/C Duplex Decorator Tamper Resistant Outlet with back wire clamps combines a traditional receptacle with modern USB-A and USB-C charging into a single receptacle. Users can plug 2 USB cables and 2 power cords at the same time for applications where power density is important. This device supports 5 volts DC and up to 2.4A for USB A port and 3A USB C port (5.4A total) to quickly charge modern electronic devices. The mechanism with fixing frame belongs to X Series aesthetic group. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. Wiring and installation is fast and easy with back wire pressure plate and ground screw pressure plate. It is tamper resistant with invisible black shutters and it features protective painted surface treatment. This USB receptacle benefits from an elegant matt finishing, constituting an added-value for your interior design. It has a width of 44 mm, a height of 103 mm and a depth of 45 mm. This device supports up to 2.4A for USB A port and 3A USB C port (5.4A total) to quickly charge modern electronic devices. The dimensions are (W) 44mm x (H) 103mm x (D) 45mm. This device is white with matte surface finish. Use both USB-A and USB-C ports to charge two devices at the same, adding time-saving convenience to your home. This device is compliant with UL 1310, UL 498 standard and cULus certification.

Features

Charge two devices at once with USB Outlets type A and type C ports Child-safe design, with tamper-resistant shutters Sold individually Wall plate required, sold separately

Technical Information

Rated Operational Voltage: 125 V Colour: white Power_Wiring_AWG: earth 1 screw terminal|phase and neutral 2 screw terminal Length: 1.73 in Device_application: power supply Device_mounting: flush Device_presentation: mechanism with fixing frame Earth_circuit: self earthing Height: 4.06 in Integrated_connection_type: 1 USB type A 2.4 A|1 USB type C 3 A|2 socket-outlet 15 A Market_segment: commercial Mounting_mode: by screws Network_frequency: 60 Hz Network_type: AC Number_of_gangs: 1 gang Number_of_modules: 1 Outlet_poles_configuration: 2 x 2P + E Outlet_standard: NEMA Product_Certifications: cULus Product_or_Component_Type: socket-outlet with USB charger Quantity_per_set: 1 piece Range: Square D X Series Socket_additional_information: tamper resistant Surface_finish: matt Rated Operational Voltage 2: 125 V Width: 1.73 in
