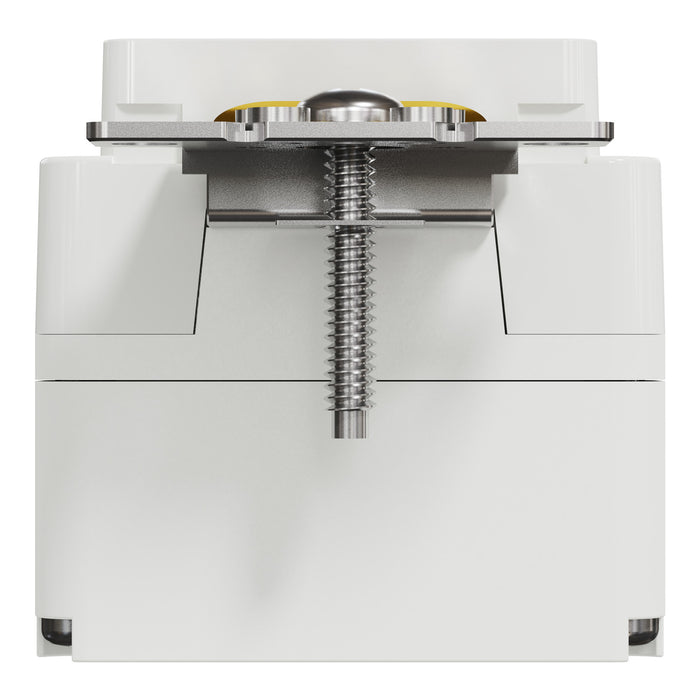

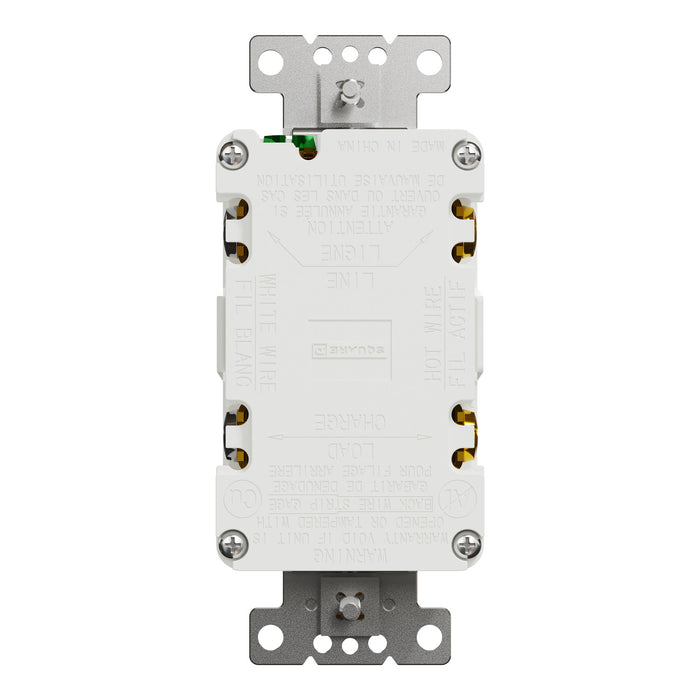

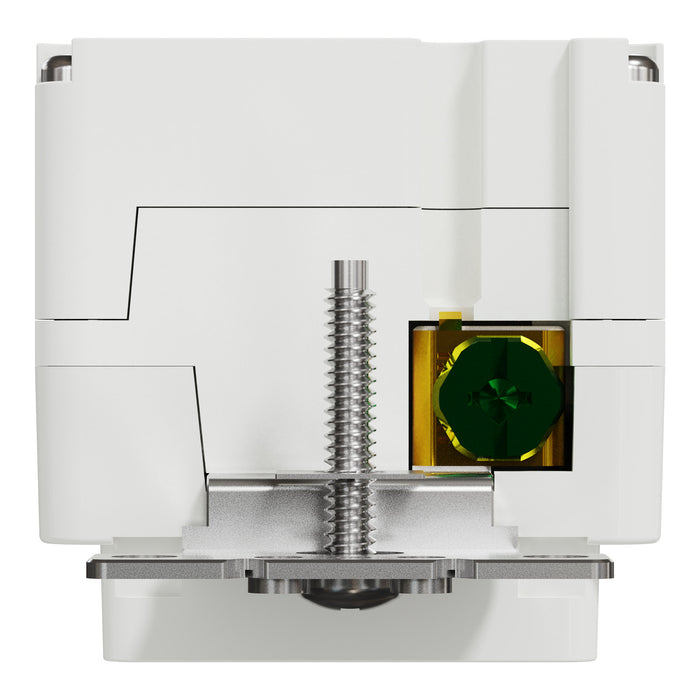

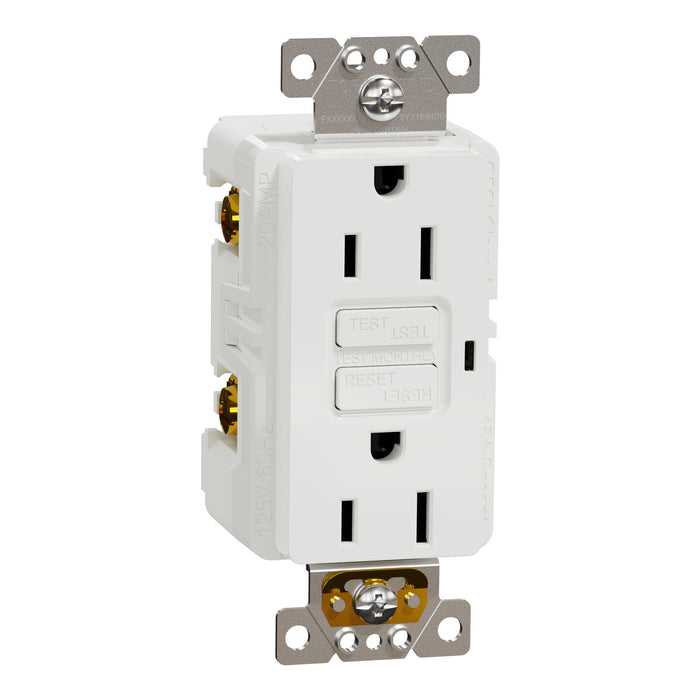

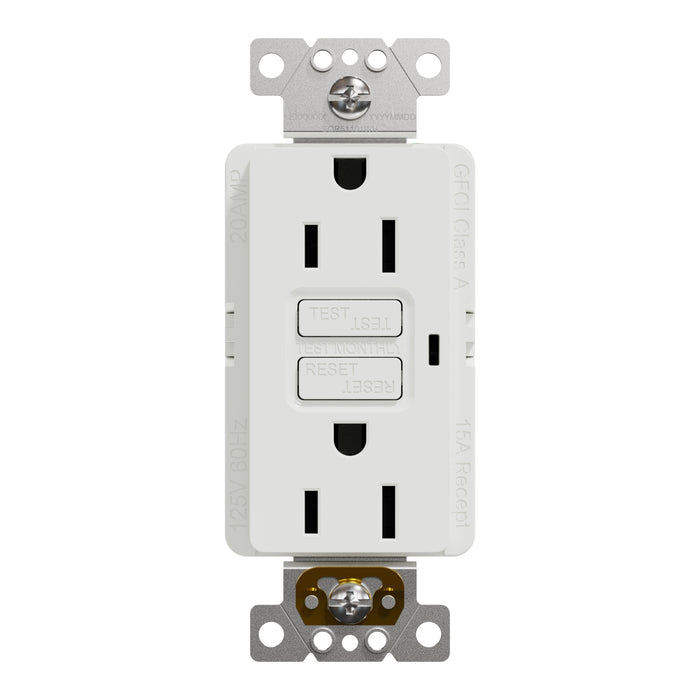

Schneider Electric Tr Gfci 15A Receptacle Resi Wh

Description

The Square D X Series 15A 125V Tamper Resistant GFCI Duplex Decorator Receptacle with Back Wire Clamps provides enhanced safety for kitchen and bathrooms. This outlet socket has a 15A current rating. The rated operational voltage of this device is 120 VAC. Each outlet socket unit has two outlet sockets and is used to supply power. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look in your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. With discrete, tamper-resistant black shutters and auto-monitoring testing, it's ready to protect your devices. This receptacle is tamper resistant with discrete black shutters. This socket outlet has a white frame. The self-grounding feature is a brass ground contact which provides ground retention to metal boxes that eliminates the need to use a ground screw. The rated operational voltage of this dimmer is 120V and rated current 15A. By satisfying the ICES-003, UL 498, UL 943 standards, this socket outlet is cULus certified. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices. The dimensions are (W) 42mm (1.65in) x (H) 103mm (4.06in) x (D) 41mm (1.61in). Its made of impact resistant thermoplastic material and its easy to clean. This device is compliant with ICES-003, UL 498, UL 943 standard and cULus certification.

Features

Self-testing GFCI outlet for kitchen and bathroom safety Child-safe design, with tamper-resistant shutters Sold individually Wall plate required, sold separately

Technical Information

Rated Operational Current AC: 15 A Rated Operational Voltage: 125 V Body_type: decorator Colour: white Power_Wiring_AWG: earth 1 screw terminal copper|phase and neutral 4 screw terminal copper Length: 1.61 in Device_application: power supply Device_mounting: flush Device_presentation: mechanism with fixing frame Earth_circuit: self earthing Height: 4.06 in Market_segment: residential Mounting_mode: by screws Network_frequency: 60 Hz Network_type: AC Number_of_gangs: 1 gang Number_of_modules: 1 Outlet_poles_configuration: 2P + E Outlet_standard: NEMA Product_Certifications: cULus Product_or_Component_Type: socket-outlet Protection_type: GFCI Quantity_per_set: 1 piece Range: Square D X Series Socket_additional_information: tamper resistant Socket_number: 2 Surface_finish: matt Rated Operational Voltage 2: 125 V Width: 1.65 in
