Schneider Electric Rckr Dual-Ld Dim. 600W Resi Sngl Pol Wh

Description

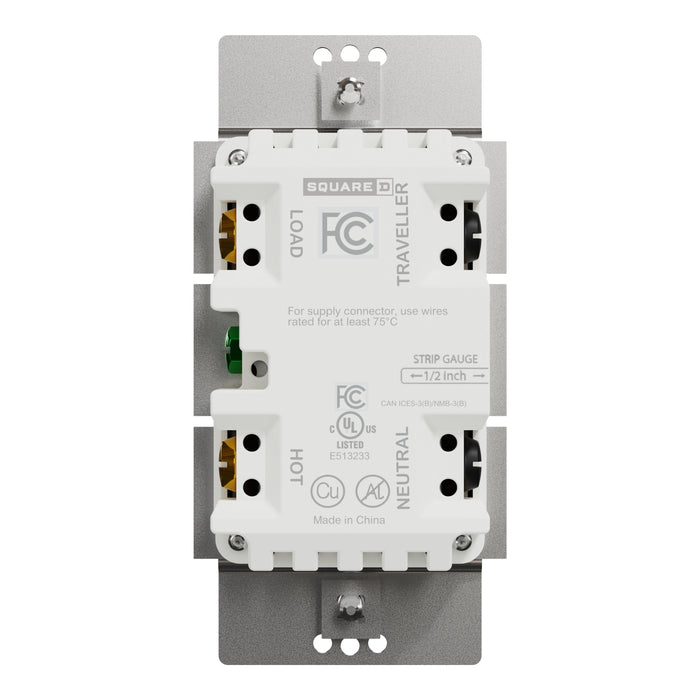

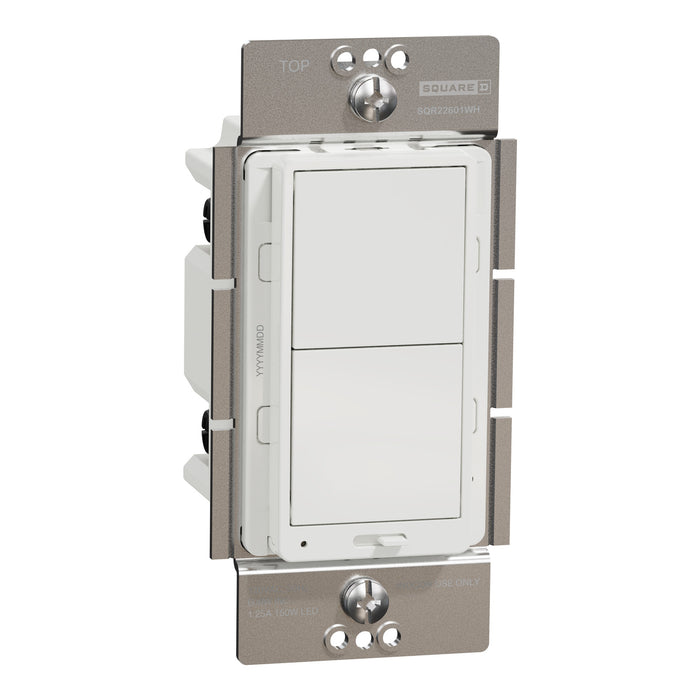

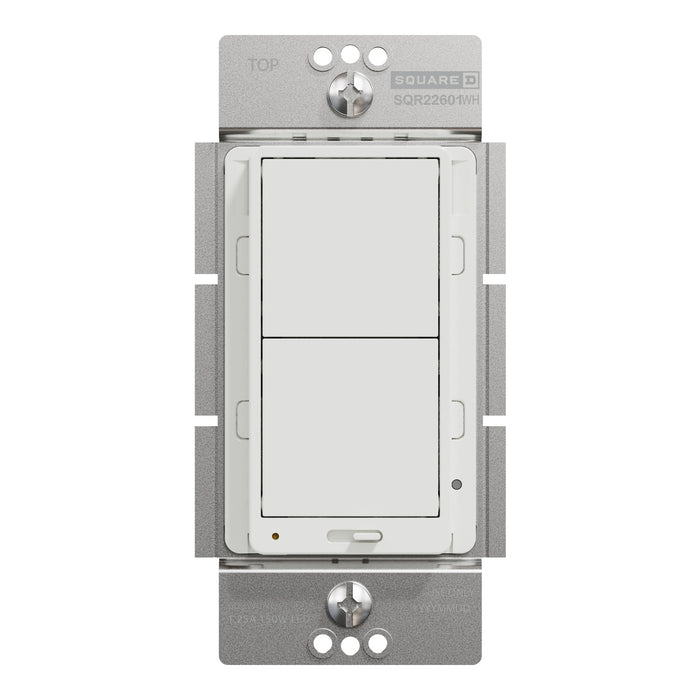

The Square D X Series 15A 600W Single-Pole/3-way Rocker Dimmer refreshes a room with modern design. The rated operational voltage of this dimmer is 120V. The mechanism with fixing frame belongs to X Series aesthetic group. The connection are screw terminal. Enjoy the easy-to-use dimming to create the right lighting scene and to reduce your energy usage. It eliminates near-off flickering on LED lights. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. It features protective painted surface treatment. This dimmer benefits from an elegant matt finishing, constituting an added value for your interior design. This dimmer has a width of 51 mm, a height of 104 mm and a depth of 47 mm. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. This device has load of 600W ideal for controlling incandescent and halogen bulbs. It has load of 150W for compact fluorescent and LED lamps. This device enables flush mounting. This device is white with matte surface finish, easy installations and easy-to-clean. This device is compliant with UL and cULus certification.

Features

For incandescent and halogen bulbs up to 600W Eliminates flickering on LED lights Sold individually Wall plate required, sold separately

Technical Information

Rated Operational Current AC: 15 A Rated Operational Voltage: 120 V Actuator: rocker Colour_tint: white Power_Wiring_AWG: earth 1 screw terminal copper|phase and neutral 4 screw terminal copper Length: 1.85 in Device_application: control Device_mounting: flush Device_presentation: mechanism with fixing frame Height: 4.09 in Load_type: dimmable LED 0...150 W|halogen 0...600 W|incandescent 0...600 W Main_colour_tint: white Market_segment: residential Mounting_mode: by screws Network_frequency: 60 Hz Network_type: AC Number_of_gangs: 1 gang Number_of_poles: 1 Product_Certifications: cULus Product_or_Component_Type: dimmer Quantity_per_set: 1 piece Range: Square D X Series Surface_finish: matt Rated Operational Voltage 2: 120 V Width: 2.01 in
