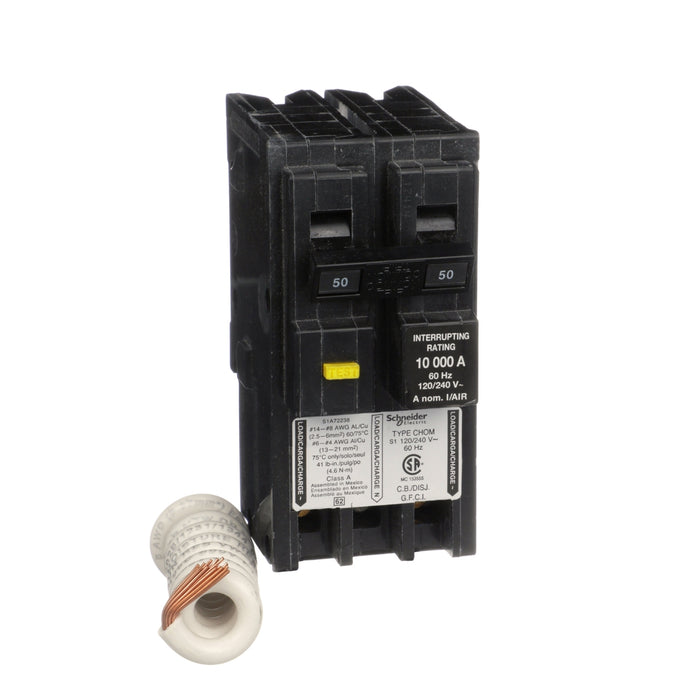

Schneider Electric Miniature Circuit Breaker 120V 50A

Description

CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240VAC. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. It includes a ground fault interrupt already installed. CHOM Homeline miniature circuit breakers are CSA certified. Enclosure is sheet steel with wrap around thermoplastic cover for convenience of wiring.

Features

Homeline™ Circuit Breakers are apart of the Square D™ making them compatible with Homeline™ electrical panels and CSEDs Designed to protect against equipment overloads and short-circuits For residential and commercial use Product characteristics conformity is certified by the Underwriters Laboratories (UL)

Technical Information

Rated Current: 50 A Rated Operational Voltage: 120/240 V AC Ambient Air Temperature for Operation: 40 °C AWG_gauge: 12 AWG...4 AWG aluminum/copper Circuit_breaker_application: HACR rated Circuit_breaker_type: ground fault protecting class A 5 mA Electrical_Connection: screw clamp terminals Mounting_mode: plug-on Number_of_spaces_required: 2 Poles_description: 2P Product_Certifications: CSA Product_or_Component_Type: miniature circuit-breaker Range_of_Product: Homeline Short_circuit_current: 10 kA
