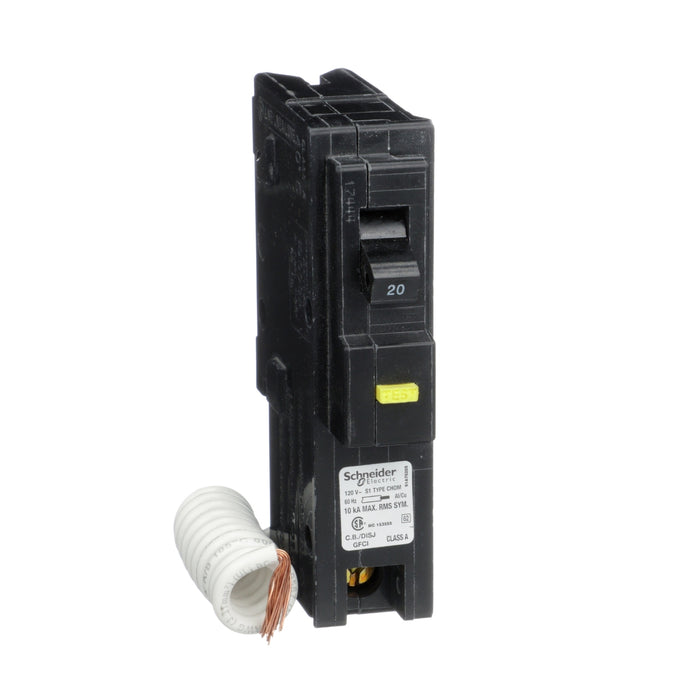

Schneider Electric Miniature Circuit Breaker 120V 20A Chom120Gfi

Description

Homeline® miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120 VAC. HOM breakers provide 10 kA breaking capacity. 0 Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1. inch and depth of 2.98 inches. CHOM Homeline miniature circuit breakers are CSA certified.

Features

Homeline™ Circuit Breakers are apart of the Square D™ making them compatible with Homeline™ electrical panels and CSEDs Designed to protect against equipment overloads and short-circuits For residential and commercial use Product characteristics conformity is certified by the Underwriters Laboratories (UL)

Technical Information

Rated Current: 20 A Rated Operational Voltage: 120/240 V AC Ambient Air Temperature for Operation: 40 °C AWG_gauge: 14 AWG...10 AWG aluminum/copper Circuit_breaker_application: HACR rated Circuit_breaker_type: ground fault protecting class A 6 mA Electrical_Connection: screw clamp terminals Mounting_mode: plug-on Number_of_spaces_required: 1 Poles_description: 1P Product_Certifications: CSA Product_or_Component_Type: miniature circuit-breaker Range_of_Product: Homeline Short_circuit_current: 10 kA
