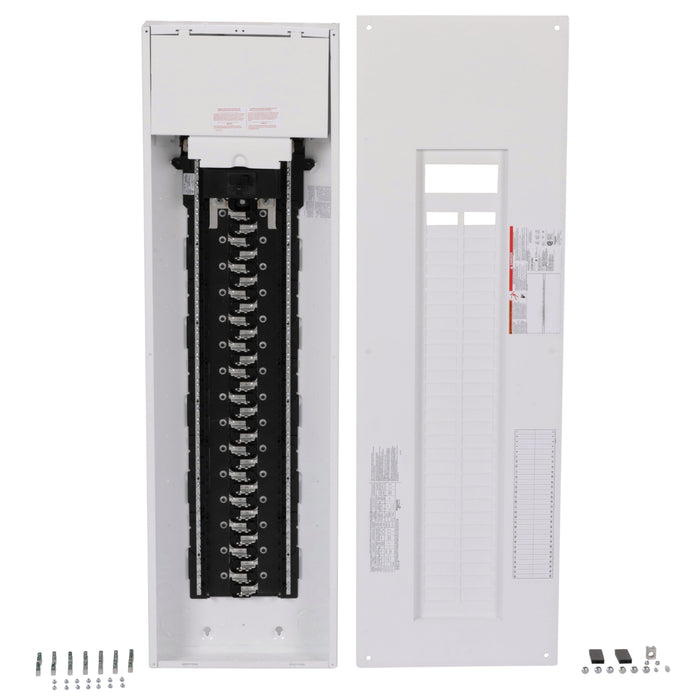

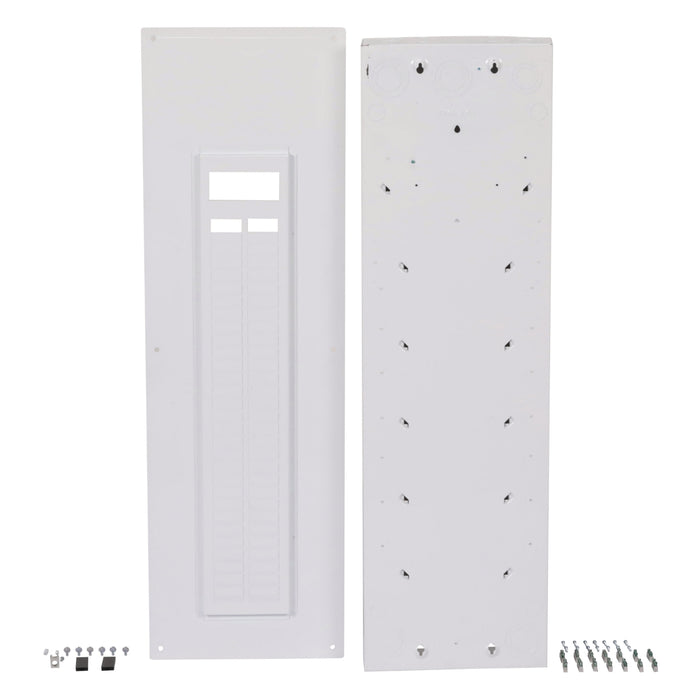

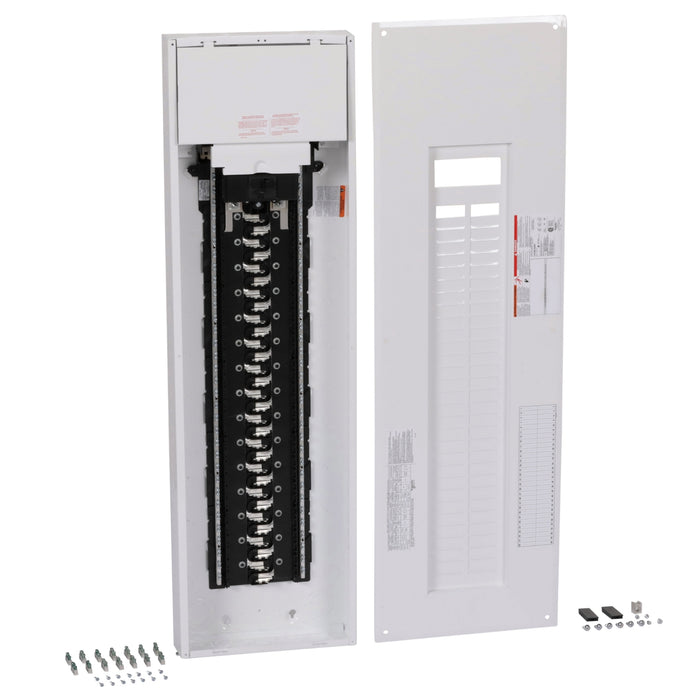

Schneider Electric 1Ph 225A 120Cct Se Mb Loadcentre

Description

CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a main circuit breaker that is rated at 200A single phase. This CHOM load center provides a 22kA breaking capacity. This system provides 60 spaces in a NEMA 1 enclosure. A grounding bar is included but not installed. The box lugs will accept a wire range of 4 AWG to 250kcmil copper or aluminum wire. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified. The combination flush surface cover is painted white. Does not include a CHOMDK602 door.

Features

Fast installation, reliability, and superior circuit protection Protects against equipment overloads and short-circuits Shielded bus protects contractors Multiple breaker knockouts allow installation flexibility Distributed neutral bars keeps wiring tidy

Technical Information

Rated Current: 200 A Rated Operational Voltage: 120/240 V AC Ambient Air Temperature for Operation: -5 °C|40 °C AWG_gauge: 4 AWG...250 kcmil aluminum/copper Cover_plate_colour_tint: white Cover_type: combination flush/surface cover Device_Composition: grounding bar included (not installed) Electrical_Connection: lugs Enclosure_material: welded sheet steel loadcentre_type: Main Breaker Mounting_mode: wall mount NEMA_Degree_of_Protection: NEMA 1 indoor) Network_number_of_phases: 1 phase Number_of_circuits: 120 Number_of_spaces: 60 Number_of_tandem_circuit_breakers: 60 Product_Certifications: CSA Product_or_Component_Type: Loadcentre Range_of_Product: Homeline Short_circuit_current: 22 kA Wiring_configuration: 3-wire
