Leviton Decora Smart 50 Amp 24-Hour Indoor/Outdoor High Current Electronic Programmable Smart Timer Switch, Metal, D2HCS-DLG

Description

Leviton's Decora Smart Wi-Fi High Current Switch is the ideal solution for remote control, scheduling, and energy management of electric water heaters, pool or spa pumps, pond and well pumps, fans, lighting, and more, with support for loads up to 50A. Easily replace traditional timers with a smart solution to create schedules, monitor and track energy consumption, get notified of unusual energy usage, and save on electricity costs. Connect to your smart home platform of choice - your High Current Switch works with the My Leviton app, Matter, Amazon Alexa, Google Home, Apple Home, SmartThings, and more.

Features

Replace traditional timers for remote control, scheduling, and energy management of electric water heaters, pool or spa pumps, pond and well pumps, fans, lighting, and more
Create schedules, monitor and track energy consumption, get notified of unusual energy usage, and save on electricity costs
Quick setup over Bluetooth with the My Leviton app or connect to Wi-Fi to enable full smart features
Works with all Matter enabled smart devices and Matter certified smart home platforms

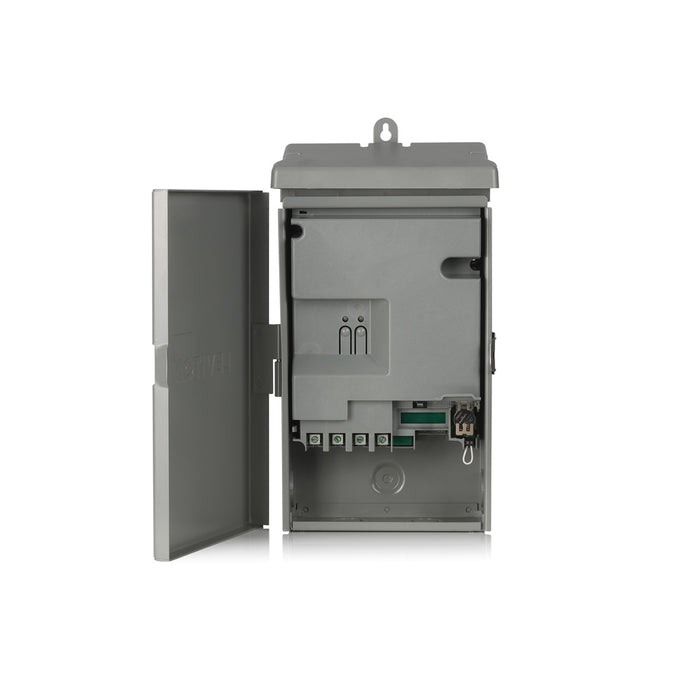

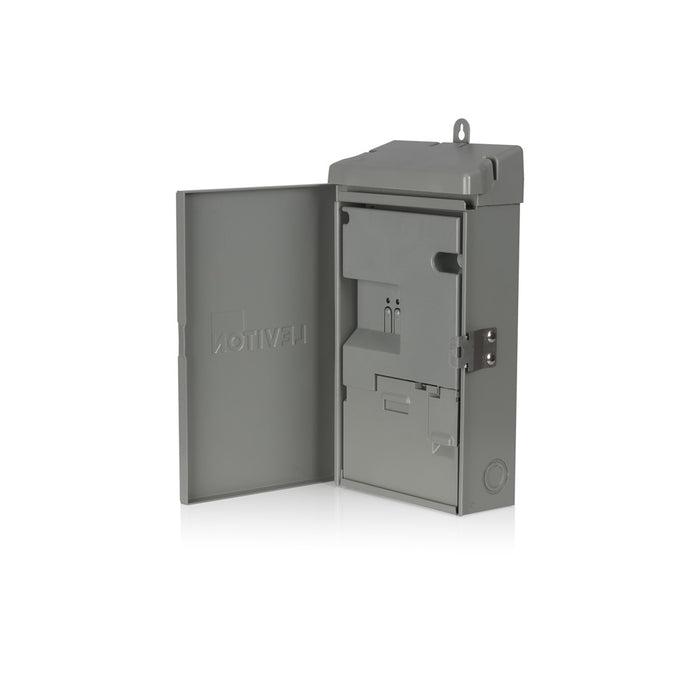

For indoor or outdoor use, NEMA 3R enclosure protects from water splashes, rain, snow, sleet, and corrosion and includes knock-outs for easy wiring, latching door, and mounting bracket
Onboard clock maintains schedules for a minimum of 72 hours in the event of a power outage
Optional Dry Contact Input allows control from an external Power Control System
Voice control works with Apple Siri, Amazon Alexa, or Google Assistant
Pairs with up to three Anywhere Switch Companions (DAWSC) for wire-free wall-mount control

Benefits

SMART CONTROL: For electric water heaters, pumps, fans, lights
ENERGY MONITORING: Track usage, set schedules, save energy
QUICK SETUP: Schedule with Bluetooth, smart control with Wi-Fi

Specifications

Electrical Specifications:
Load Rating: 120/208/240/277 VAC, 60Hz
Motor: 3HP, 120VAC; 5HP, 208/240 VAC
Neutral Required: Yes for 120V installs
Resistive: 50A
Termination: Terminal screw torque: #4-#8AWG:40 lbf-in; #10-#14AWG:20 lbf-in
Material Specifications:
Color: Gray
Material: Metal
Operating Temperature: -22degF to 122degF (-30degC to 50degC)
Warranty: 1-Year Limited
Timer Type: Digital
Dimensions:
Height: 14.87 in.
Width: 7.96 in.
Depth: 4.32 in.
