Liteline 4" SlimLED Plus, Adjustable Color Temperature, White Trim, Model SLM4-12W-CCT-WHBK

Description

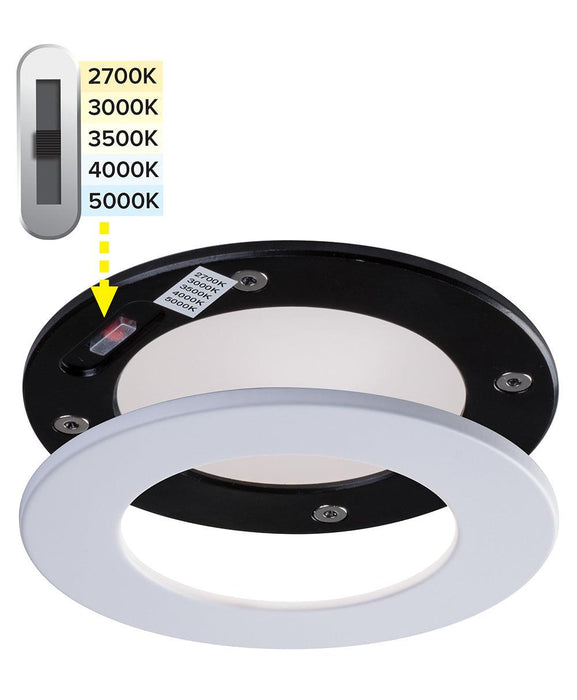

The SlimLED you know and love is now available with a 5-position CCT selectable switch. Adjustable from below the ceiling, simply remove the faceplate, select your color temperature, then magnetically snap on one of the trim options.

Features

• Durable airtight aluminum body with UV stable paint and white PMMA diffuser lens for low glare.
• Includes silicone gasket for wet location applications
• Includes White magnetic trims
• This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 750 lumens, with a typical CRI of 90.
• Available with 5 step CCT switch (2700 K, 3000 K, 3500 K, 4000 K and 5000K)
• 100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers
• Lens provides 110° beam spread
• Includes two spring loaded clips to attached to any ceiling material. The slim profile allows to be mounted under joists or duct work
• Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" plenum rated FT6 wire with DC 2.1 connector from driver to fixture
• "Quick connect" push-in terminals for fast and easy wiring
• Operating Temperature from -30°C to 40°C (-22°F to 104°F)
• Suitable for wet locations
• Suitable for insulated ceiling applications

Technical Information

Application: Ceiling Recessed Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 110°
CCT (Selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification: cETLus
Color: White
CRI: 90
Dimming: Yes
Dimming Tech: Forward/Reverse phase / TRIAC/ELV
Energy Star: Yes
Hole Cut: Ø 4¼ " (108mm)
Input: 100-135V AC, 60Hz
LM79: Yes
LM80: Yes
Lumens: Up to 750
Lumens per Watt: Up to 74
Power Factor: 0.9
Projected Life: 70% @ 50,000 hrs
Warranty: Lifetime
Wattage: 12W
